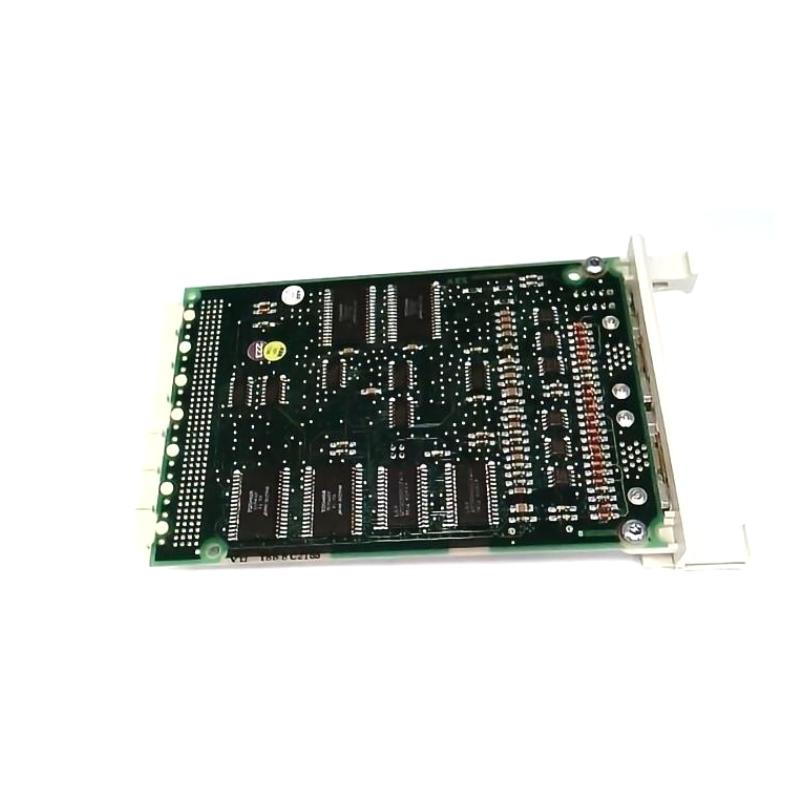

ABB CI522 3BSE012790R1 Communication Module Brand New Original

Applications

• Machine Automation – Connects sensors and actuators with centralized controllers for real-time coordination.

• Process Control – Integrates distributed control devices for efficient operation of manufacturing or process systems.

• Distributed Control Systems (DCS) – Ensures reliable communication between remote modules.

• Energy Management – Interfaces power and utility devices with central control units for monitoring and optimization.

Advantages

• Reliable Industrial Communication – RS‑485 connectivity ensures stable and accurate data transfer.

• Status Feedback – LEDs provide immediate operational status and fault indication.

• Compact and Flexible Design – Fits standard DIN rail or submodule carriers, conserving panel space.

• Low Power Consumption – Efficient design minimizes heat and electrical load.

• Robust Performance – Designed to withstand industrial environments with temperature variation and vibration.

• Scalable Integration – Supports modular expansion in distributed automation systems.

Technical FAQs

1. What type of module is the ABB CI522?
   It is a communication interface module for ABB automation networks.

2. Which controllers is it compatible with?
   Primarily Advant Controller 400 and 500 series.

3. How many communication ports does it have?
   Two RS‑485 bus connections.

4. What voltage levels does it require?
   +5 V and +24 V.

5. How is the operational status indicated?
   Run (green) and Fault (red) LEDs.

6. What is the module’s power consumption?
   3.7 W (+5 V) and 2 × 2.5 W (+24 V).

7. Which connector type is used for the bus?
   9-pin D-sub female.

8. Where is the CI522 mounted?
   On DIN rail or submodule carrier inside control cabinets.

9. Is it suitable for industrial environments?
   Yes, operating temperature ranges from −10 °C to +60 °C.

10. Can it integrate with other ABB modules?
    Yes, fully compatible with Advant series modules for distributed control setups.
