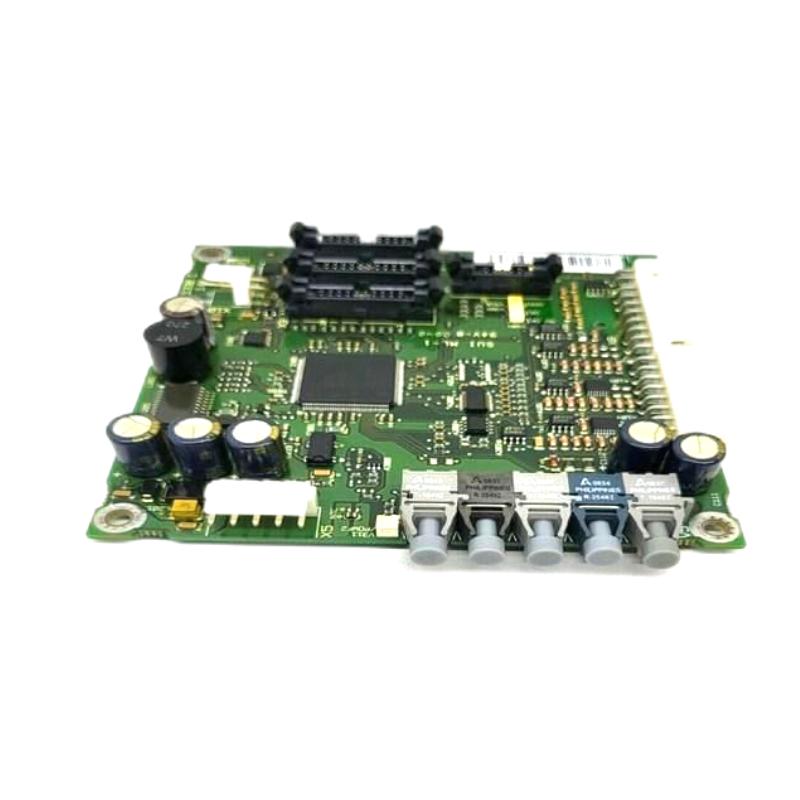

The ABB CI525 is a robust communication module designed to facilitate seamless connectivity in industrial automation networks. Built for Advant Controller series, the CI525 ensures reliable data exchange between controllers and distributed I/O or field devices. Its compact design, intuitive diagnostics, and industrial-grade performance make it ideal for process automation, machine control, and energy management applications. This module enhances system efficiency, reduces downtime, and enables smooth communication in complex automation environments.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | ABB CI525 |
| Module Type | Communication Module |
| Compatible Series | Advant Controller 400 / 500 Series |
| Communication Ports | 2 × RS‑485 Bus Connections |
| Connector Type | 9-pin D-sub Female |
| Output Voltage | RS‑485, GND, 24 V |
| Maximum Output Current | 60 mA |
| Input Impedance | 12 kΩ |
| Supply Voltage | +5 V and +24 V |
| Power Consumption | 3.7 W (+5 V) + 2 × 2.5 W (+24 V) |
| Operating Temperature | −10 °C to +60 °C |
| Status Indicators | Run and Fault LEDs |
| Mounting Type | DIN Rail or Submodule Carrier |
| Dimensions (L×W×H) | 95 mm × 100 mm × 45 mm |
| Weight | 0.17 kg |
