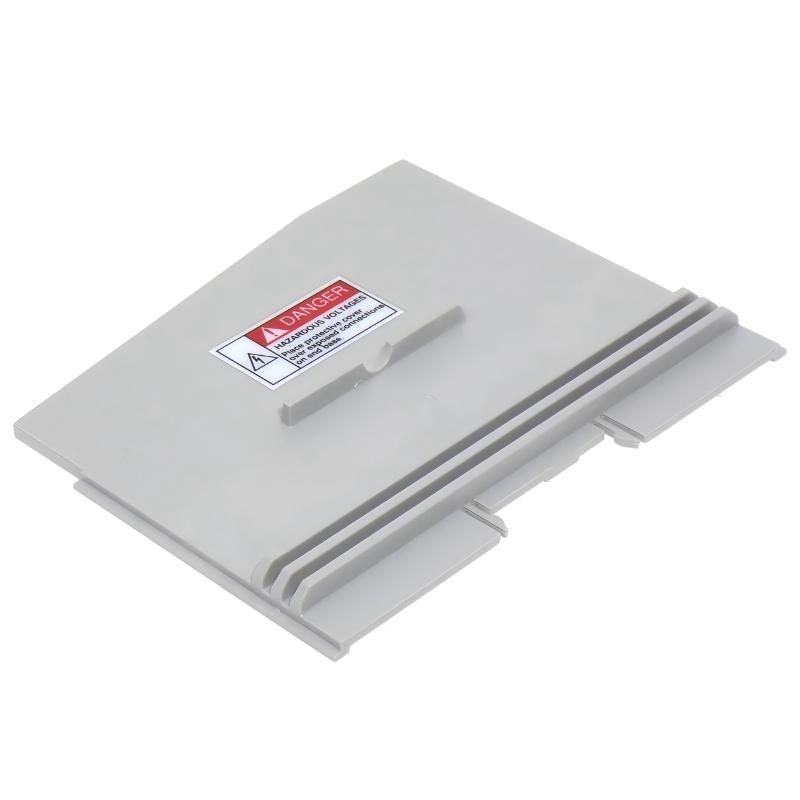

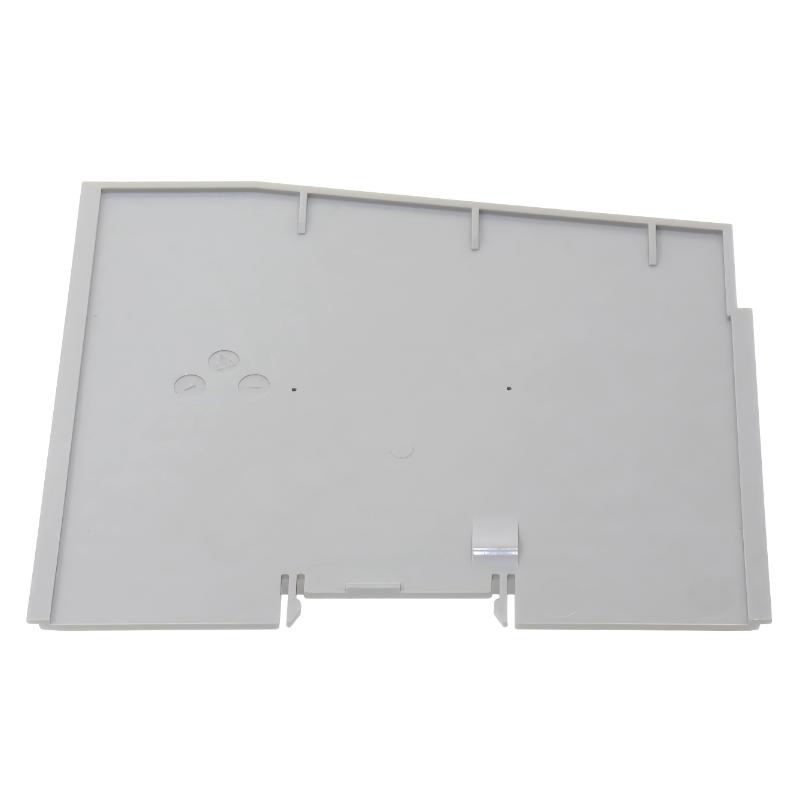

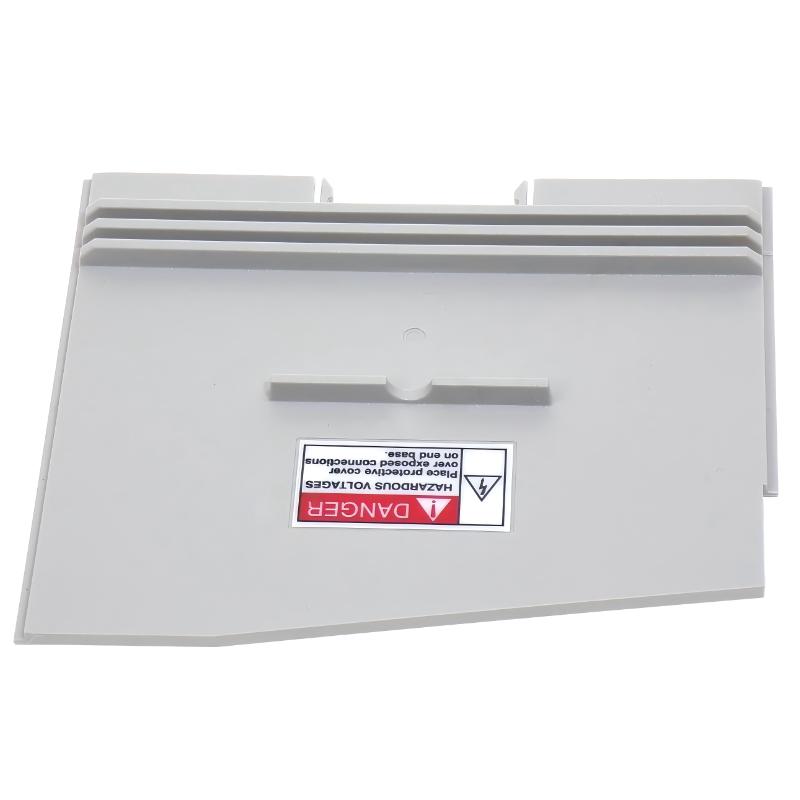

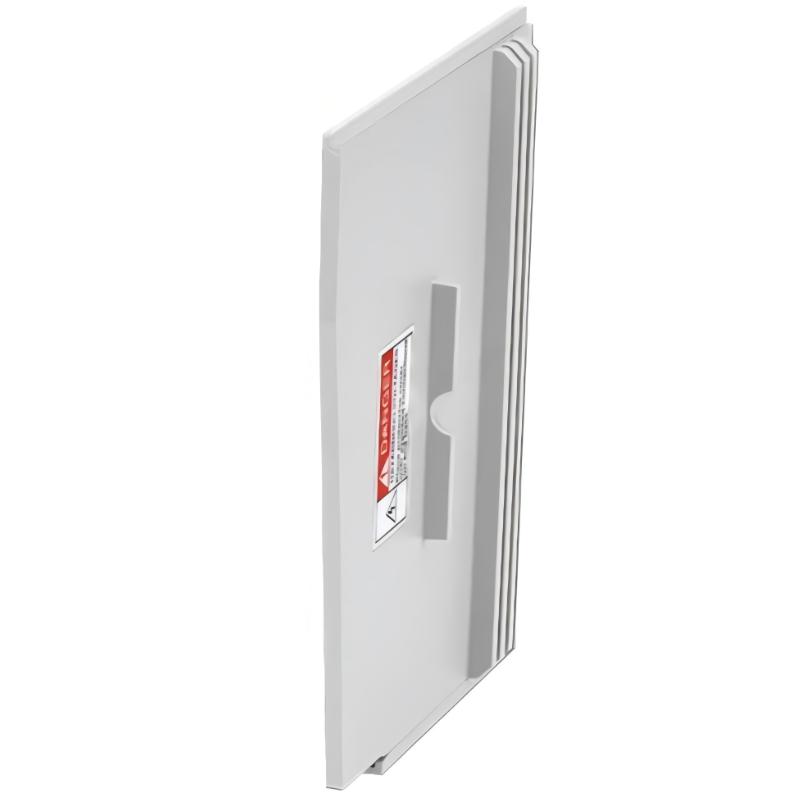

Allen Bradley 5069-ECR CompactLogix 5380 Right End Cap
Allen Bradley 5069-ECR CompactLogix 5380 Right End Cap
0.0
Points
Brand:Allen Bradley PLC Item No.:5069-ECR Product Origin:USA Product Dimensions:136.81 x 20 x 123 mm Product Weight:0.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 5069-ECR CompactLogix 5380 Right End Cap is a critical safety accessory in the Compact 5000 I/O ecosystem. It is designed to complete the physical structure of a 5069 backplane system by sealing the rightmost module position.
Although it does not perform any electrical or control function, it plays a vital role in ensuring operational safety, protecting internal communication pathways, and maintaining system compliance within industrial automation environments.
Technical Specifications
Parameter
Specification
Model
5069-ECR
Product Type
Right End Cap / Backplane Terminator
System Compatibility
CompactLogix 5380 / Compact 5000 I/O
Function
Mechanical and electrical protection
Installation Position
Rightmost backplane slot
Electrical Function
None (passive component)
Mounting Type
Snap-in backplane mount
Operating Role
System termination accessory
Operating Temperature
-25 to 60 °C
Dimensions
136.81 × 20 × 123 mm
Weight
0.1 kg (0.22 lb)
Applications
The 5069-ECR is an essential finishing component in Compact 5000 I/O architectures where system integrity and electrical safety are required:
Compact 5000 I/O rack completion in distributed control systems
EtherNet/IP adapter-based remote I/O assemblies
Industrial control panels requiring protected module termination
System expansions where unused backplane contacts must be safely sealed
It ensures the backplane remains electrically and mechanically protected during operation.
Advantages
Protects exposed backplane connections from contamination and accidental contact
Required component for safe system power-up in 5069 architecture
Ensures proper mechanical termination of Compact 5000 I/O racks
Simple plug-in installation with no configuration required
Improves system reliability by preventing connector damage
Compact passive design with zero maintenance requirements
Fully compatible with CompactLogix 5380 and related 5069 modules
Technical FAQs
1. What is the main function of this end cap?
It provides electrical and mechanical protection by covering exposed backplane connectors on the right side of a 5069 system.
2. Is it required for system operation?
Yes, it is required to safely power CompactLogix 5380 and Compact 5000 I/O assemblies.
3. Does it require configuration or programming?
No, it is a passive mechanical accessory with no software configuration.
4. Can the system run without it?
No, operating without it risks electrical exposure and system damage.
5. Where is it installed in the rack?
It is installed on the far right end of the Compact 5000 I/O backplane.
6. Is it compatible with all 5069 modules?
Yes, it is compatible with all Compact 5000 I/O and adapter-based systems.
7. Does it provide any communication function?
No, it has no communication or electrical processing function.
8. Can it be reused after removal?
Yes, it can be reinstalled if it remains undamaged.
9. Is any wiring required?
No wiring is required for this component.
10. What happens if it is missing?
The system may expose live backplane contacts, leading to safety hazards and possible hardware damage.
