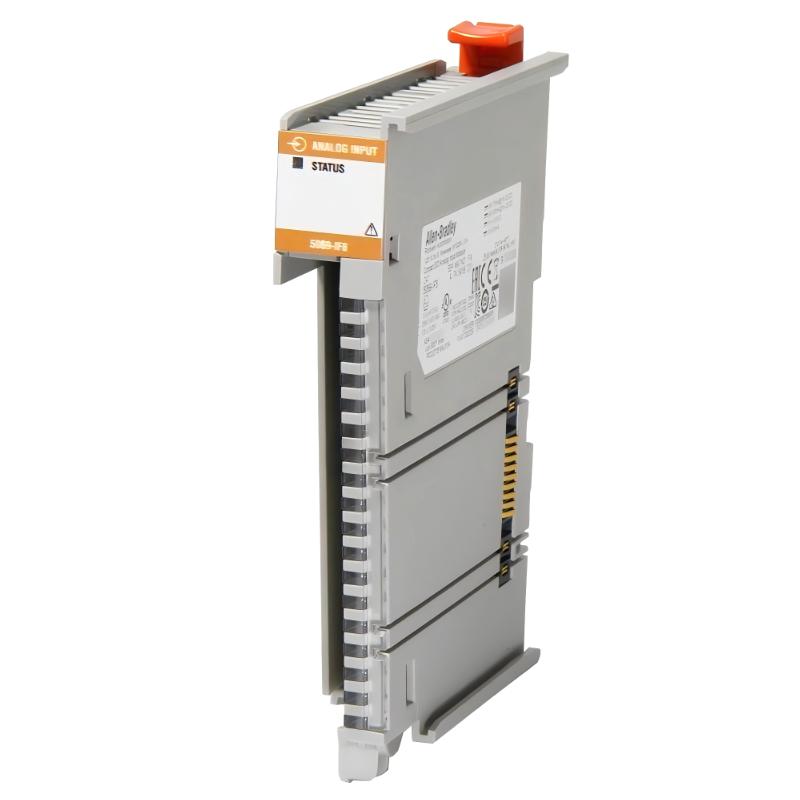

Allen Bradley 5069-IF8 Compact 5000 Analog Current/Voltage Input Module
Allen Bradley 5069-IF8 Compact 5000 Analog Current/Voltage Input Module
0.0
Points
Brand:Allen Bradley PLC Item No.:5069-IF8 Product Origin:USA Product Dimensions:144.6 x 22 x 105.4 mm Product Weight:0.175 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 5069-IF8 Compact 5000 Analog Input Module is a versatile industrial signal acquisition component used in modern automation systems. It enables precise monitoring of analog field devices and supports flexible configuration for both voltage and current inputs.
Engineered for high-performance control systems, it delivers reliable data acquisition for process industries and discrete manufacturing environments where measurement accuracy is critical.
Technical Specifications
Parameter
Specification
Model
5069-IF8
Product Type
Compact 5000 Analog Input Module
Input Channels
8
Input Types
Voltage / Current (per channel configurable)
Voltage Range
0–5V, 0–10V, ±10V
Current Range
0–20mA, 4–20mA
Resolution
16-bit class conversion
Isolation
Channel-to-backplane isolation
Backplane System
Compact 5000 I/O
Mounting Type
DIN rail / system backplane
Operating Temperature
0 to 60 °C
Dimensions
144.6 × 22 × 105.4 mm
Weight
0.175 kg (0.386 lb)
Diagnostics
Per-channel status indicators
Applications
The 5069-IF8 is widely used in industrial environments requiring accurate analog signal measurement and flexible field device integration:
Process control systems measuring pressure, flow, and temperature transmitters
Industrial automation lines requiring mixed analog signal acquisition
HVAC and utility monitoring systems
Machine condition monitoring and predictive maintenance systems
Distributed control architectures using CompactLogix 5380 platforms
Its per-channel configurable input capability allows voltage and current signals to coexist within the same module.
Advantages
Supports both voltage and current inputs per channel for maximum flexibility
High-resolution analog conversion ensures accurate signal processing
8-channel compact design reduces cabinet space requirements
Fast response time for real-time process monitoring
Built-in channel diagnostics for quick fault detection
Seamless integration with Compact 5000 I/O backplane
Robust industrial design for noisy electrical environments
Technical FAQs
1. What types of analog signals does this module support?
It supports voltage signals (such as 0–10V, ±10V) and current signals (such as 4–20mA, 0–20mA).
2. Can voltage and current signals be mixed on the same module?
Yes, each channel can be independently configured for voltage or current input.
3. Is this module suitable for process transmitters?
Yes, it is commonly used with industrial transmitters for pressure, flow, and temperature.
4. How many input channels does it provide?
It provides 8 independent analog input channels.
5. Does it support high-resolution measurement?
Yes, it uses high-resolution analog-to-digital conversion for precise readings.
6. Can it be used in distributed I/O systems?
Yes, it integrates into Compact 5000 distributed architectures.
7. Does it provide diagnostic feedback?
Yes, channel-level diagnostics and status indicators are supported.
8. Is it compatible with CompactLogix controllers?
Yes, it works with CompactLogix 5380 and related systems.
9. Does it require external scaling in PLC logic?
Yes, engineering unit scaling is typically handled in Studio 5000 or application logic.
10. Is it suitable for noisy industrial environments?
Yes, it is designed with industrial-grade electrical noise immunity.
