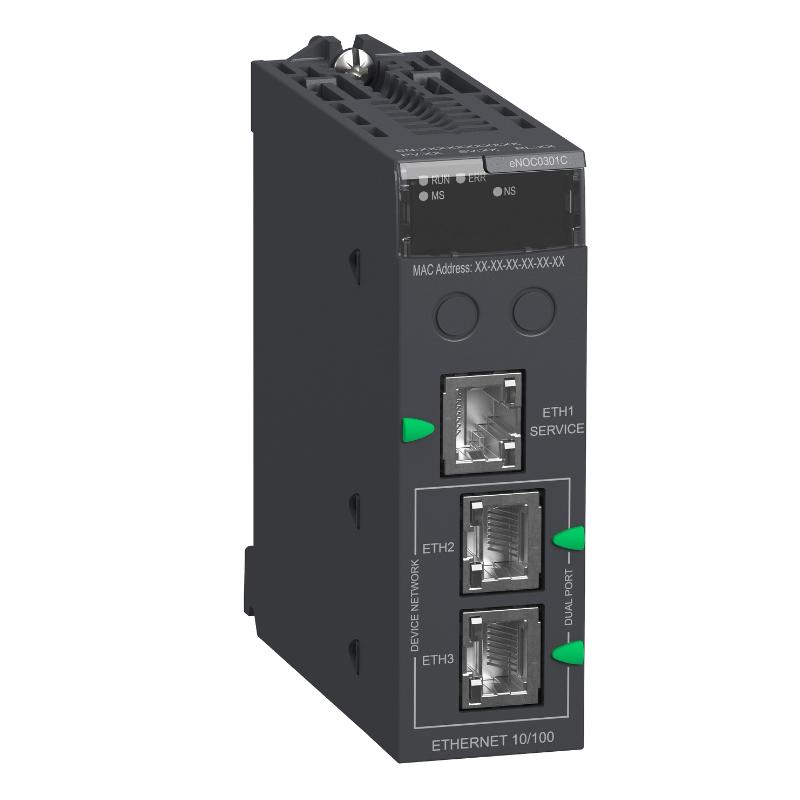

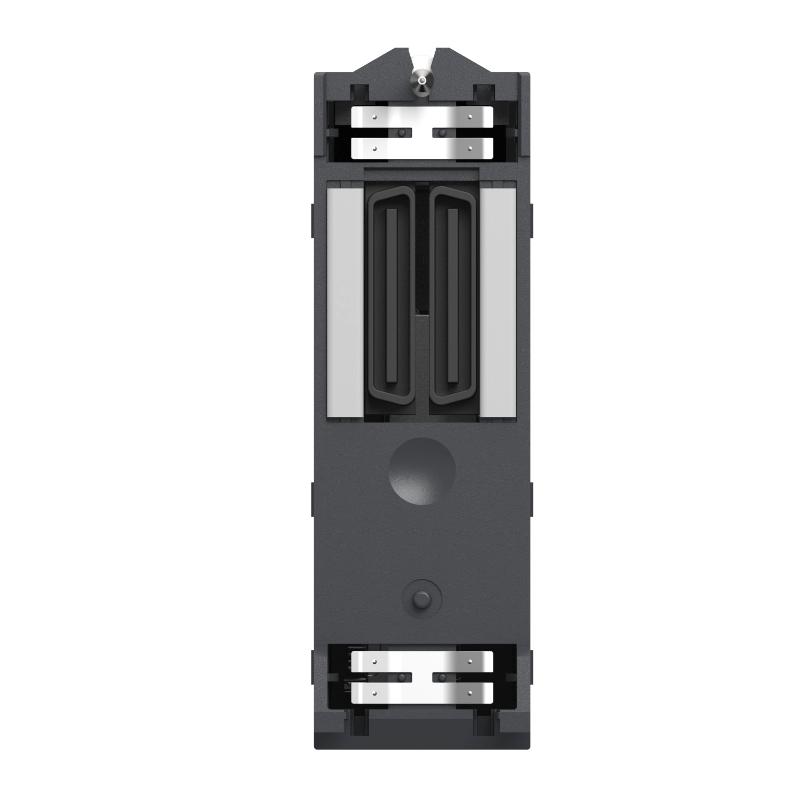

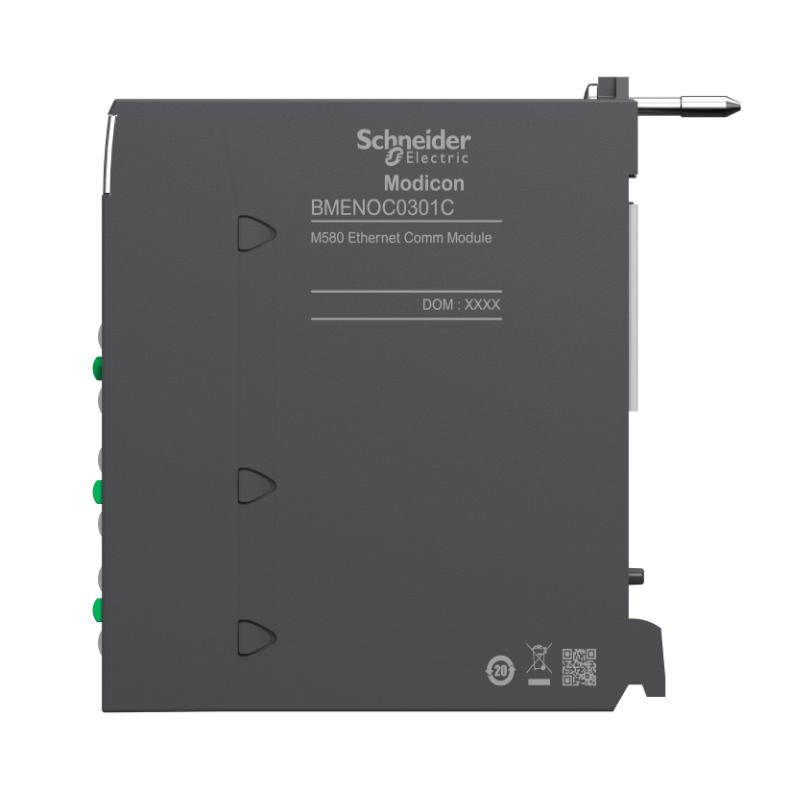

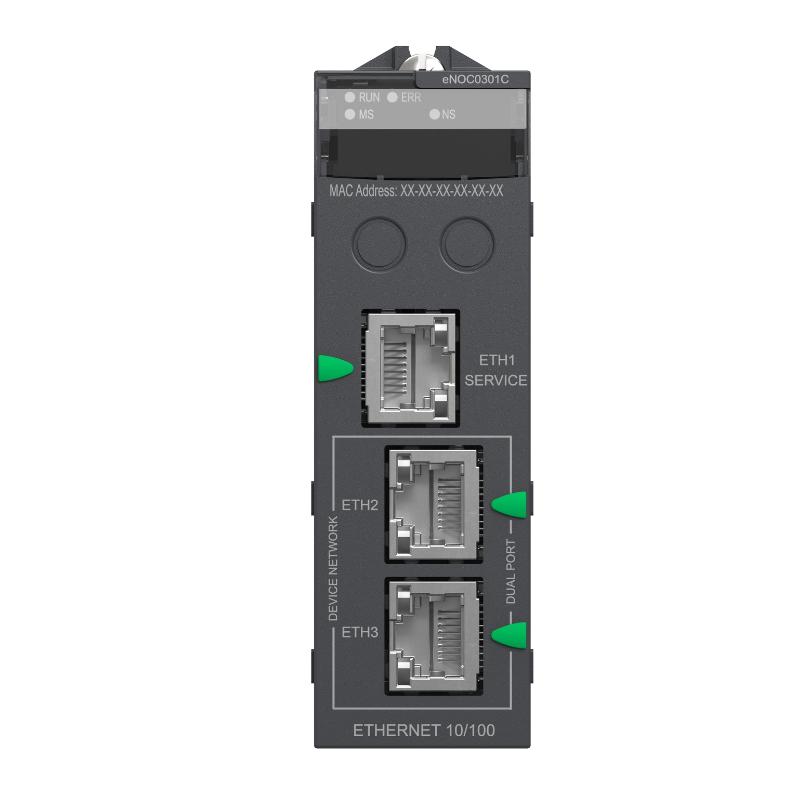

Schneider BMENOC0301C Ethernet Communication Module

Applications

• In Modicon M580 automation systems, the BMENOC0301C is used as a high-performance Ethernet communication gateway to connect PLC racks to industrial plant networks for real-time data exchange and control.

• It is deployed in SCADA and DCS architectures where multiple controllers and remote I/O systems must communicate through Modbus TCP and Ethernet/IP protocols.

• In process industries such as oil & gas, chemical plants, and water treatment facilities, it is used to enable reliable network communication between field-level control systems and supervisory platforms.

• It is applied in power generation and utility automation systems to integrate substation control, monitoring systems, and centralized operation centers over industrial Ethernet networks.

• It is used in factory automation networks to support high-speed data exchange, diagnostics, and distributed control across multiple production cells and equipment groups.

Key Advantages

• The module provides high-speed industrial Ethernet communication with support for multiple protocols including Modbus TCP and Ethernet/IP for flexible system integration.

• It features an embedded multi-port switch architecture that simplifies network topology and reduces the need for external switching hardware.

• It supports advanced network services such as RSTP, SNMP, port mirroring, and bandwidth management to enhance network reliability and diagnostics capability.

• It is designed with conformal coating protection, ensuring stable operation in harsh industrial environments with humidity, dust, and vibration exposure.

• It integrates directly into the Modicon M580 rack system, enabling fast deployment and seamless communication between PLC and industrial networks.

Technical FAQs

1. What system is the BMENOC0301C compatible with?
It is designed for the Schneider Modicon M580 automation platform.

2. What is the main function of this module?
It provides Ethernet communication between PLC racks and industrial networks.

3. Which communication protocols are supported?
It supports Modbus TCP and Ethernet/IP protocols.

4. Does it include built-in switching capability?
Yes, it includes an embedded multi-port Ethernet switch.

5. Can it be used in SCADA systems?
Yes, it is widely used in SCADA and DCS architectures.

6. Is it suitable for harsh environments?
Yes, it uses conformal coating for improved environmental resistance.

7. Does it support network diagnostics features?
Yes, it supports SNMP, port mirroring, and bandwidth management.

8. Is it suitable for continuous industrial operation?
Yes, it is designed for long-term continuous-duty use.

9. Does it require external Ethernet switches?
In many applications, it can reduce or eliminate the need for external switching.

10. Can it integrate with other PLC systems?
Yes, it can communicate with other systems via standard industrial protocols.
