Brand:Schneider PLC Item No.:BMXART0414H Product Origin:France Product Dimensions:104 x 33 x 93 mm Product Weight:0.135 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

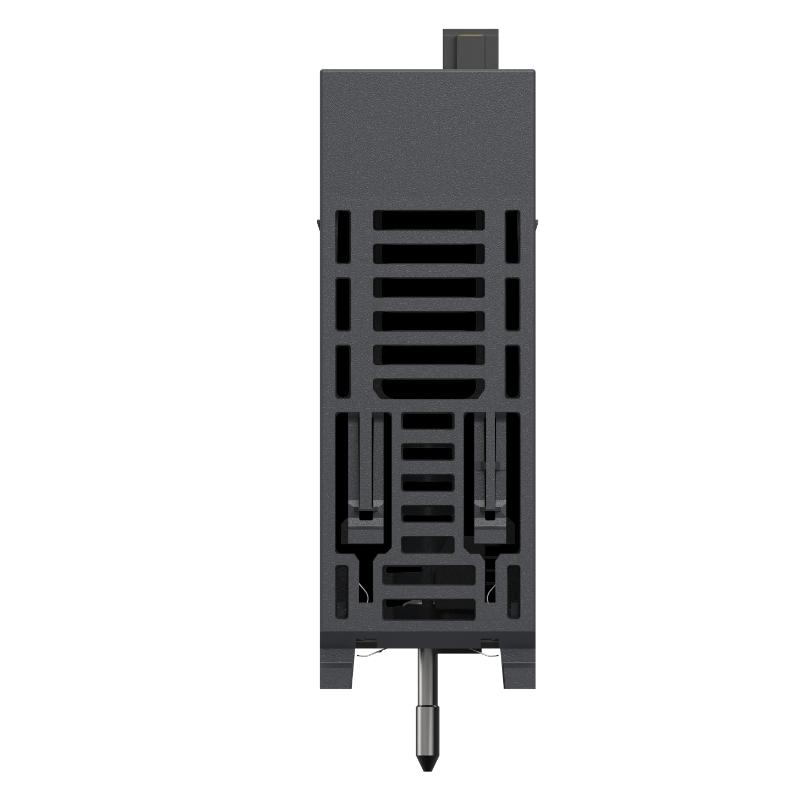

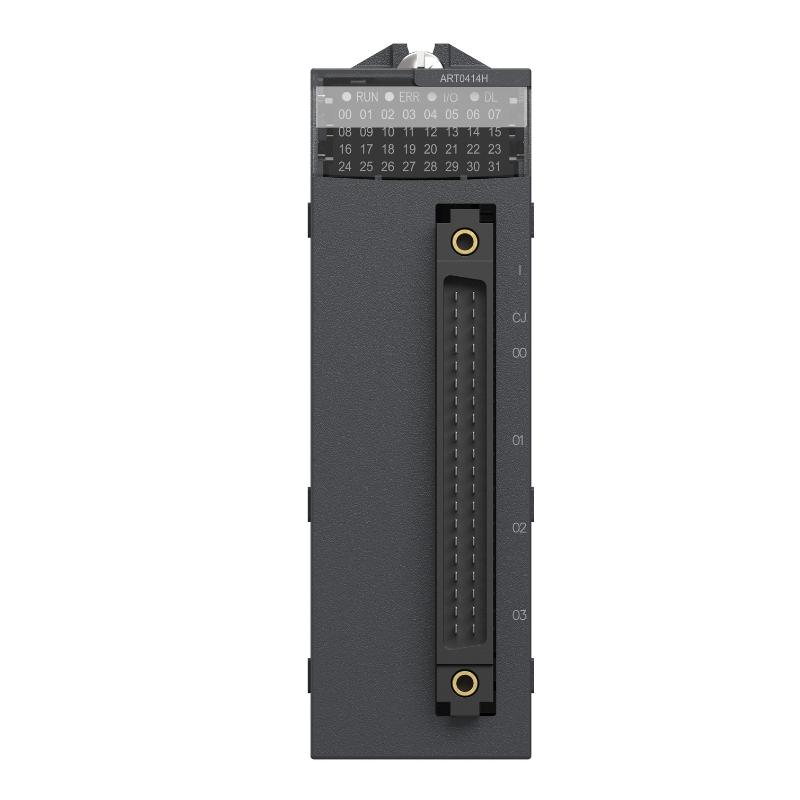

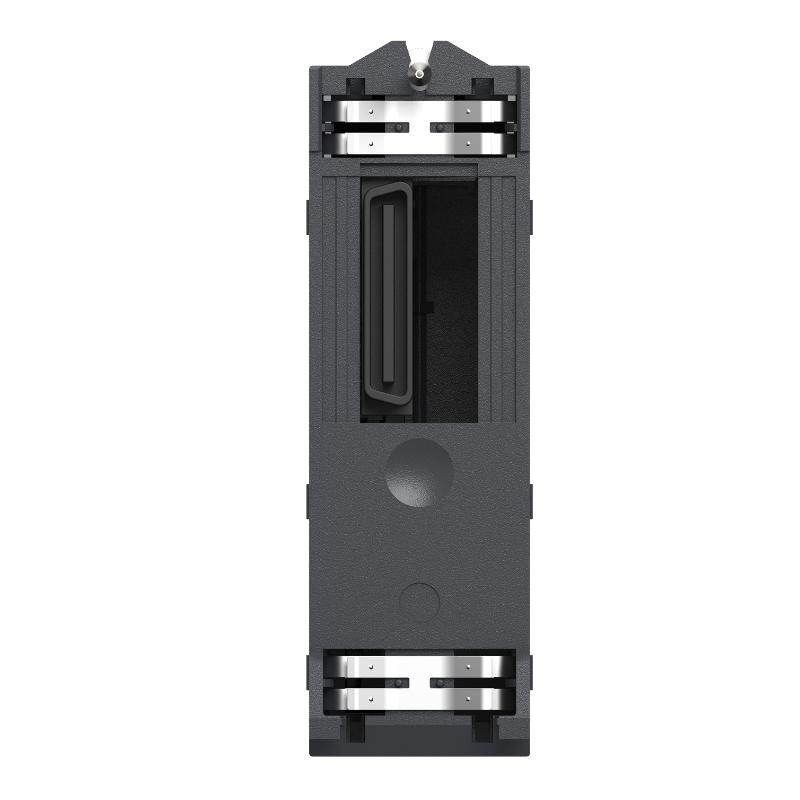

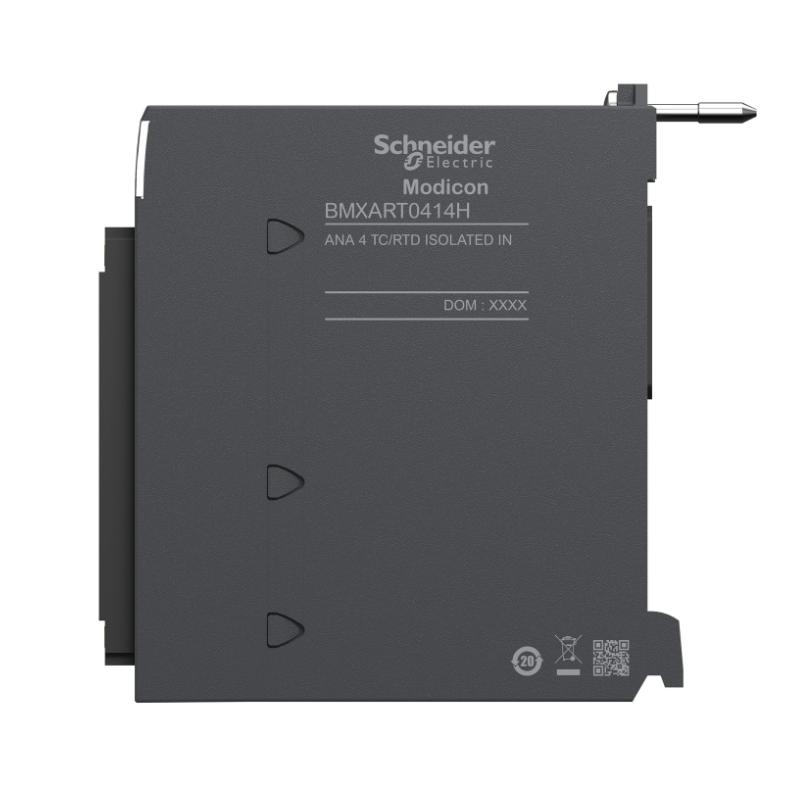

The Schneider Electric BMXART0414H is a high-precision analog input module designed for accurate acquisition of low-level process signals in industrial automation systems. It is part of the Modicon X80 family and is widely used in process control applications that require stable measurement of temperature and sensitive analog variables under demanding industrial conditions.
Schneider Modicon X80 Multi-purpose Analog Input Module
BMEAHI0812
Schneider Modicon High-Level Analog Input Module
BMXEAE0300
Schneider Modicon Signal Conditioning Module
Popular Related Models
Model
Product Name
BMEP584040
Schneider Modicon M580 Processor Module
BMENOC0301C
Schneider Modicon Ethernet Communication Module
BMXDDI3202K
Schneider Modicon Digital Input Module
BMXCPS3020
Schneider Modicon Power Supply Module
Applications
• In Modicon X80 PLC architectures, the BMXART0414H is used to acquire low-level analog signals from field devices such as thermocouples, RTDs, and millivolt-level sensors for high-precision process monitoring.
• It is deployed in continuous process industries where stable temperature and low-voltage signal measurement is required for closed-loop control of reactors, pipelines, and thermal systems.
• In industrial automation systems, it is used to interface sensitive analog instruments with PLC control platforms, ensuring accurate signal transmission under long-distance wiring conditions.
• It is applied in energy and utility systems where precise analog data is required for equipment diagnostics, load monitoring, and system optimization.
• It is suitable for harsh industrial environments where signal isolation and noise suppression are critical for maintaining measurement accuracy.
Key Advantages
• It supports high-resolution conversion of low-level analog signals, enabling precise measurement of temperature and micro-voltage process variables.
• It provides channel isolation to reduce interference and improve signal stability in electrically noisy industrial environments.
• It is compatible with multiple sensor types including thermocouples, RTDs, and resistance-based inputs, offering strong application flexibility.
• It ensures stable operation under severe industrial conditions such as vibration, temperature variation, and electromagnetic disturbance.
• It integrates directly into the Modicon X80 platform, simplifying installation and ensuring consistent system compatibility.
Technical FAQs
1. What system is this module designed for?
It is designed for the Schneider Modicon X80 PLC system.
2. What types of signals does it measure?
It measures low-level analog signals such as millivolts, thermocouples, and RTDs.
3. How many input channels does it have?
It has 4 analog input channels.
4. Is it suitable for temperature measurement?
Yes, it supports multiple temperature sensor types including thermocouples and RTDs.
5. Does it provide channel isolation?
Yes, it includes channel isolation for improved signal integrity.
6. Can it operate in harsh environments?
Yes, it is designed for severe industrial conditions.
7. What is its main application area?
It is used for precise analog signal acquisition in industrial automation systems.
8. Does it support low-voltage signals?
Yes, it is designed for millivolt-level input measurement.
9. Is it compatible with Modicon PLC systems?
Yes, it integrates with the Modicon X80 platform.
10. Is it suitable for continuous operation?
Yes, it is designed for long-term industrial continuous-duty use.
