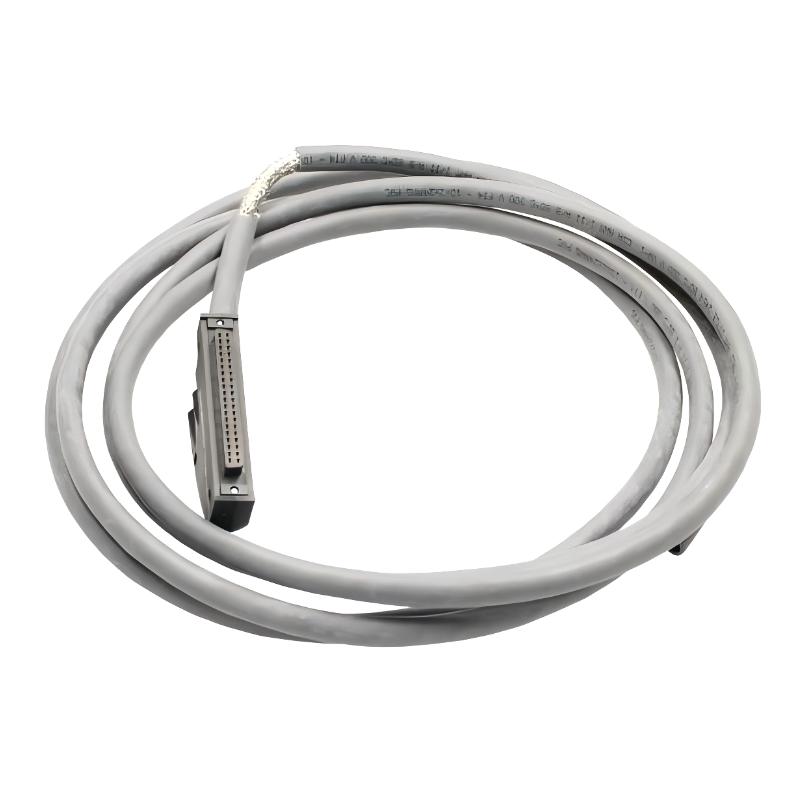

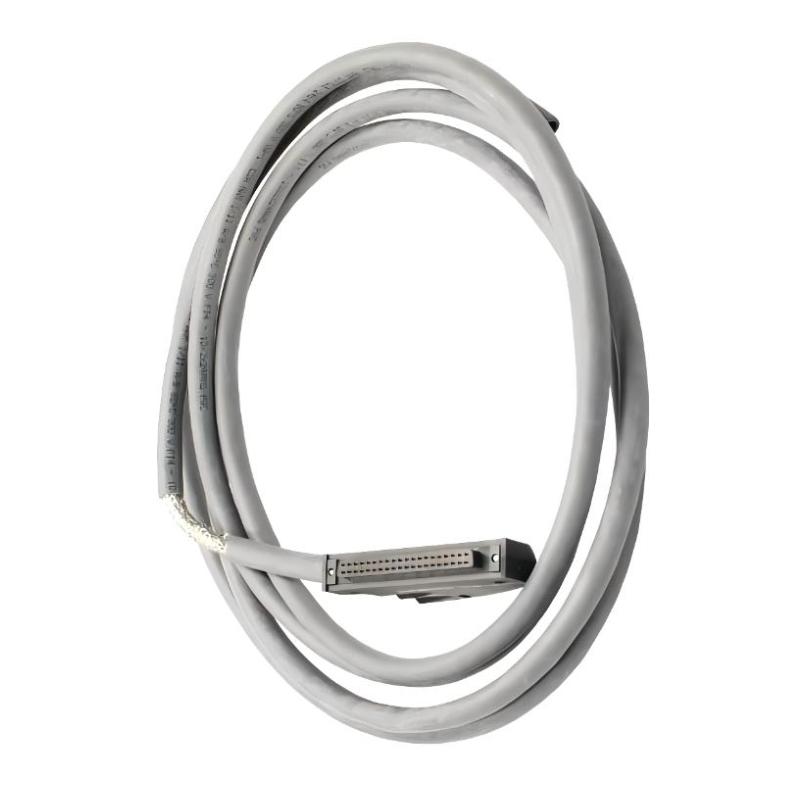

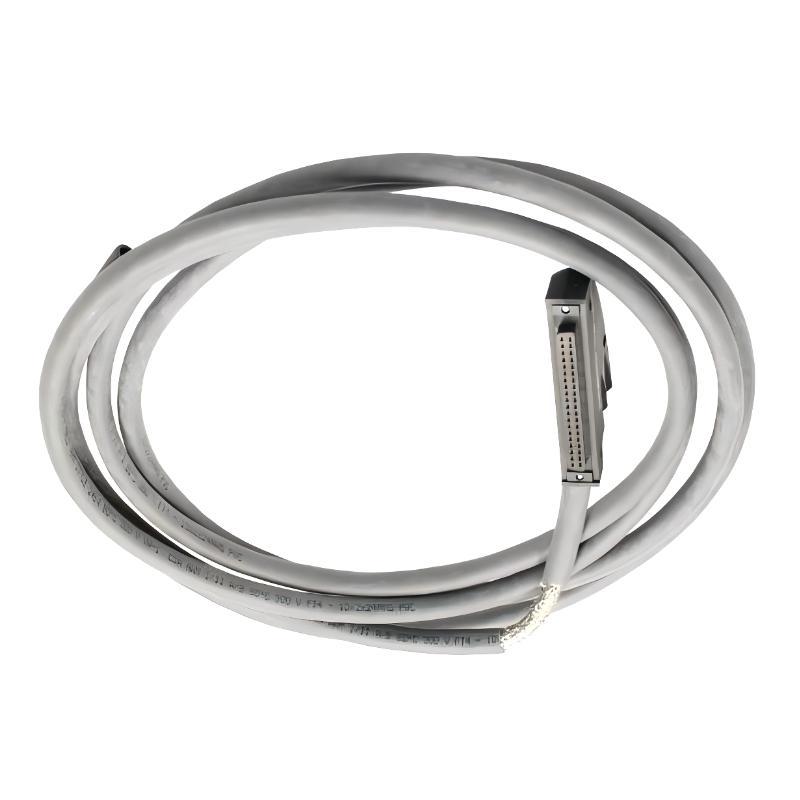

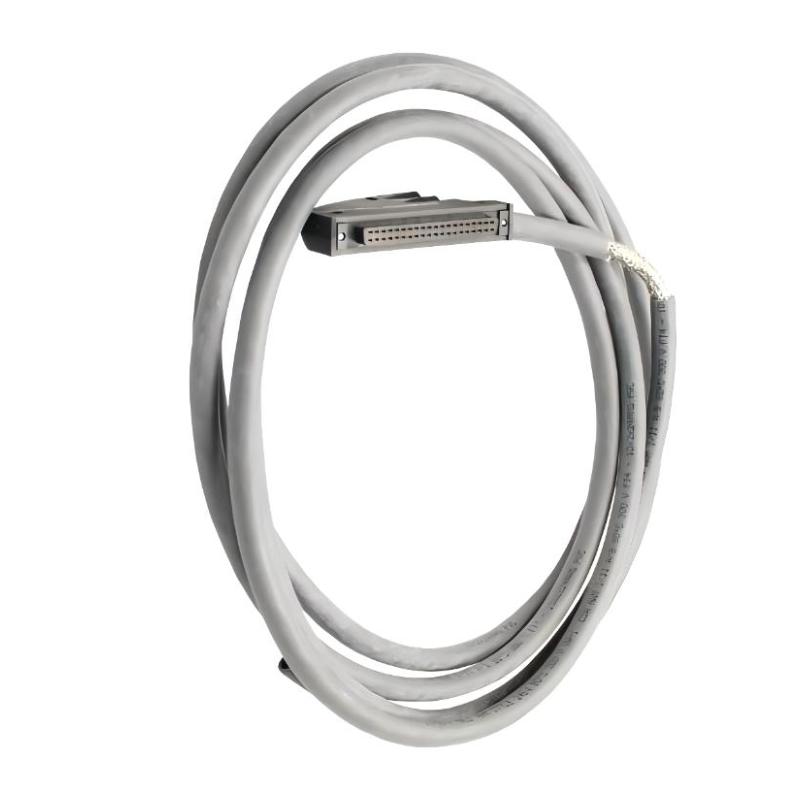

Schneider BMXFCW301S Shielded Cable Assemblies

Applications

• In Modicon X80 automation systems, the BMXFCW301S is used as a shielded preformed connection cable between analog input modules and field wiring terminals for stable signal transmission.

• It is applied in Modicon M340 and M580-based control architectures where analog sensors such as thermocouples and RTDs require low-noise signal wiring over a standardized 40-pin interface.

• In process control environments, it is used to connect distributed field instruments to PLC I/O modules while minimizing electromagnetic interference from nearby power and drive equipment.

• It is deployed in industrial cabinet installations where fast and reliable module-to-terminal wiring is required to reduce commissioning time and wiring errors.

• It is suitable for continuous industrial automation systems where consistent signal integrity and shielding performance are critical for measurement accuracy.

Key Advantages

• It provides factory-preassembled shielding and connector integration, reducing wiring time and eliminating on-site termination inconsistencies.

• It ensures strong electromagnetic interference protection, maintaining signal integrity for sensitive analog and mixed-signal applications.

• It simplifies installation by using a standardized 40-way connector interface on the module side with color-coded flying leads for field wiring.

• It improves system reliability by reducing loose connections and wiring errors commonly found in manually assembled cable systems.

• It is designed for compatibility across Modicon X80 analog I/O modules, ensuring consistent performance within Schneider automation platforms.

Technical FAQs

1. What is the main purpose of the BMXFCW301S cable?
It is used to connect Modicon X80 analog I/O modules to field wiring terminals with shielded signal transmission.

2. Which systems is it compatible with?
It is compatible with Modicon M340 and M580 X80 I/O platforms.

3. What is the cable length?
It is 3 meters long.

4. Why is shielding important in this cable?
Shielding reduces electromagnetic interference and improves analog signal stability.

5. What type of connection does it use on the module side?
It uses a 40-way connector interface.

6. What is used on the field wiring side?
It uses color-coded flying leads for terminal connection.

7. Is it suitable for analog signals?
Yes, it is designed for analog I/O module connections.

8. Does it reduce installation time?
Yes, it is preassembled to simplify and speed up wiring work.

9. Can it be used in harsh industrial environments?
Yes, it is designed for industrial environments with electrical noise.

10. Does it require special tools for installation?
No special tools are required beyond standard terminal wiring tools.
