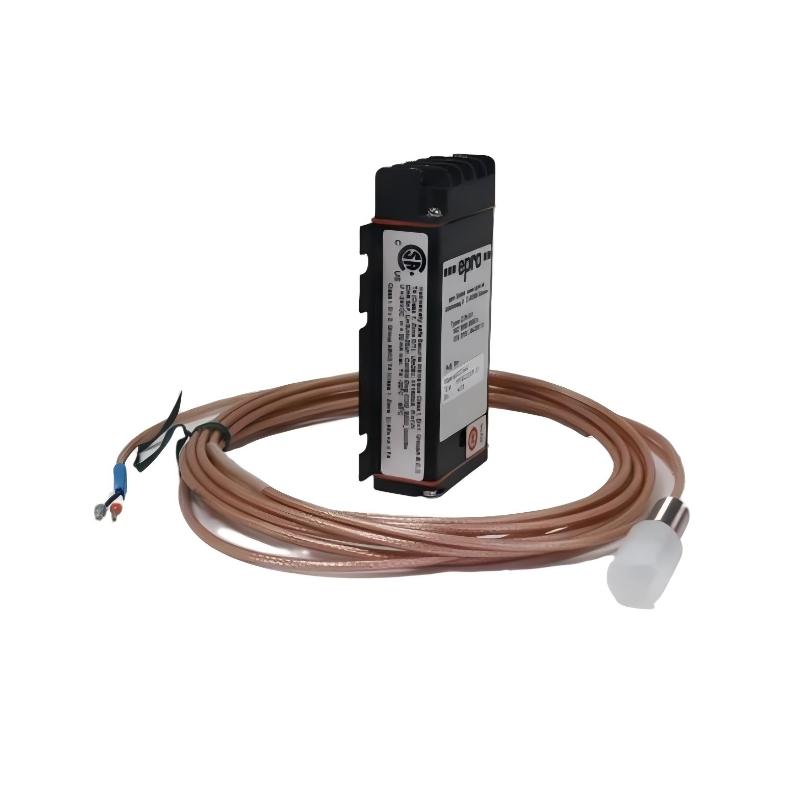

Epro PR6424/010-000+CON021 16 mm Eddy Current Sensor
Epro PR6424/010-000+CON021 16 mm Eddy Current Sensor
0.0
Points
Brand:Epro PLC Item No.:PR6424/010-000+CON021 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.32 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The EPRO PR6424/010-000+CON021 is a 16 mm eddy-current displacement measurement system designed for high-end rotating machinery monitoring. It plays a critical role in industrial condition monitoring by delivering accurate, stable, and continuous shaft movement data that supports early fault detection and equipment protection strategies.
Its combination of a precision probe and dedicated signal converter ensures reliable performance in demanding environments such as turbines, compressors, and large-scale industrial drives.
Technical Specifications
Parameter
Specification
Model
PR6424/010-000+CON021
Product Type
16 mm Eddy Current Sensor System
Measurement Principle
Eddy-current non-contact sensing
Sensor Diameter
16 mm
Signal Processing
CON021 converter module
Sensitivity
4 V/mm (±1.5%)
Linear Range
±2.0 mm
Dynamic Range
0 to 1000 µm
Operating Temperature
-35 to 180 °C
Target Material
Ferromagnetic steel
Frequency Response
Up to 20 kHz (system dependent)
Installation Type
Fixed industrial mounting system
Weight
0.32 kg (0.71 lb)
Application Type
Turbomachinery vibration and displacement monitoring
Applications
The PR6424/010-000+CON021 system is widely used in turbomachinery environments where accurate dynamic shaft behavior monitoring is essential:
Steam and gas turbines in power generation plants
Centrifugal and axial compressors in oil & gas facilities
Industrial pumps and high-speed rotating equipment
Hydro turbines and generator sets
Fans, blowers, and heavy rotating machinery systems
It is typically deployed in API 670-aligned protection and monitoring systems for continuous asset supervision.
Advantages
Integrated sensor + CON021 converter system for stable signal processing
Excellent stability under high temperature and vibration conditions
Strong resistance to electromagnetic interference in industrial environments
Suitable for radial and axial shaft displacement monitoring
Reliable long-term operation for predictive maintenance systems
Seamless integration into turbomachinery protection architectures
Technical FAQs
1. What is the role of the CON021 in this system?
It converts the raw eddy-current signal from the PR6424 probe into a stable, usable output signal for monitoring systems.
2. Can this system measure shaft vibration directly?
It measures shaft displacement, which is used to derive vibration, position, and eccentricity.
3. Is this suitable for turbine applications?
Yes, it is specifically designed for steam, gas, and hydro turbine monitoring systems.
4. Does it require physical contact with the shaft?
No, it operates completely without contact using eddy-current technology.
5. What type of shafts can it measure?
It is optimized for ferromagnetic steel shafts commonly used in industrial rotating machinery.
6. Can it be used in high-temperature environments?
Yes, it is designed for harsh turbomachinery conditions with elevated temperatures.
7. Is it suitable for continuous monitoring systems?
Yes, it is intended for 24/7 condition monitoring and protection systems.
8. Does it support both radial and axial measurements?
Yes, depending on installation configuration, it supports both measurement directions.
9. How does it handle electrical noise?
The CON021 provides strong signal conditioning and noise immunity for industrial environments.
10. Is it used in predictive maintenance systems?
Yes, it is widely used to detect early signs of imbalance, misalignment, and bearing wear.
