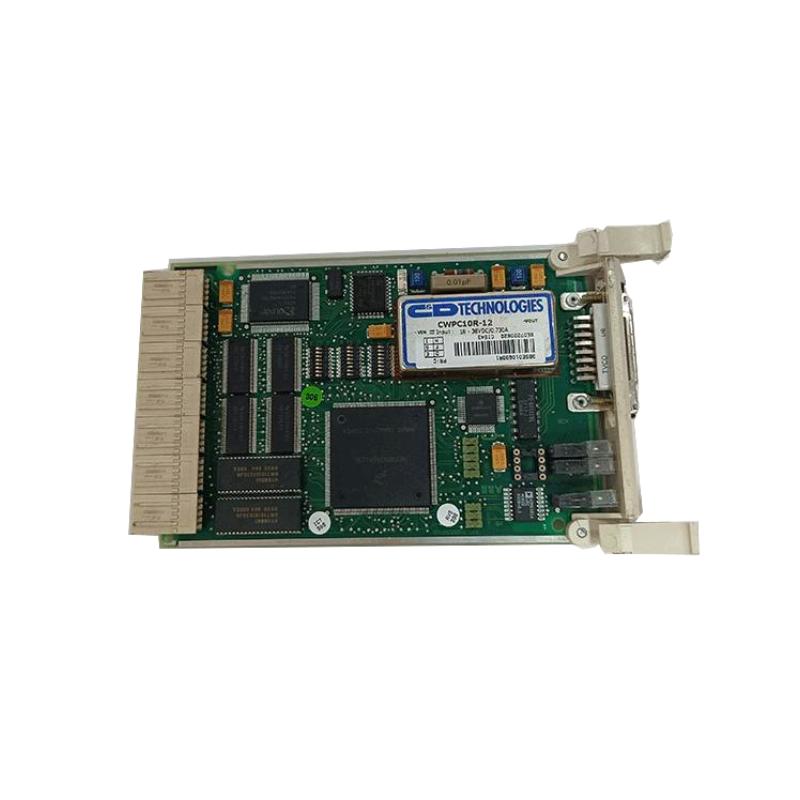

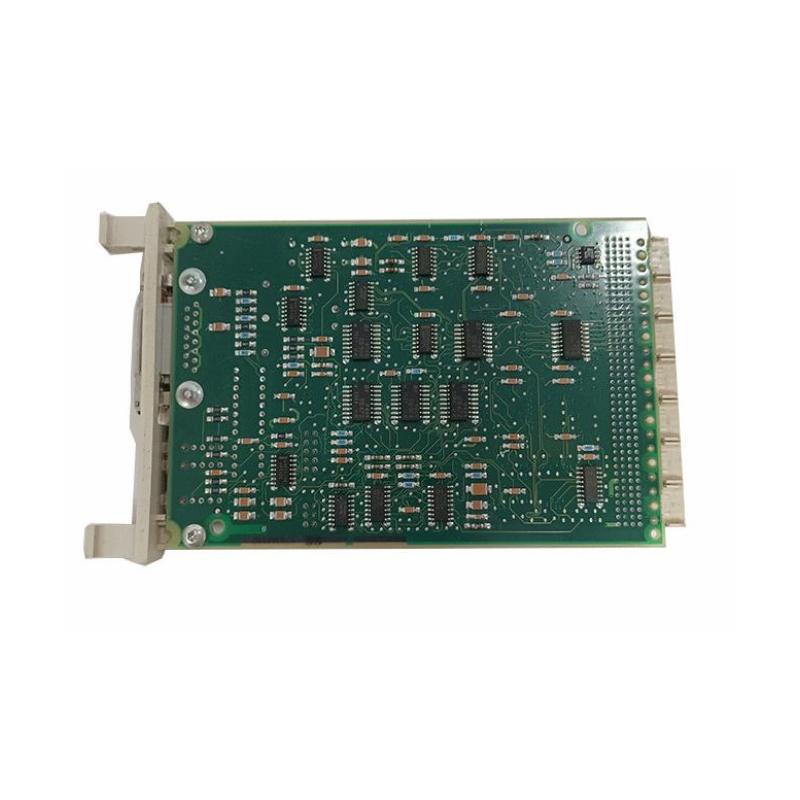

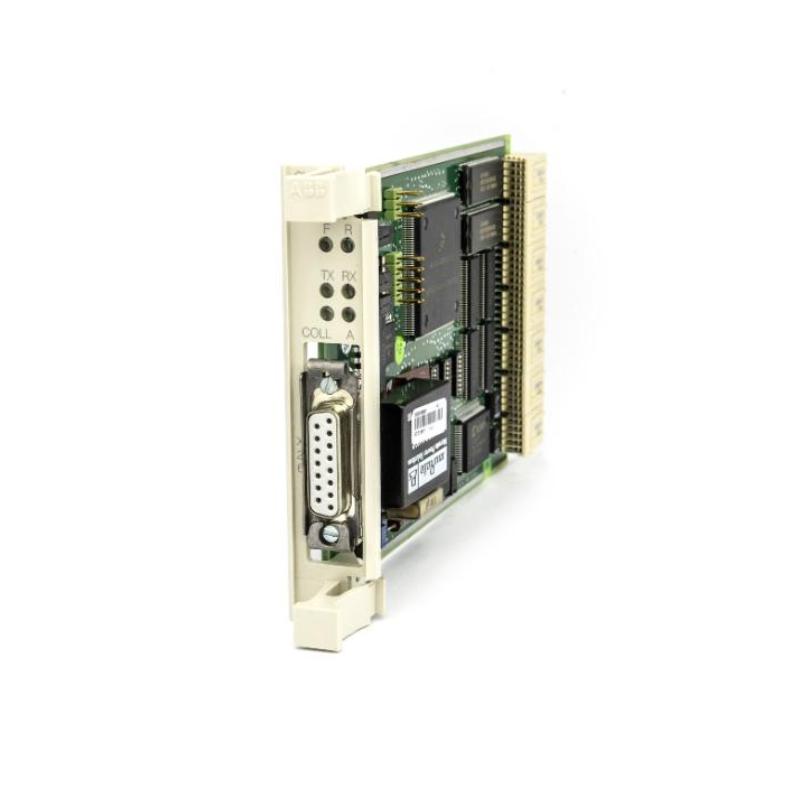

ABB CI543 3BSE010699R1 Communication Module 100% NEW

Applications

The ABB CI543 Communication Module is suitable for a broad range of industrial applications, including:

1. Industrial Automation - Facilitates communication between controllers, sensors, and actuators across factory floors and plants.

2. Process Control - Ensures smooth and real-time communication between field devices and control systems in industries such as chemical processing, food & beverage, and pharmaceuticals.

3. Energy Management - Monitors and controls energy systems, helping companies optimize energy consumption and reduce costs.

4. Building Automation - Integrates HVAC, lighting, and other building systems for centralized control and monitoring, providing improved efficiency and comfort.

5. IoT and Smart Manufacturing - Supports smart devices and IoT sensors, enabling seamless data transfer and analysis for smarter decision-making.

6. Remote Monitoring - Allows for remote diagnostics and real-time monitoring of systems, improving maintenance processes and reducing downtime.

Advantages

1. Multi-Protocol Support: The CI543 supports a wide range of communication protocols, including Ethernet/IP, Modbus TCP, EtherCAT, and OPC UA, making it ideal for diverse industrial environments.

2. Enhanced Communication Speed: With Gigabit Ethernet ports, the CI543 ensures high-speed data transfer, critical for large-scale or time-sensitive applications.

3. High Availability: Built-in redundancy support guarantees continuous operation in critical systems, reducing the risk of downtime.

4. Flexible and Scalable: Suitable for a wide range of applications, from small systems to large industrial networks, with easy scalability as your needs grow.

5. Reliable Performance: With a wide operating temperature range and robust design, the CI543 operates reliably in harsh industrial environments.

6. Easy Installation: The CI543 can be mounted on standard DIN rails, simplifying installation and reducing setup time.

7. Comprehensive Diagnostics: Provides advanced diagnostic tools for real-time troubleshooting, enabling faster maintenance and minimizing downtime.

8. Energy Efficient: Designed to be energy-efficient, the CI543 reduces power consumption without compromising on performance.

9. Global Compatibility: It works seamlessly with a wide range of ABB and third-party devices, ensuring ease of integration into existing systems.

10. Cost-Effective Solution: The CI543 offers high performance and reliability at a competitive price point, delivering excellent value for investment.

Technical FAQs

1. What is the required power supply for the CI543?

   • The CI543 operates on a 24V DC power supply, ensuring compatibility with most industrial setups.

2. Can I use the CI543 with non-ABB devices?

   • Yes, the CI543 supports standard communication protocols such as Modbus TCP, EtherCAT, and OPC UA, making it compatible with a wide range of third-party devices.

3. What is the difference between the CI543 and CI550?

   • The CI550 offers additional advanced diagnostics and support for even more protocols, making it better suited for complex, large-scale applications that require in-depth monitoring and performance analysis.

4. How many devices can be connected to the CI543 module?

   • The CI543 can support hundreds of devices, depending on network configuration and communication protocols.

5. Does the CI543 support redundancy?

   • Yes, the CI543 includes redundancy support, ensuring high availability and uninterrupted communication for mission-critical applications.

6. What are the temperature requirements for the CI543?

   • The CI543 is designed to operate within a temperature range of -20°C to +60°C, suitable for most industrial environments.

7. How is the CI543 installed?

   • The CI543 can be easily mounted on a DIN rail, which is a standard mounting method in industrial systems for easy integration.

8. Can I use the CI543 for remote diagnostics?

   • Yes, the CI543 includes diagnostics ports, allowing for remote monitoring and troubleshooting to optimize maintenance processes.

9. What is the communication speed of the CI543?

   • The CI543 supports Gigabit Ethernet (1 Gbps) for high-speed communication, ensuring fast data transfer and improved system responsiveness.

10. Can the CI543 be used for IoT applications?

• Yes, the CI543 is fully capable of integrating IoT devices, allowing for real-time data collection, analysis, and remote management in smart manufacturing and other IoT-enabled industries.
