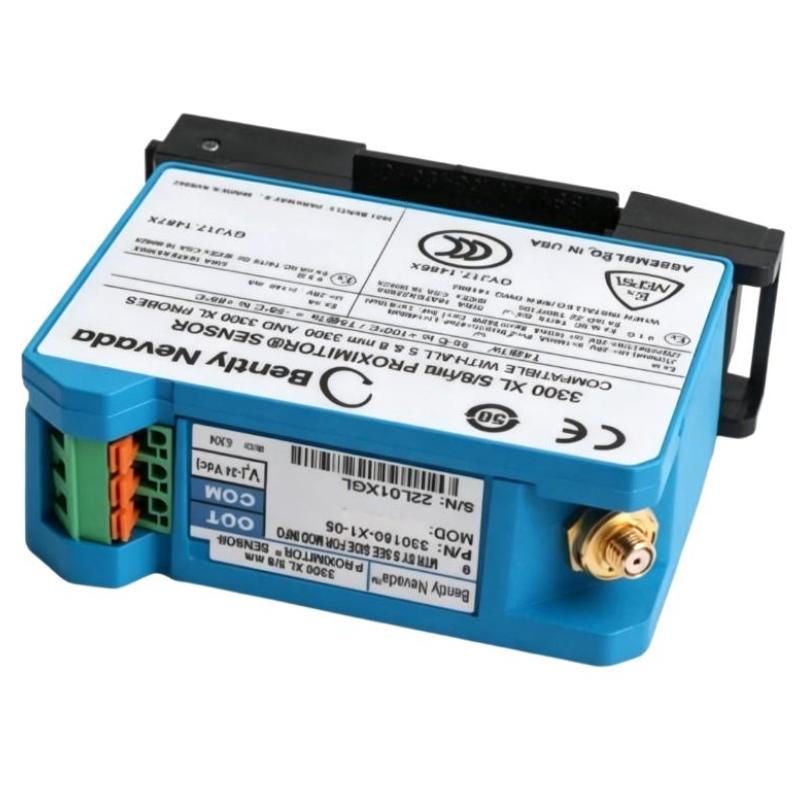

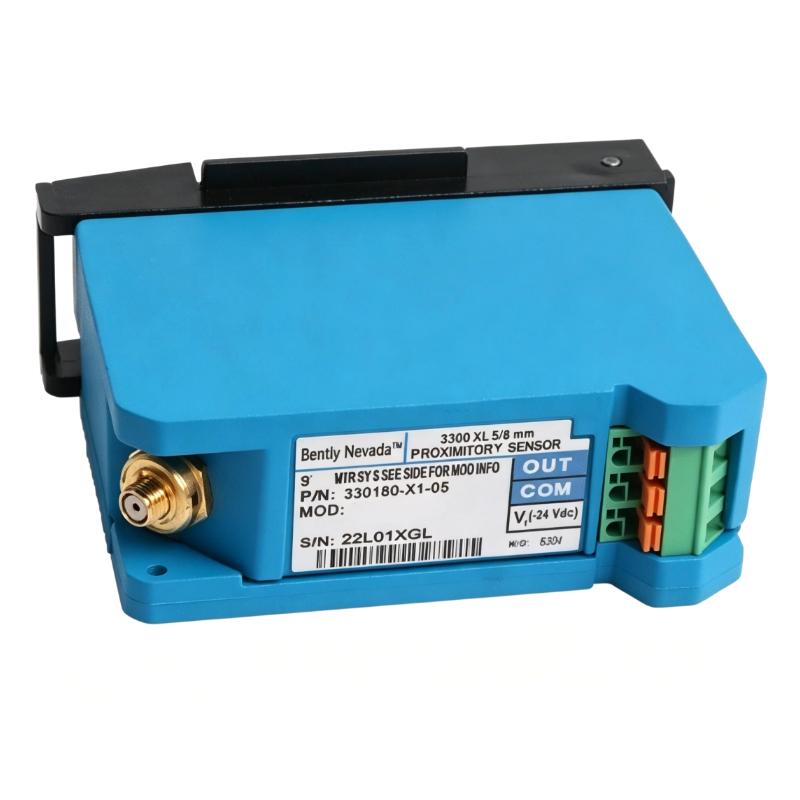

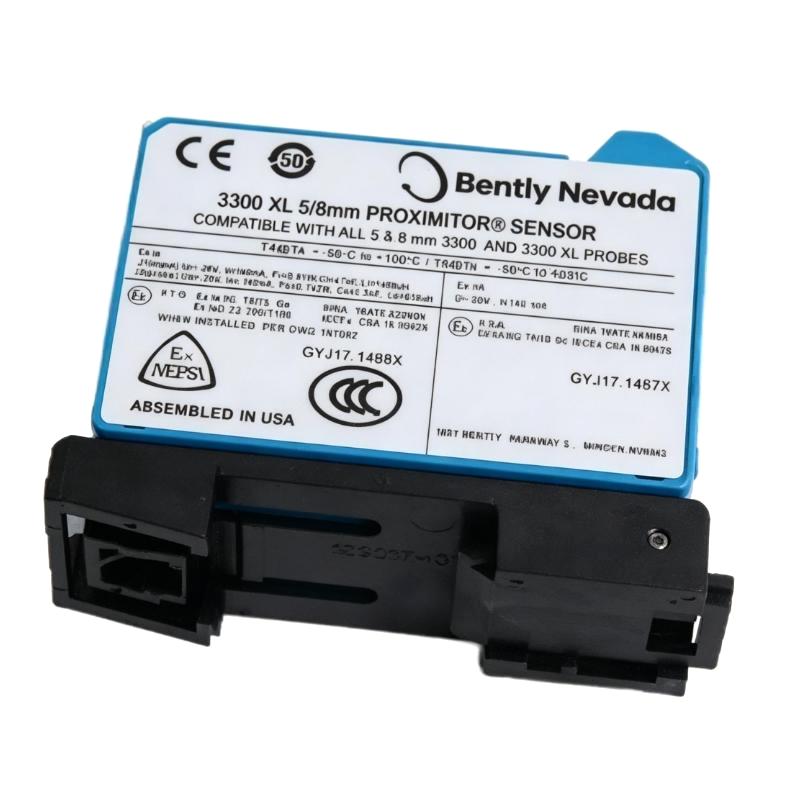

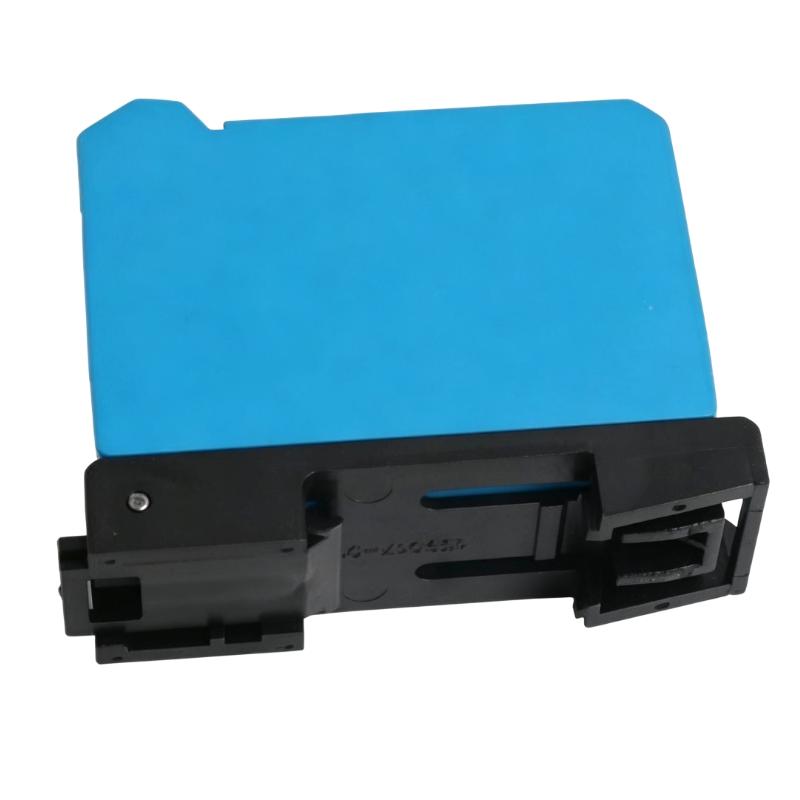

Bently Nevada 330180-X1-05 161255-02 3300 XL 8 mm Preamplifier Sensor

Applications

• In turbomachinery protection systems, the 330180-X1-05 is used as a signal conditioning unit that converts eddy current probe signals into stable voltage outputs for vibration and shaft displacement monitoring.

• It is deployed in condition monitoring systems for rotating equipment such as turbines, compressors, and pumps where accurate signal amplification is required for real-time machinery analysis.

• In power generation plants, it is used within turbine supervisory instrumentation systems to ensure precise processing of proximity probe signals under high-speed and high-temperature operating conditions.

• It is applied in oil and gas facilities for critical rotating assets where reliable signal conversion is essential for machinery protection and predictive maintenance.

• It is suitable for industrial automation environments where stable signal conditioning is required to support long-distance transmission and noise-resistant measurement systems.

Key Advantages

• It provides high-stability signal conditioning for 3300 XL 8 mm proximity transducer systems, ensuring accurate conversion of probe signals into linear output.

• It offers strong immunity to electromagnetic interference, maintaining signal integrity in electrically noisy industrial environments.

• It supports standardized integration with the 3300 XL system architecture, enabling plug-and-play compatibility with probes and extension cables.

• It delivers consistent long-term performance, reducing signal drift and improving reliability in continuous monitoring applications.

• It is designed for industrial-grade durability, ensuring stable operation in harsh environments with vibration, heat, and electrical stress.

Technical FAQs

1. What is the main function of this module?
It acts as a proximitor/preamplifier that conditions probe signals into usable output for monitoring systems.

2. What system is it part of?
It is part of the Bently Nevada 3300 XL 8 mm proximity transducer system.

3. What does it connect to?
It works with an 8 mm proximity probe and extension cable.

4. What type of signal does it output?
It outputs a conditioned voltage proportional to shaft displacement and vibration.

5. Where is it commonly used?
It is used in turbines, compressors, pumps, and other rotating machinery.

6. Is it suitable for harsh environments?
Yes, it is designed for industrial vibration and high EMI conditions.

7. Does it require calibration between components?
No, system components are designed for standardized interchangeability.

8. Can it be used in power plants?
Yes, it is widely used in turbine monitoring systems.

9. What is its role in the system?
It acts as the signal conditioning “interface” between probe and monitoring system.

10. Is it suitable for continuous operation?
Yes, it is designed for long-term continuous monitoring.
