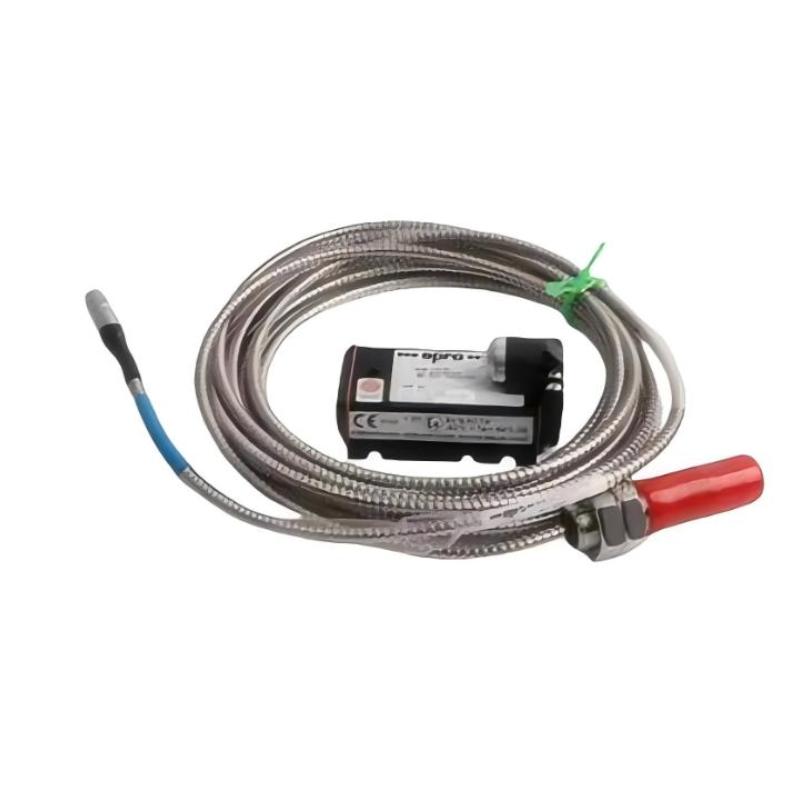

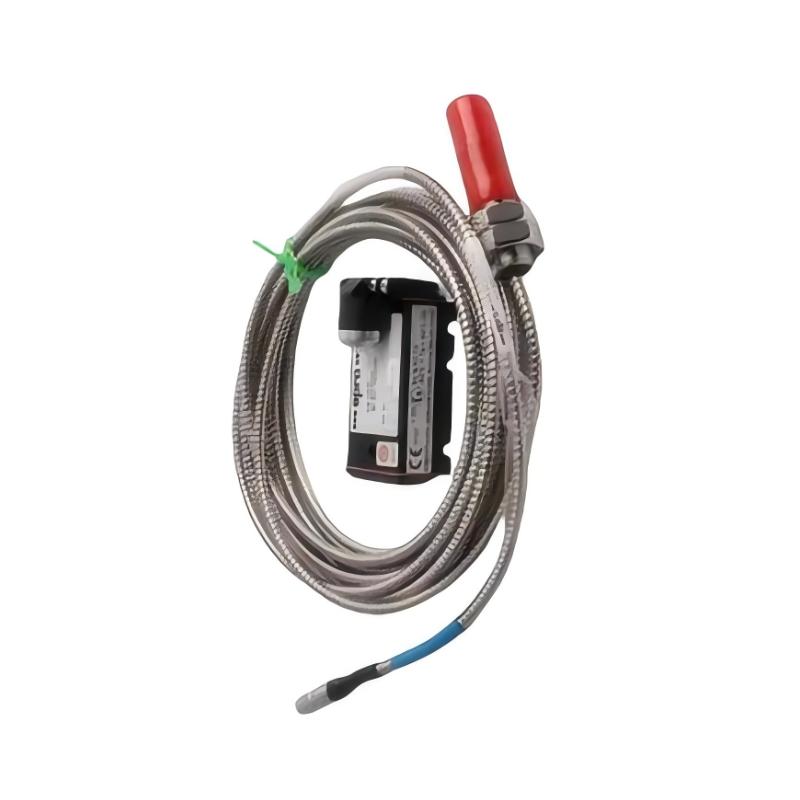

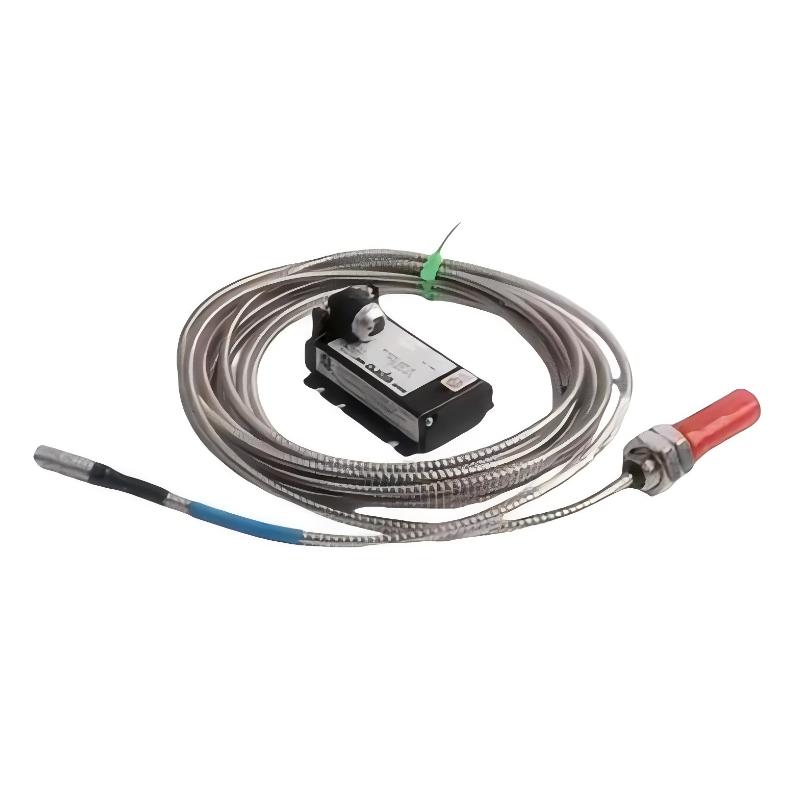

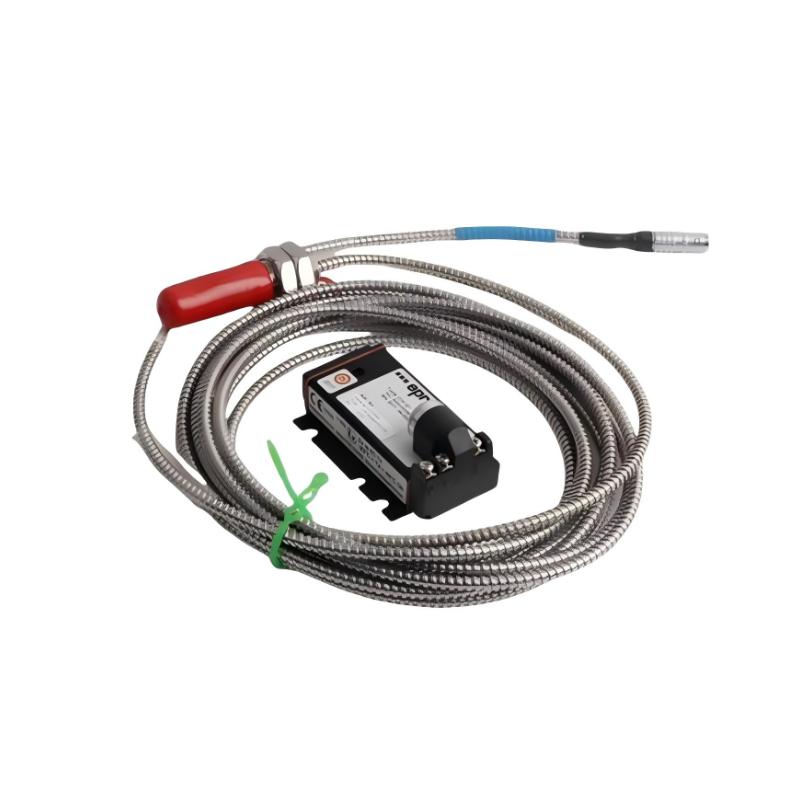

Epro PR6424/010-010+CON021 16 mm Eddy Current Sensor
Epro PR6424/010-010+CON021 16 mm Eddy Current Sensor
0.0
Points
Brand:Epro PLC Item No.:PR6424/010-010+CON021 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.32 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The EPRO PR6424/010-010+CON021 is a 16 mm eddy-current sensor system designed for high-reliability shaft displacement measurement in mission-critical rotating machinery. It provides continuous, high-resolution data that supports machinery protection systems and predictive maintenance strategies.
By combining a precision probe with a dedicated signal converter, it ensures stable performance in harsh industrial environments where accuracy and uptime are essential.
Technical Specifications
Parameter
Specification
Model
PR6424/010-010+CON021
Product Type
16 mm Eddy Current Sensor System
Sensor Head Diameter
16 mm
Measurement Principle
Eddy-current non-contact sensing
Signal Converter
CON021 module
Sensitivity
4 V/mm (±1.5%)
Linear Range
±2.0 mm
Dynamic Range
0 to 1000 µm
Operating Temperature
-35 to 180 °C
Target Material
Ferromagnetic steel
Frequency Response
Up to 20 kHz (system dependent)
Installation Type
Fixed industrial turbomachinery mounting
Weight
0.32 kg (0.71 lb)
Applications
The PR6424/010-010+CON021 system is widely used in turbomachinery where reliable non-contact measurement and signal conditioning are essential for asset protection and condition monitoring:
Steam and gas turbines in power generation plants
Centrifugal and axial compressors in oil & gas facilities
Industrial pumps and high-speed rotating machinery
Hydro turbines and generator systems
Fans, blowers, and heavy industrial rotating equipment
It is commonly integrated into API 670-compliant protection systems for continuous monitoring of rotating assets.
Advantages
Integrated probe + CON021 converter for stable signal processing
Strong resistance to vibration, temperature variation, and EMI noise
Stable long-term output for predictive maintenance systems
Suitable for radial and axial shaft displacement monitoring
Reliable 24/7 operation in harsh industrial environments
Optimized for critical turbomachinery protection applications
Technical FAQs
1. What is the function of the CON021 in this system?
It conditions and converts the raw probe signal into a stable output suitable for monitoring and control systems.
2. Does this system require physical contact with the shaft?
No, it uses eddy-current technology for fully non-contact measurement.
3. What type of machinery is it designed for?
It is designed for turbines, compressors, pumps, and other rotating machinery.
4. What parameters can it measure?
It measures shaft displacement, vibration, position, and eccentricity.
5. Can it be used in high-temperature environments?
Yes, it is engineered for demanding turbomachinery conditions with elevated temperatures.
6. Is it suitable for continuous operation?
Yes, it is designed for continuous 24/7 industrial monitoring.
7. What material targets does it measure best?
It is optimized for conductive ferromagnetic shafts such as steel.
8. Does it support axial and radial monitoring?
Yes, depending on installation configuration, both measurement types are supported.
9. How does it handle industrial electrical noise?
The CON021 module provides strong filtering and signal stability in noisy environments.
10. What is its role in predictive maintenance?
It helps detect early faults such as imbalance, misalignment, and bearing wear.
