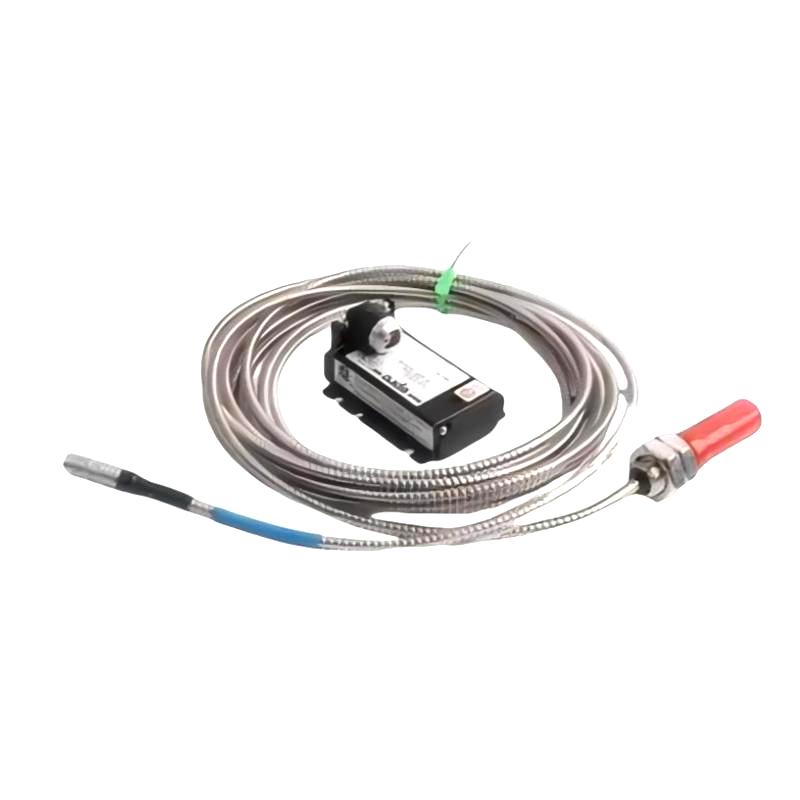

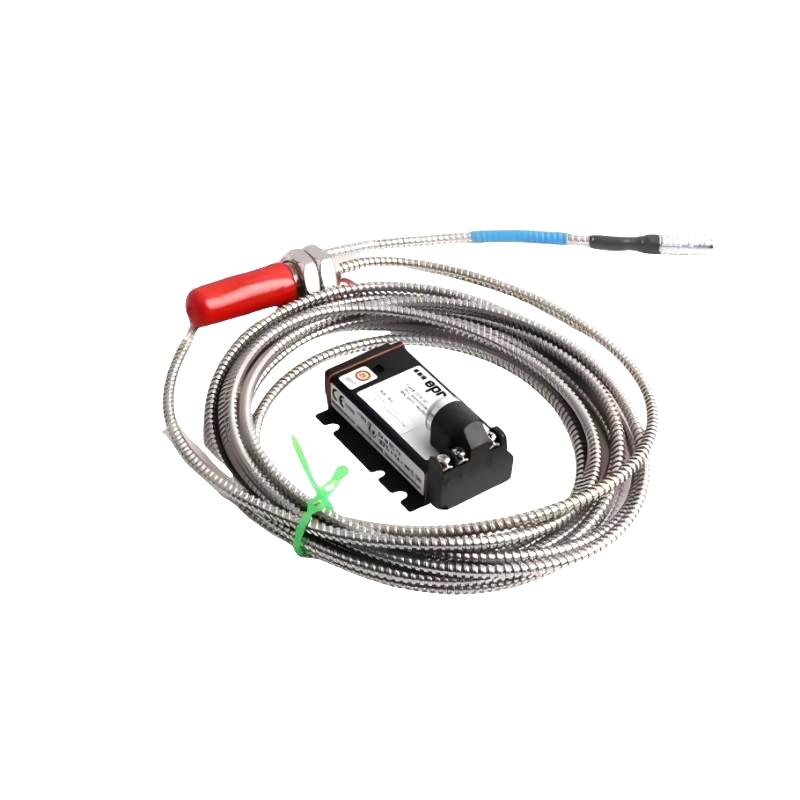

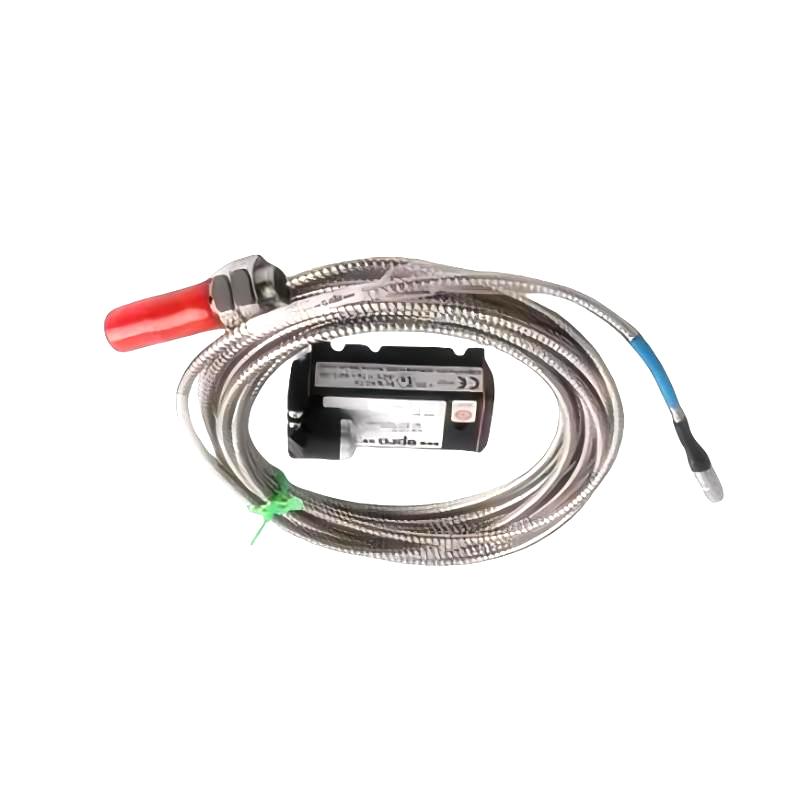

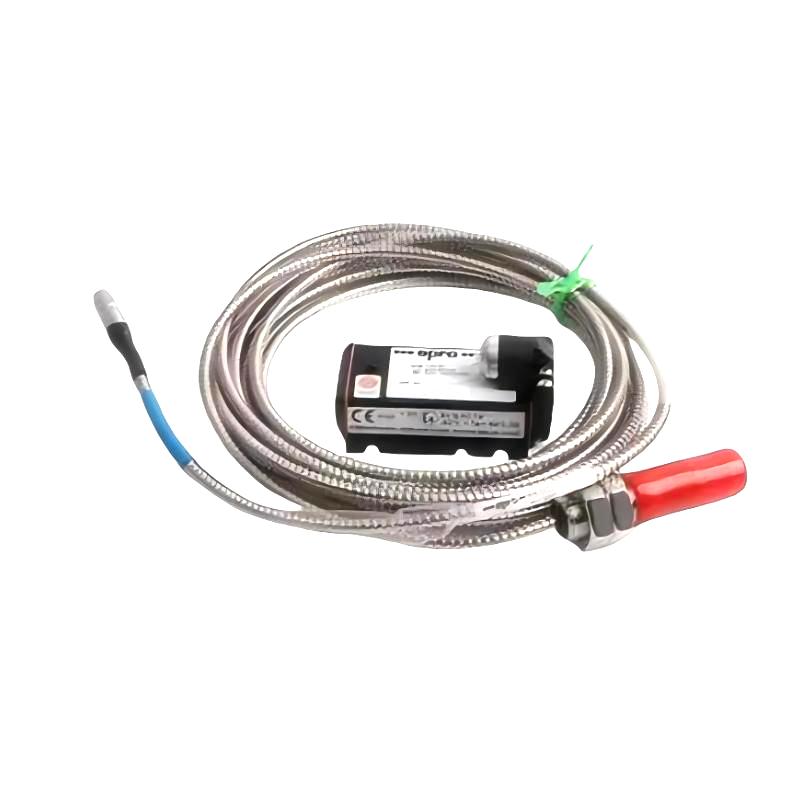

Epro PR6424/010-040+CON021/916-160 16 mm Eddy Current Sensor
Epro PR6424/010-040+CON021/916-160 16 mm Eddy Current Sensor
0.0
Points
Brand:Epro PLC Item No.:PR6424/010-040+CON021/916-160 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.32 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The EPRO PR6424/010-040+CON021/916-160 is a 16 mm eddy-current sensor system designed for advanced turbomachinery monitoring applications. The extended CON021 configuration enhances flexibility in signal conditioning, making it suitable for a wider range of industrial measurement scenarios.
It is widely deployed in critical asset monitoring systems where measurement stability, configurability, and long-term reliability are essential.
Technical Specifications
Parameter
Specification
Model
PR6424/010-040+CON021/916-160
Product Type
16 mm Eddy Current Sensor System
Sensor Head Diameter
16 mm
Measurement Principle
Eddy-current non-contact sensing
Converter Type
CON021/916-160 configuration
Sensitivity
4 V/mm (±1.5%)
Linear Range
±2.0 mm
Dynamic Range
0 to 1000 µm
Nominal Air Gap
~2.7 mm
Operating Temperature
-35 to 180 °C
Target Material
Ferromagnetic steel
Frequency Response
Up to 20 kHz (system dependent)
Installation Type
Fixed industrial turbomachinery mounting
Weight
0.32 kg (0.71 lb)
Applications
The PR6424/010-040+CON021/916-160 system is widely used in turbomachinery where stable signal conditioning and extended measurement configuration are required:
Steam and gas turbines in power generation plants
Centrifugal and axial compressors in oil & gas facilities
Industrial pumps and high-speed rotating equipment
Hydro turbine generator systems
Large rotating machinery in petrochemical and refinery plants
It is commonly used in protection-grade monitoring systems where configurable converter ranges are required for different shaft dynamics.
Strong resistance to vibration, temperature variation, and EMI interference
Stable long-term signal output for predictive maintenance systems
Flexible configuration for different displacement ranges
Suitable for continuous 24/7 industrial operation
Reliable performance in harsh turbomachinery environments
Technical FAQs
1. What does the “916-160” configuration indicate?
It indicates an extended-range CON021 configuration designed to support larger displacement measurement ranges in turbomachinery monitoring systems.
2. What is the function of the CON021 module in this system?
It conditions and converts the raw eddy-current probe signal into a stable output for monitoring and control systems.
3. What does this sensor measure?
It measures shaft displacement, vibration, position, and eccentricity.
4. Is it suitable for turbine applications?
Yes, it is widely used in steam, gas, and hydro turbine monitoring systems.
5. Does it require contact with the shaft?
No, it uses non-contact eddy-current sensing technology.
6. Can it operate in harsh environments?
Yes, it is designed for high temperature, vibration, and industrial contamination conditions.
7. What materials is it optimized for?
It is optimized for conductive ferromagnetic steel shafts.
8. Can it run continuously?
Yes, it is designed for 24/7 condition monitoring and protection systems.
9. Does it support axial and radial measurements?
Yes, depending on configuration, it supports both measurement directions.
10. What is its role in predictive maintenance?
It helps detect early mechanical faults such as imbalance, misalignment, and bearing wear.
