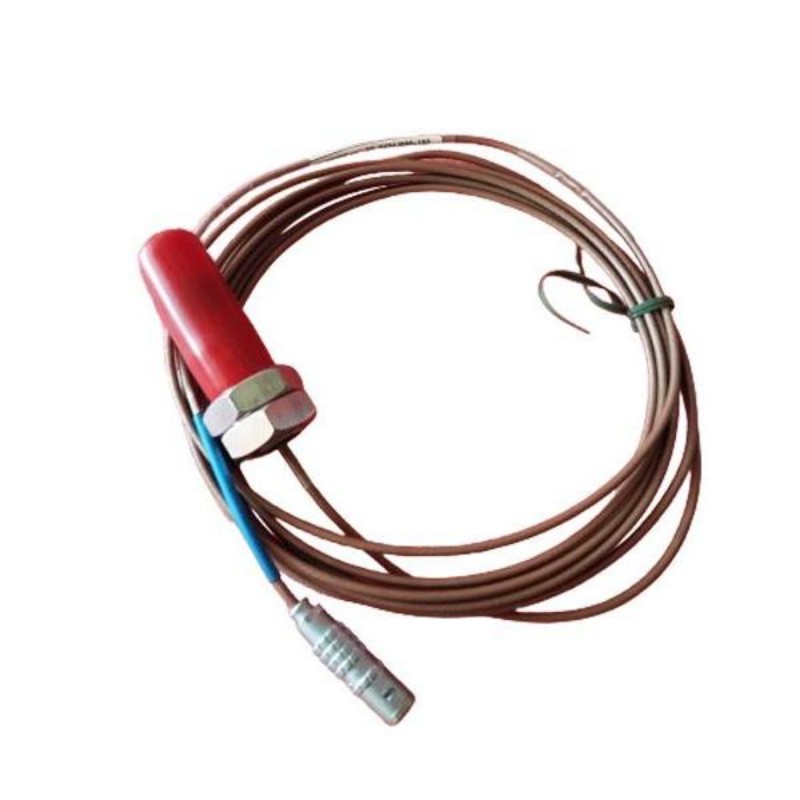

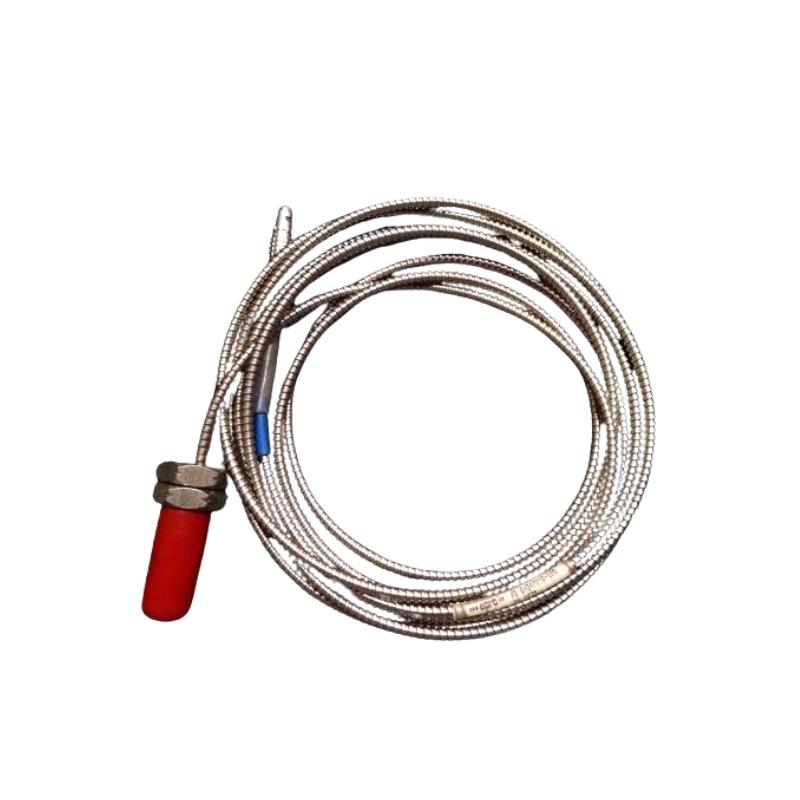

Epro PR6424/012-010+CON011 16 mm Eddy Current Sensor
Epro PR6424/012-010+CON011 16 mm Eddy Current Sensor
0.0
Points
Brand:Epro PLC Item No.:PR6424/012-010+CON011 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The EPRO PR6424/012-010+CON011 is a 16 mm eddy-current sensor system engineered for high-accuracy monitoring of rotating machinery. It combines a precision displacement probe with a dedicated CON011 signal converter to deliver stable, reliable measurement data in demanding industrial environments.
It is widely used in critical asset monitoring systems where measurement precision, operational safety, and long-term reliability are essential.
Technical Specifications
Parameter
Specification
Model
PR6424/012-010+CON011
Product Type
16 mm Eddy Current Sensor System
Sensor Head Diameter
16 mm
Measurement Principle
Eddy-current non-contact sensing
Signal Converter
CON011 module
Sensitivity
4 V/mm (±1.5%)
Linear Range
±2.0 mm
Dynamic Range
0 to 1000 µm
Nominal Air Gap
~2.7 mm
Operating Temperature
-35 to 180 °C
Target Material
Ferromagnetic steel
Frequency Response
Up to 20 kHz (system dependent)
Installation Type
Fixed industrial turbomachinery mounting
Weight
0.8 kg (1.76 lb)
Applications
The PR6424/012-010+CON011 system is widely used in turbomachinery environments where accurate and continuous shaft monitoring is required:
Steam and gas turbines in power generation plants
Centrifugal and axial compressors in oil & gas facilities
Industrial pumps and high-speed rotating machinery
Hydro turbine generator systems
Large rotating equipment in petrochemical and refinery plants
It is commonly integrated into API 670-aligned machinery protection systems for real-time condition monitoring and predictive maintenance.
Advantages
Integrated probe + CON011 converter ensures stable signal conditioning
Strong resistance to vibration, temperature variation, and EMI interference
Stable long-term performance for critical asset monitoring systems
Accurate detection of shaft displacement, vibration, and eccentricity
Suitable for continuous 24/7 industrial operation
Proven reliability in harsh turbomachinery environments
Technical FAQs

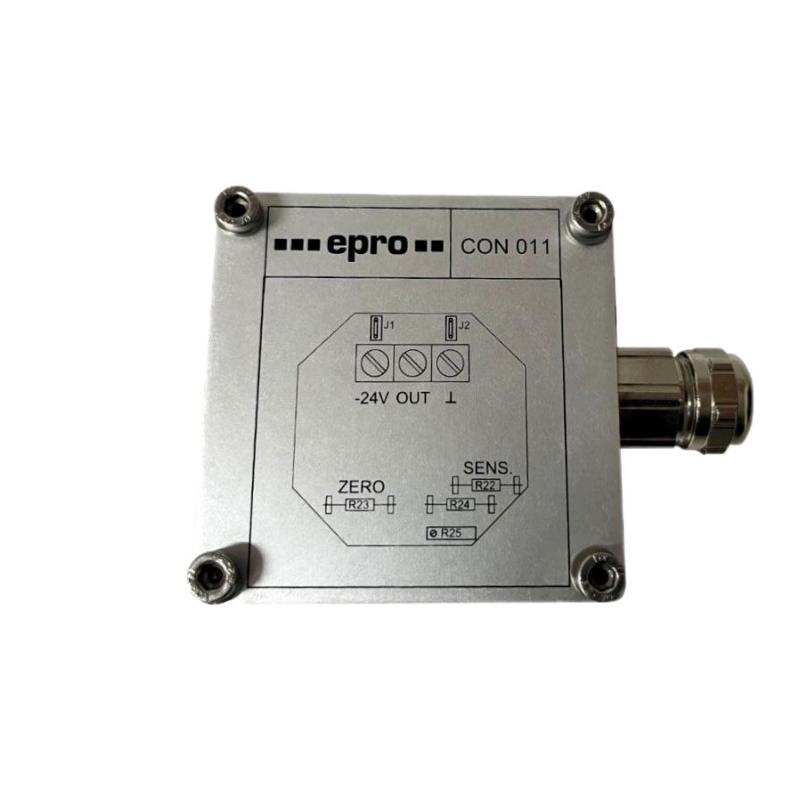

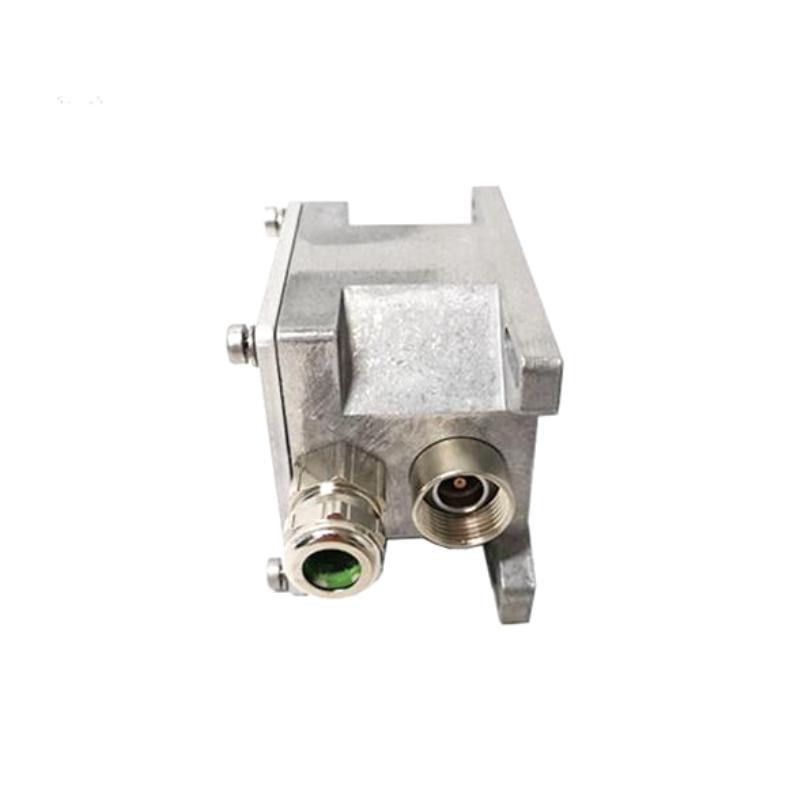

1. What is the function of the CON011 module in this system?
It converts the raw probe signal into a conditioned output suitable for monitoring and protection systems.
2. What does this sensor measure?
It measures shaft displacement, vibration, position, and eccentricity.
3. Is it suitable for turbine applications?
Yes, it is widely used in steam, gas, and hydro turbine monitoring systems.
4. Does it require physical contact with the shaft?
No, it operates using non-contact eddy-current sensing technology.
5. Can it handle harsh industrial environments?
Yes, it is designed for high temperature, vibration, and industrial contamination conditions.
6. Is it suitable for continuous monitoring?
Yes, it is intended for 24/7 condition monitoring systems.
7. What materials is it optimized for?
It is optimized for conductive ferromagnetic steel shafts.
8. Does it support axial and radial measurements?
Yes, depending on installation configuration, both measurement directions are supported.
9. How does it perform under electrical noise?
The CON011 module provides strong signal conditioning and noise suppression for stable output.
10. What is its role in predictive maintenance?
It enables early detection of faults such as imbalance, misalignment, and bearing wear.
