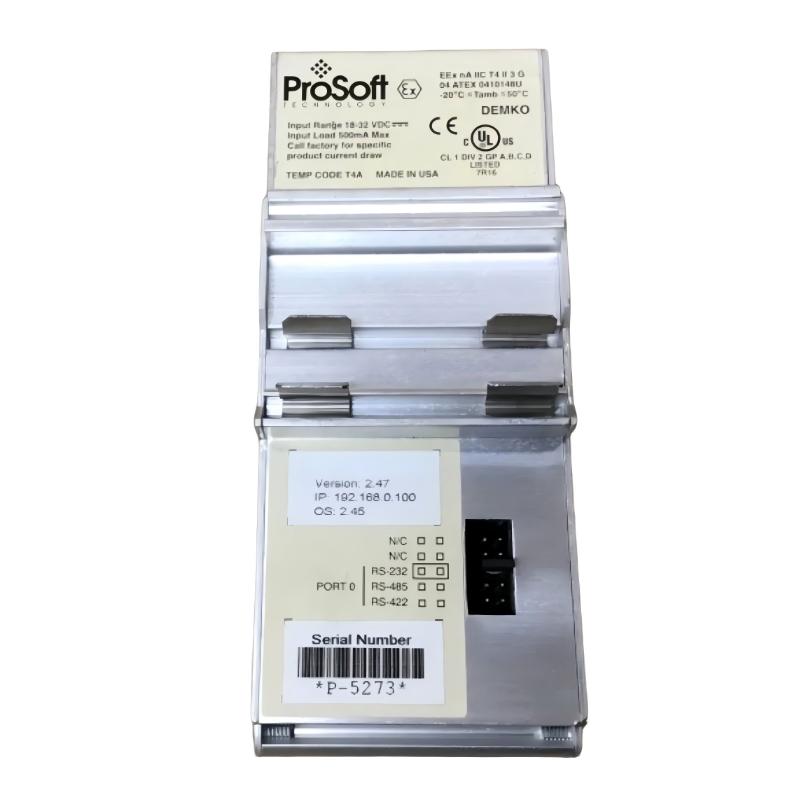

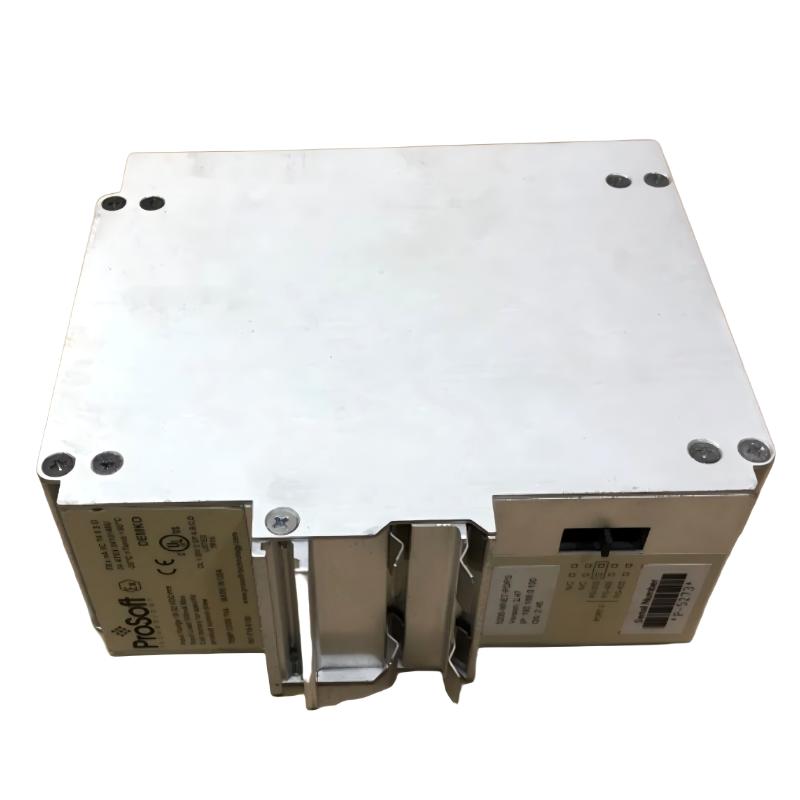

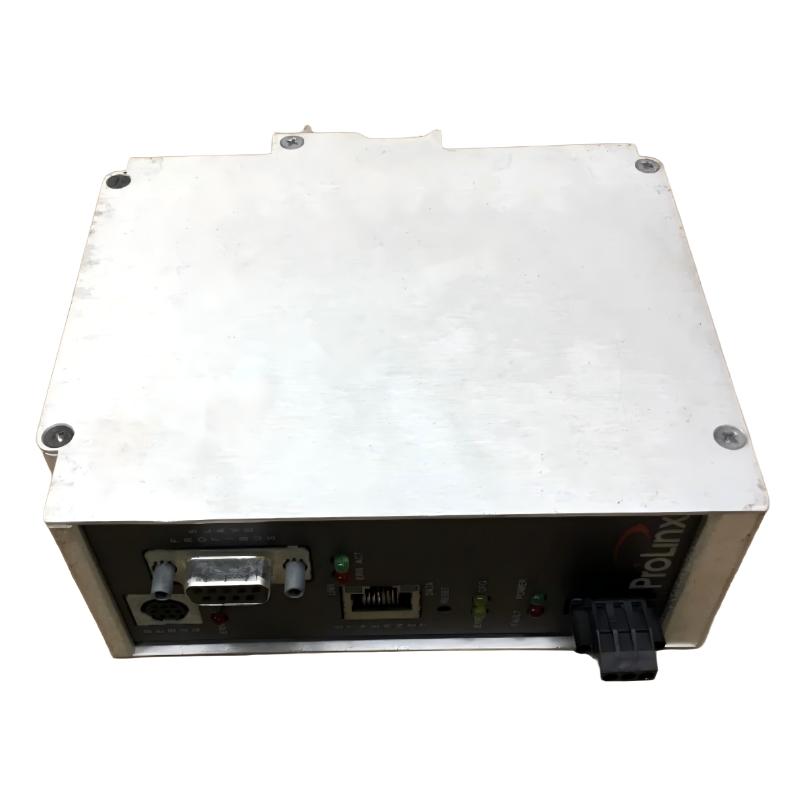

ProSoft 5301-MBP-DFCM Modbus Plus to DF1 Master/Slave Device

Applications

• In industrial automation systems, the module is used to bridge Modbus Plus networks with DF1-based Allen-Bradley PLCs, enabling communication between legacy and modern control architectures.

• It is deployed in retrofit projects where existing Modbus Plus networks must be integrated with RS-232/RS-485 DF1 serial devices without replacing the entire control system.

• In manufacturing plants, it is used to connect distributed PLC networks for data acquisition, machine coordination, and supervisory control across different communication protocols.

• It is applied in SCADA systems where data from Modbus Plus devices must be collected and translated into DF1 protocol for centralized monitoring and control.

• It is suitable for industrial modernization projects where heterogeneous PLC systems need seamless protocol conversion to maintain operational continuity.

Key Advantages

• It enables reliable protocol conversion between Modbus Plus and DF1, allowing seamless integration of legacy and modern industrial networks.

• It reduces system upgrade costs by eliminating the need to replace existing PLC hardware during communication migration projects.

• It supports stable and deterministic industrial communication, ensuring consistent data transfer between different control platforms.

• It simplifies network architecture by acting as a dedicated gateway device, reducing engineering complexity in multi-protocol environments.

• It is designed for industrial reliability, ensuring continuous operation in control cabinets and harsh automation environments.

Technical FAQs

1. What is the main function of this device?
It converts communication between Modbus Plus and DF1 protocols.

2. Which systems does it connect?
It connects Modbus Plus networks with DF1-based PLC systems.

3. Is it used in retrofit projects?
Yes, it is commonly used to modernize legacy automation systems.

4. Does it require PLC replacement?
No, it allows integration without replacing existing PLC hardware.

5. What communication types does it support?
It supports Modbus Plus and DF1 serial communication.

6. Where is it commonly used?
It is used in manufacturing, process automation, and SCADA systems.

7. Can it be used in SCADA systems?
Yes, it is widely used for data acquisition and protocol conversion in SCADA.

8. Is it suitable for continuous operation?
Yes, it is designed for industrial continuous-duty environments.

9. Does it simplify network architecture?
Yes, it reduces complexity by acting as a dedicated gateway device.

10. What is its main benefit in industrial plants?
It enables communication between otherwise incompatible PLC systems.
