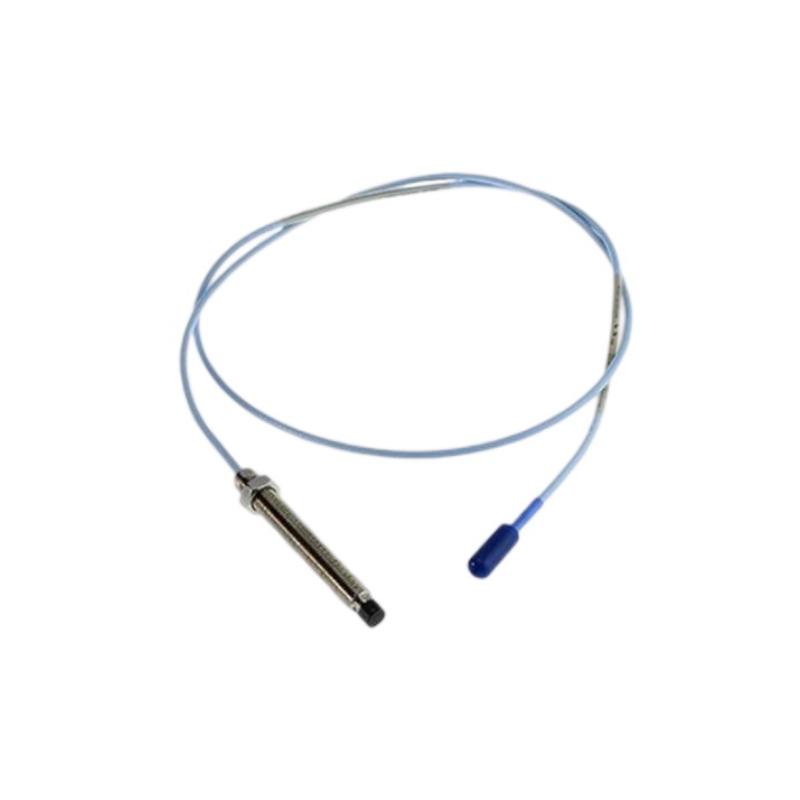

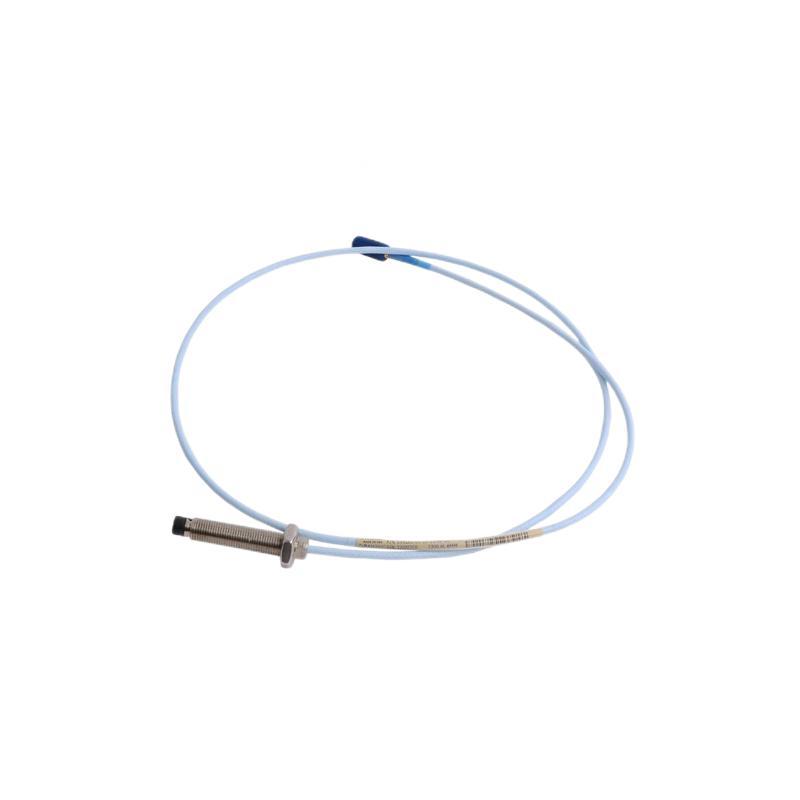

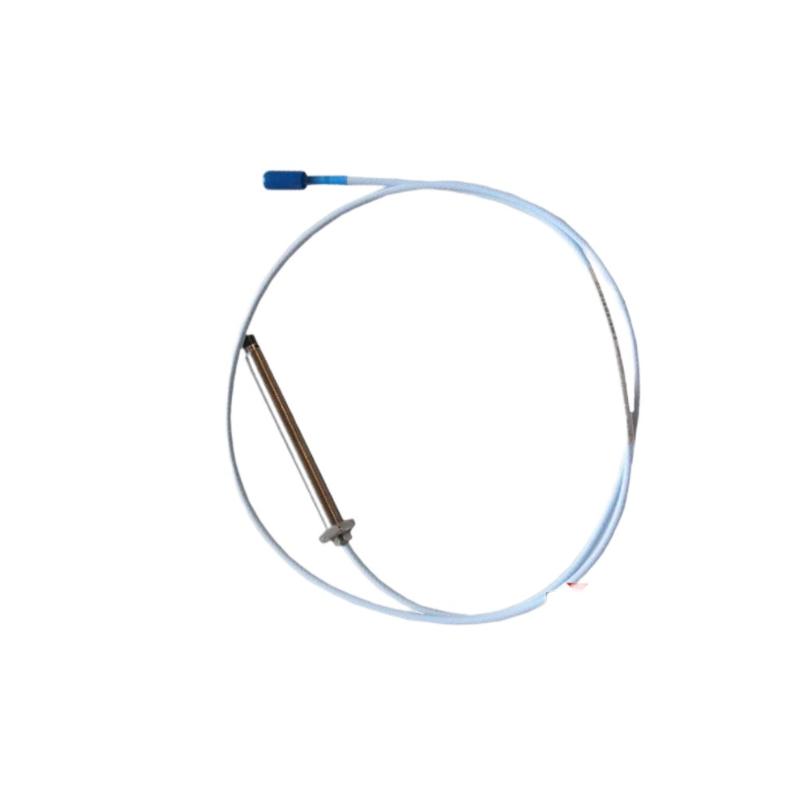

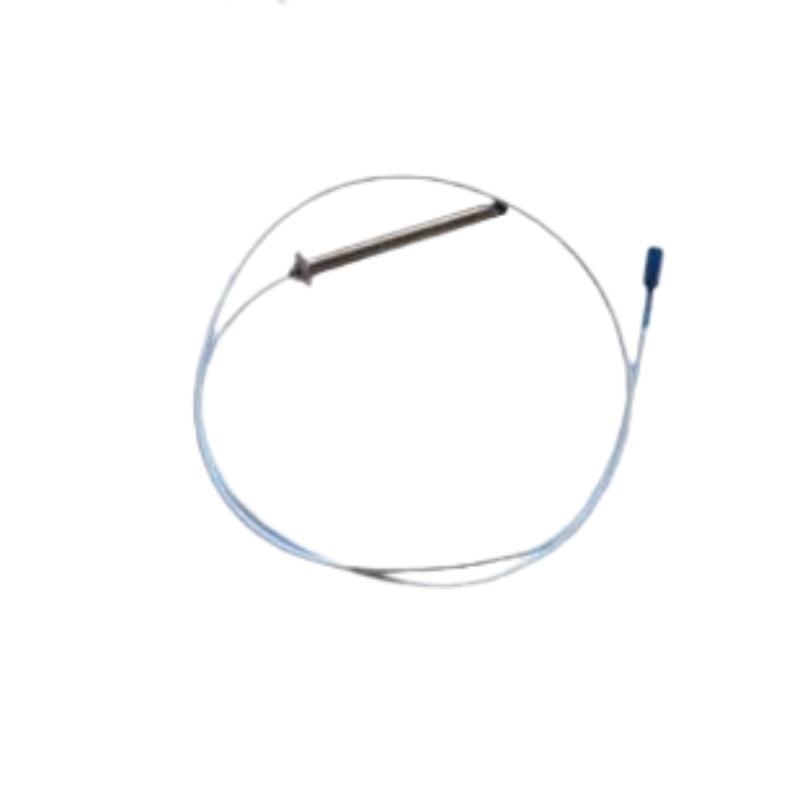

The Bently Nevada 330103-09-15-05-02-00 is a 3300 XL 8 mm Proximity Probe Module designed for accurate, non-contact measurement of shaft vibration, radial displacement, axial position, and rotor dynamic behavior in rotating machinery.
This configuration includes a “09” probe body class, a 150 mm probe length option, a 0.5-meter integral cable, and a “02” ClickLoc™ connector configuration, making it suitable for compact installations that require extended probe reach with shorter cable routing and stable signal integrity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330103-09-15-05-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe Module |
| Measurement Technology | Eddy Current (Non-Contact) |
| Probe Diameter | 8 mm |
| Probe Body Class | 09 (extended-standard configuration class) |
| Probe Length Option | 150 mm |
| Integral Cable Length | 0.5 m |
| Connector Type | Miniature ClickLoc™ Connector |
| Configuration Code | 02 |
| Thread Specification | M10 × 1 |
| Probe Case Material | Stainless Steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Approval Option | 00 (Standard Industrial Version) |
| System Compatibility | Bently Nevada 3300 XL Proximitor® Systems |
Dimensions & Weight
| Item | Specification |
|---|---|
| Probe Body Length | ~150 mm class |
| Probe Diameter | 8 mm |
| Cable Length | 500 mm |
| Approximate Net Weight | ~0.32–0.34 kg |
| Approximate Shipping Weight | ~2.0 kg |
| Package Dimensions | ~280 × 180 × 80 mm |
Designed for Extended Reach with Compact Cabling
The 330103-09-15-05-02-00 is optimized for machinery where deeper probe insertion is required, but installation space for cable routing is limited.
The 150 mm probe length makes it suitable for:
- Steam turbine bearing housings
- Gas turbine auxiliary systems
- Centrifugal compressors
- Large industrial pumps
- Gearbox and drivetrain monitoring points
- Generator shaft displacement measurement
The eddy-current sensing system ensures stable and high-resolution measurement even in harsh industrial environments involving vibration, oil mist, and thermal variation.
Recommended Related Models
| Model | Description |
|---|---|
| 330103-08-15-05-02-00 | Lower body class version |
| 330103-09-14-05-02-00 | Shorter probe version |
| 330103-09-16-05-02-00 | Longer probe version |
| 330103-09-15-10-02-00 | 1.0 m cable variant |
| 330180-90-00 | Proximitor sensor |
Common Bently Nevada Product Ecosystem
- 330103 Series – 8 mm proximity probes
- 330180 Series – Proximitor sensors
- 330130 Series – Extension cable assemblies
- 3500/42M – Vibration monitoring module
- 3500/25 – Keyphasor module
- 3500/15 – Power supply module
