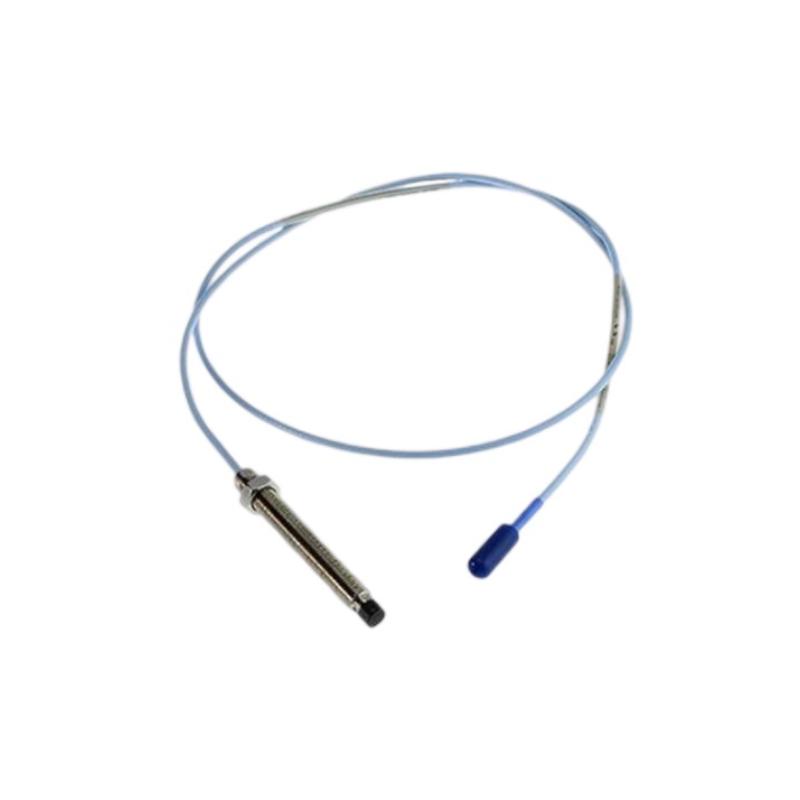

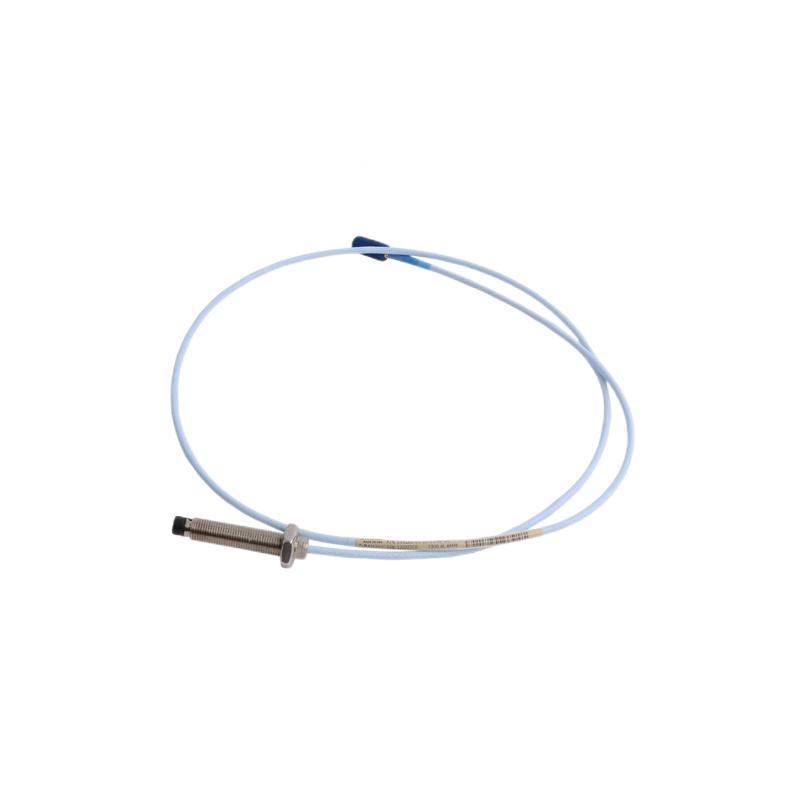

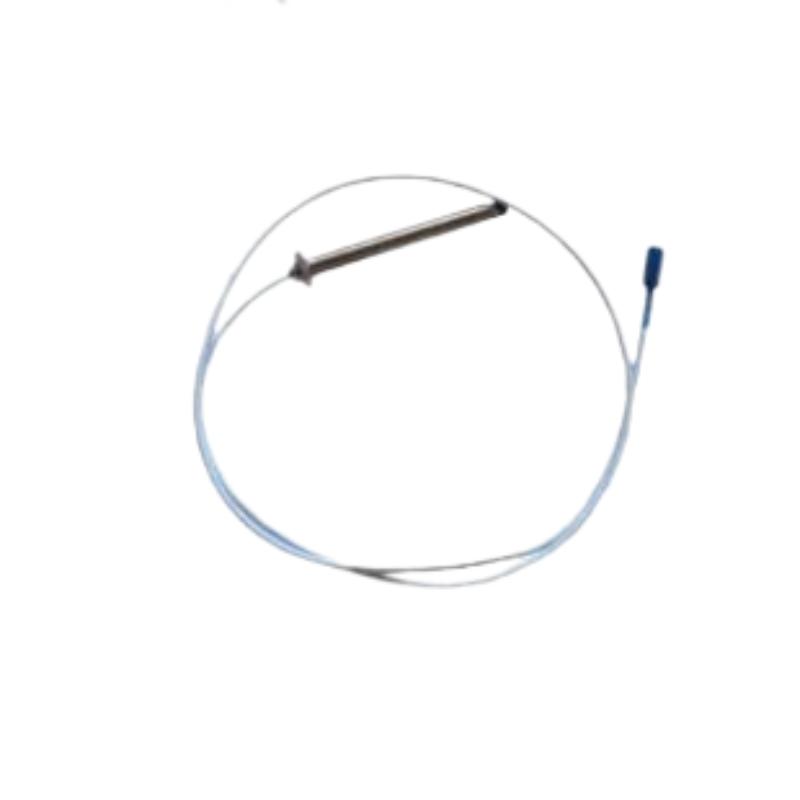

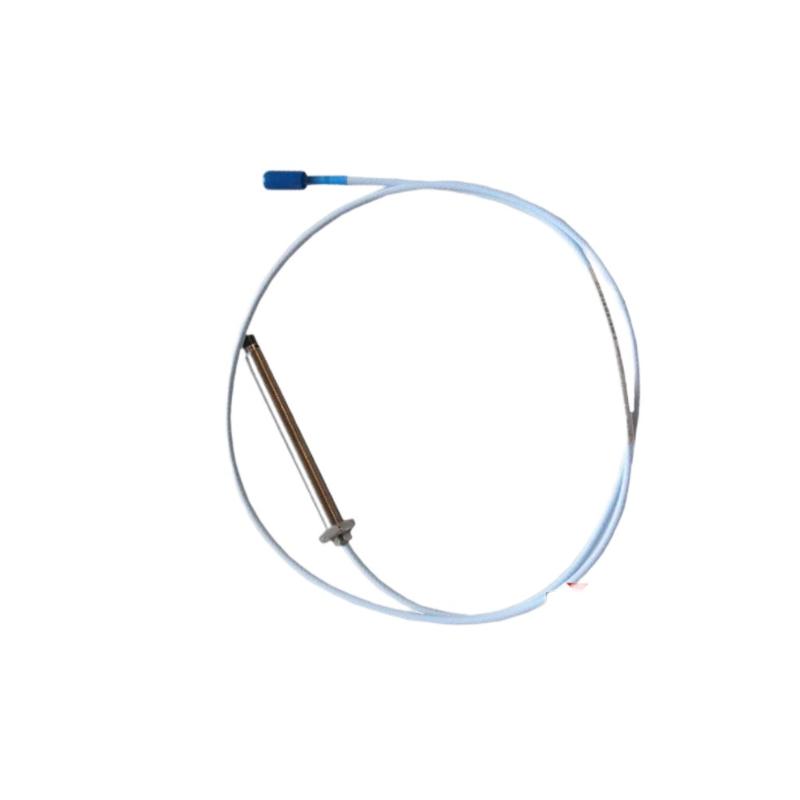

The Bently Nevada 330103-10-14-10-02-05 is a 3300 XL 8 mm Proximity Probe Module designed for accurate, non-contact measurement of shaft vibration, radial displacement, axial position, and rotor dynamics in rotating machinery systems.
This configuration includes a “10” extended probe body class, a 140 mm probe length option, a 1.0-meter integral cable, a “02” ClickLoc™ connector configuration, and a “05” certified approval variant (CSA/ATEX/IECEx-type compliance), making it suitable for regulated industrial environments requiring both standard installation depth and hazardous-area certification.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330103-10-14-10-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe Module |
| Measurement Technology | Eddy Current (Non-Contact) |
| Probe Diameter | 8 mm |
| Probe Body Class | 10 (extended configuration class) |
| Probe Length Option | 140 mm |
| Integral Cable Length | 1.0 m |
| Connector Type | Miniature ClickLoc™ Connector |
| Configuration Code | 02 |
| Thread Specification | M10 × 1 |
| Probe Case Material | Stainless Steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Approval Option | 05 (CSA / ATEX / IECEx-type certified variant) |
| System Compatibility | Bently Nevada 3300 XL Proximitor® Systems |
Dimensions & Weight
| Item | Specification |
|---|---|
| Probe Body Length | ~140 mm class |
| Probe Diameter | 8 mm |
| Cable Length | 1000 mm |
| Approximate Net Weight | ~0.32–0.34 kg |
| Approximate Shipping Weight | ~2.0 kg |
| Package Dimensions | ~280 × 180 × 80 mm |
Designed for Certified Industrial Monitoring Applications
The 330103-10-14-10-02-05 is optimized for machinery installations requiring:
- Medium-depth probe mounting (140 mm reach)
- Standard 1.0 m cable routing
- Hazardous-area or regulatory certification compliance (05 variant)
It is commonly used in:
- Steam turbine bearing systems
- Gas turbine monitoring assemblies
- Centrifugal compressors
- Industrial pump packages
- Gearbox and drivetrain monitoring points
- Generator shaft displacement systems
The eddy-current sensing technology ensures stable performance in harsh environments with vibration, oil mist, humidity, and temperature fluctuations.
Recommended Related Models
| Model | Description |
|---|---|
| 330103-09-14-10-02-05 | Lower body class version |
| 330103-10-13-10-02-05 | Shorter probe version |
| 330103-10-15-10-02-05 | Longer probe version |
| 330103-10-14-05-02-05 | 0.5 m cable variant |
| 330180-90-00 | Proximitor sensor |
Common Bently Nevada Product Ecosystem
- 330103 Series – 8 mm proximity probes
- 330180 Series – Proximitor sensors
- 330130 Series – Extension cable assemblies
- 3500/42M – Vibration monitoring module
- 3500/25 – Keyphasor module
- 3500/15 – Power supply module
