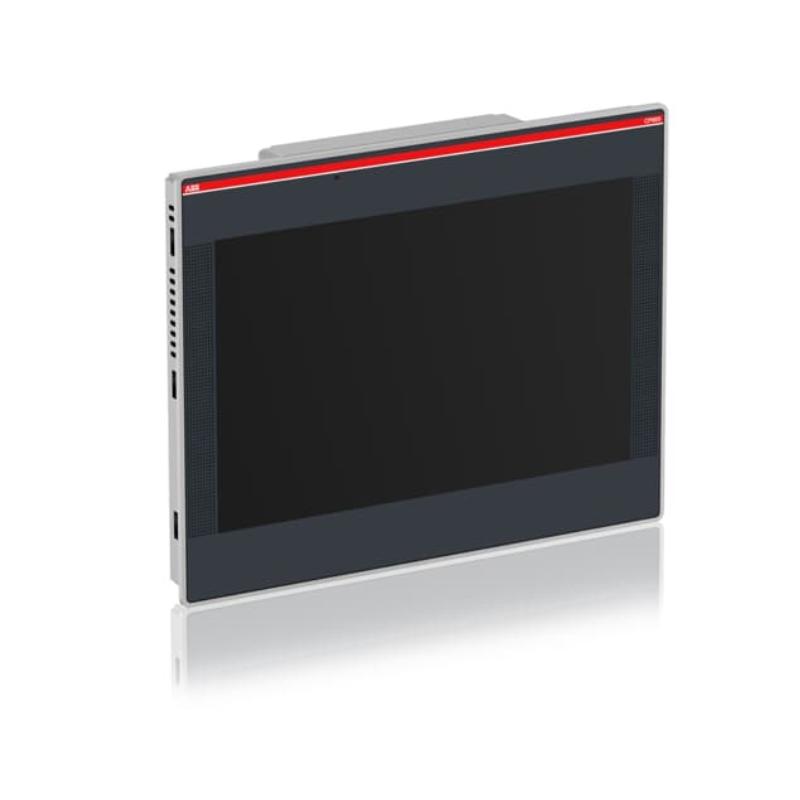

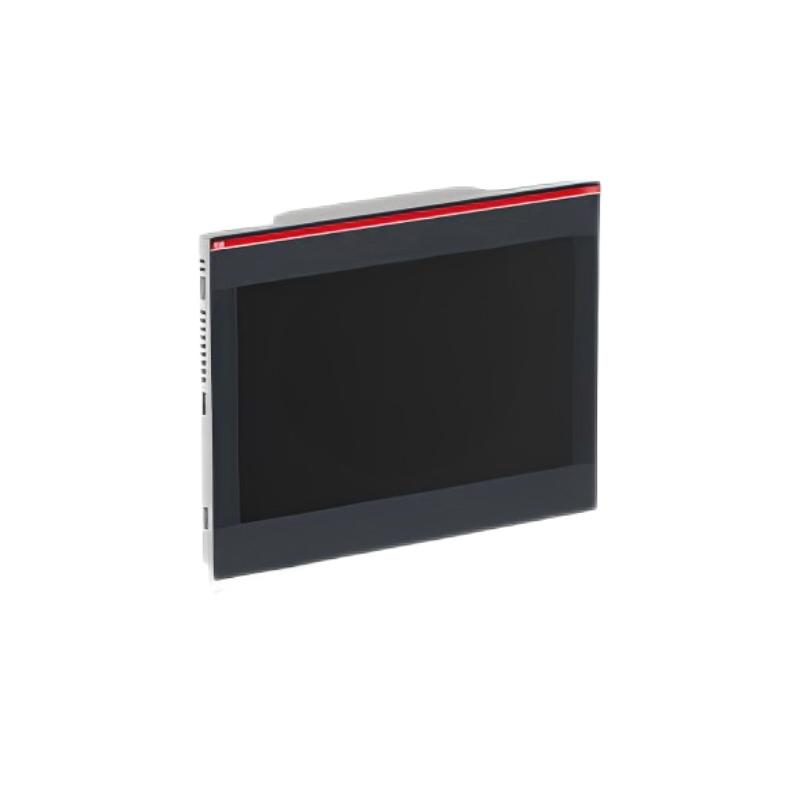

CP665-WEB 1SAP565200R0001

The ABB CP665 Communication Module is an advanced communication interface designed to integrate seamlessly into ABB's automation systems, offering superior data transfer capabilities for industrial applications. As part of the ABB control ecosystem, the CP665 facilitates high-speed communication across networks, ensuring that automation systems perform at their peak efficiency. With multi-protocol support and robust design, the CP665 is engineered to handle complex, high-demand environments where uptime and reliability are paramount.

Ideal for both new installations and system upgrades, the CP665 ensures a reliable connection between control systems, field devices, and supervisory equipment. Whether you're working with SCADA systems, distributed control systems, or IoT-enabled devices, the CP665 offers the connectivity needed to streamline operations and improve productivity.

Technical Specifications

Feature	Specification
Model Number	ABB CP665
Module Type	Communication Module
Ethernet Ports	2 x 10/100/1000 Mbps Ethernet Ports
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Mounting Type	DIN Rail or Panel Mount
Weight	0.60 kg (1.32 lbs)
Dimensions (H x W x D)	130 mm x 40 mm x 100 mm (5.12 in x 1.57 in x 3.94 in)
Input Voltage	24V DC ±20%
Power Consumption	5.0 W
Supported Protocols	Modbus TCP, EtherNet/IP, OPC UA, MQTT, Profibus

Recommended Related Models

ABB AI860 Analog Input Module
Perfect for integrating high-accuracy analog signals with the CP665 for enhanced process monitoring.
ABB DO860 Digital Output Module
A reliable output module for managing field devices like actuators or relays.
ABB DI810 Digital Input Module
Ideal for applications requiring reliable and fast digital input readings.

Popular ABB Models

ABB AC500 PLC
A powerful and flexible PLC for complex automation tasks, integrating perfectly with the CP665.
ABB CP650 Communication Processor
A smaller, yet highly capable communication processor, ideal for less demanding applications or as a backup in multi-processor systems.
ABB AI830 Analog Input Module
Designed for precision analog control, seamlessly working with the CP665 for high-fidelity signal processing.

Applications

The ABB CP665 is designed to be versatile, supporting a wide range of applications where communication between devices and systems is crucial. Some common use cases include:

Factory and Process Automation
Connects PLCs, sensors, and actuators to ensure that automated manufacturing processes run smoothly, with reliable, real-time data exchange.
Building Automation
Integrates building systems such as HVAC, security, and lighting to centralize management and improve energy efficiency.
Remote Monitoring and Control
Enables monitoring of equipment and systems from remote locations, enhancing diagnostic capabilities and reducing maintenance time.
Distributed Control Systems (DCS)
Facilitates communication between geographically spread-out controllers, optimizing process control for industries like oil and gas, chemicals, and power generation.

Advantages

High-Speed Ethernet Communication
With 10/100/1000 Mbps Ethernet ports, the CP665 ensures fast and reliable communication, crucial for high-demand industrial networks.
Multi-Protocol Support
Supporting various protocols like Modbus TCP, EtherNet/IP, OPC UA, MQTT, and Profibus, the CP665 provides extensive compatibility with a wide range of devices and networks.
Compact and Robust Design
Designed to operate in challenging industrial environments, the CP665 features a rugged housing and can handle extreme temperatures, vibrations, and other harsh conditions.
Energy-Efficient Operation
With a power consumption of just 5.0 W, the CP665 offers low operational costs while maintaining high-performance communication.
Flexible Mounting Options
The module can be mounted either on a DIN rail or directly on a panel, making it suitable for various installation configurations.

Technical FAQs

What are the main communication protocols supported by the CP665?
The CP665 supports Modbus TCP, EtherNet/IP, OPC UA, MQTT, and Profibus, ensuring compatibility with many industrial devices.
Can the CP665 be used in hazardous environments?
While the CP665 is designed for industrial environments, please consult with ABB for certifications and suitability in specific hazardous conditions.
What is the maximum power consumption of the CP665?
The CP665 consumes a maximum of 5.0 W of power, making it energy-efficient for continuous operation.
How does the CP665 integrate with ABB PLCs?
The CP665 integrates seamlessly with ABB’s PLCs, especially the AC500 series, facilitating smooth communication across various system components.
What are the mounting options for the CP665?
The CP665 can be mounted on a DIN rail or directly on a panel, allowing for flexible installation in different setups.
Can the CP665 handle remote communication and monitoring?
Yes, the CP665 is ideal for remote communication and monitoring, enabling real-time system diagnostics and status updates.
What is the operating temperature range of the CP665?
The CP665 operates within a temperature range of -20°C to 60°C (-4°F to 140°F), suitable for most industrial environments.
Does the CP665 support Ethernet redundancy for network reliability?
Yes, the CP665 supports Ethernet redundancy configurations, ensuring high availability and network reliability.
Can the CP665 handle large-scale industrial networks?
Yes, with its high-speed Ethernet ports and multi-protocol support, the CP665 is suitable for large-scale networks with numerous devices and high data demands.
What is the warranty period for the ABB CP665?
The CP665 typically comes with a 1-year manufacturer warranty, though this may vary depending on your distributor.
