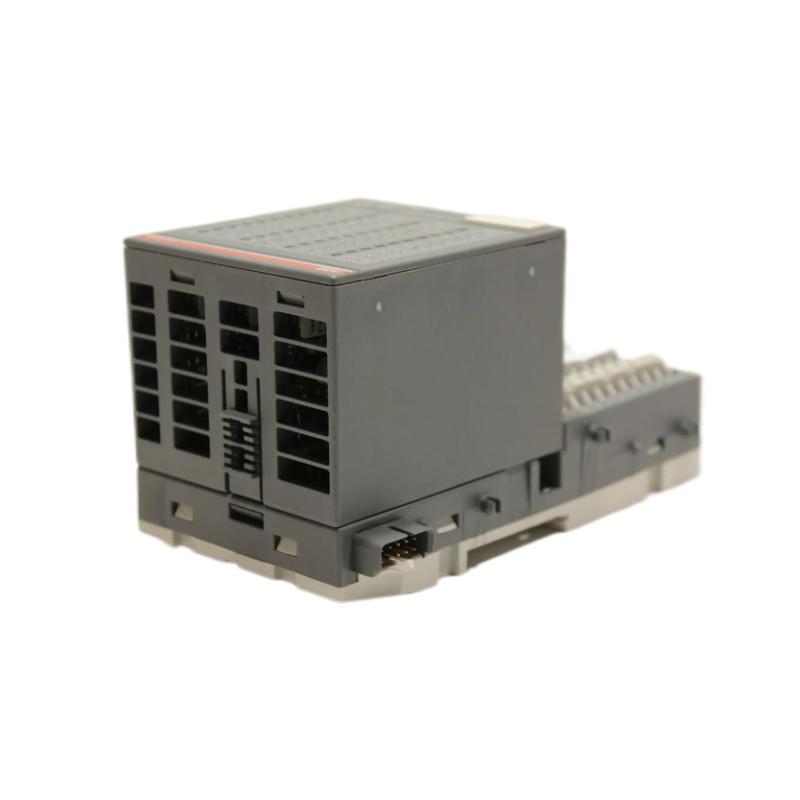

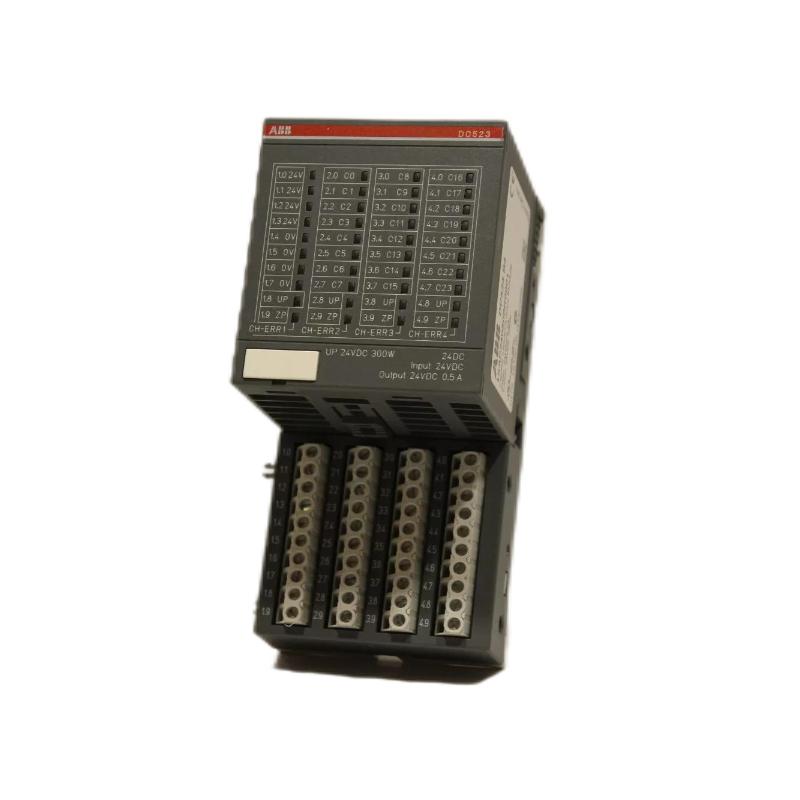

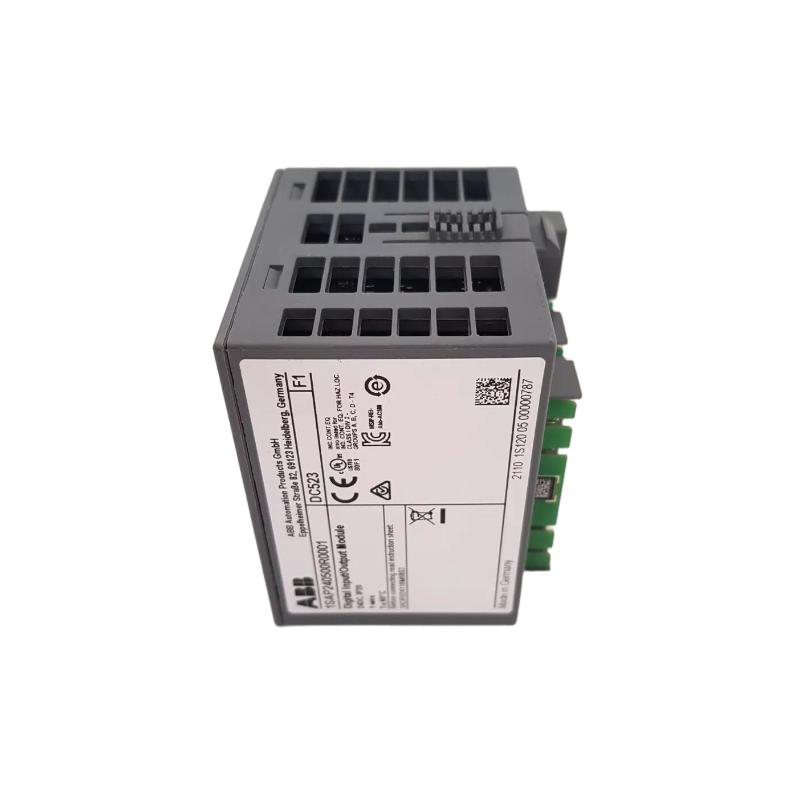

The ABB DC523 Digital Input/Output Module is designed to provide high-speed and reliable control in industrial automation systems. It enables seamless interaction between field devices and the central control system by offering robust digital input and output capabilities. As part of ABB's comprehensive portfolio of automation products, the DC523 is built for industries that demand precision, reliability, and flexibility.

Whether you're controlling machines, sensors, or actuators, the DC523 ensures high performance and integration efficiency. With a compact design and advanced features, this module is ideal for a wide range of applications, including manufacturing, energy management, and infrastructure monitoring. Its robust design guarantees long-term durability, even in the most demanding industrial environments.

Technical Specifications

Feature	Specification
Model	ABB DC523 Digital I/O Module
I/O Type	Digital Inputs and Outputs
Communication Interface	Ethernet, RS485
Operating Voltage	24V DC
Dimensions (WxHxD)	170mm x 120mm x 55mm
Weight	0.9 kg
Temperature Range	-20°C to 70°C
Mounting Type	DIN Rail
Input Channels	16 Digital Inputs
Output Channels	16 Digital Outputs

The DC523 module offers 16 digital inputs and 16 digital outputs, providing ample capacity for controlling devices such as sensors, relays, and actuators. Its compatibility with common industrial communication protocols ensures smooth and fast data exchange, which is essential for critical operations.

Recommended Related Models

ABB DA500 Communication Module – Enhances communication capabilities and ensures fast, reliable data transmission between the DC523 and other system components.
ABB DA502 Power Supply Module – Supplies stable power to the DC523 and other connected modules, ensuring smooth operations.
ABB DA510 I/O Expansion Module – Provides additional input/output channels, expanding the control capabilities of your system.

Popular Allen Bradley Models

Allen Bradley 1756-IB16 Digital Input Module – High-density digital input module for use in larger control systems.
Allen Bradley 1746-OA16 Digital Output Module – Reliable digital output module for controlling devices like relays and actuators.
Allen Bradley 1756-OB16 Digital Output Module – Provides high-density digital outputs for advanced control systems.

Applications

The ABB DC523 Digital Input/Output Module is suitable for various industrial applications where precise control of digital devices is required:

Manufacturing Automation – Controls machinery, production lines, and assembly processes, enhancing productivity and efficiency.
Energy Management – Monitors and controls equipment in power plants, substations, and renewable energy installations.
Oil & Gas – Provides control over critical operations such as pumps, valves, and pressure sensors.
Water Treatment – Ensures accurate monitoring and control of water filtration systems, pumps, and valves.
Building Automation – Integrates into building management systems (BMS) for controlling HVAC, lighting, and security systems.

The DC523 is designed to improve system accuracy, increase uptime, and provide continuous monitoring and control in a range of industrial environments.

Advantages

High-Density I/O – With 16 digital inputs and 16 digital outputs, the DC523 offers a compact solution for systems with large I/O requirements.
Flexible Integration – Seamlessly integrates with ABB’s other automation components as well as third-party devices, enabling easy system expansion and upgrades.
Durable and Reliable – Built to operate in harsh industrial conditions, the DC523 performs reliably across a wide temperature range of -20°C to 70°C.
Space-Efficient Design – The compact dimensions of 170mm x 120mm x 55mm make the DC523 an ideal solution for installations with limited space.
Easy Installation – The module is designed for DIN rail mounting, allowing for quick and secure installation.

Technical FAQs

How many digital inputs and outputs does the DC523 have?
The DC523 module offers 16 digital inputs and 16 digital outputs, making it ideal for controlling a wide range of devices.
What is the operating voltage for the DC523?
The DC523 operates on a 24V DC power supply, which is standard for many industrial automation systems.
How does the DC523 integrate with existing automation systems?
The DC523 integrates easily with ABB systems and other third-party devices using Ethernet or RS485 communication protocols.
What is the temperature range of the DC523 module?
The DC523 operates in a wide temperature range of -20°C to 70°C, making it suitable for a variety of industrial environments.
What is the weight of the DC523 I/O Module?
The DC523 weighs 0.9 kg, ensuring it's lightweight yet robust for industrial applications.
Can the DC523 module be used for remote monitoring?
Yes, the DC523 can be used for remote monitoring and control applications, allowing for real-time data access and system diagnostics.
How is the DC523 mounted?
The module is designed for easy DIN rail mounting, ensuring quick and secure installation in control panels.
What are the communication interfaces supported by the DC523?
The DC523 supports Ethernet and RS485 communication protocols, allowing for flexible and reliable communication with other system components.
Can the DC523 be expanded with additional modules?
Yes, you can expand the DC523’s I/O capacity using ABB’s I/O expansion modules, such as the DA510.
What types of devices can the DC523 control?
The DC523 can control a wide variety of digital devices, such as sensors, actuators, valves, motors, and relays.
