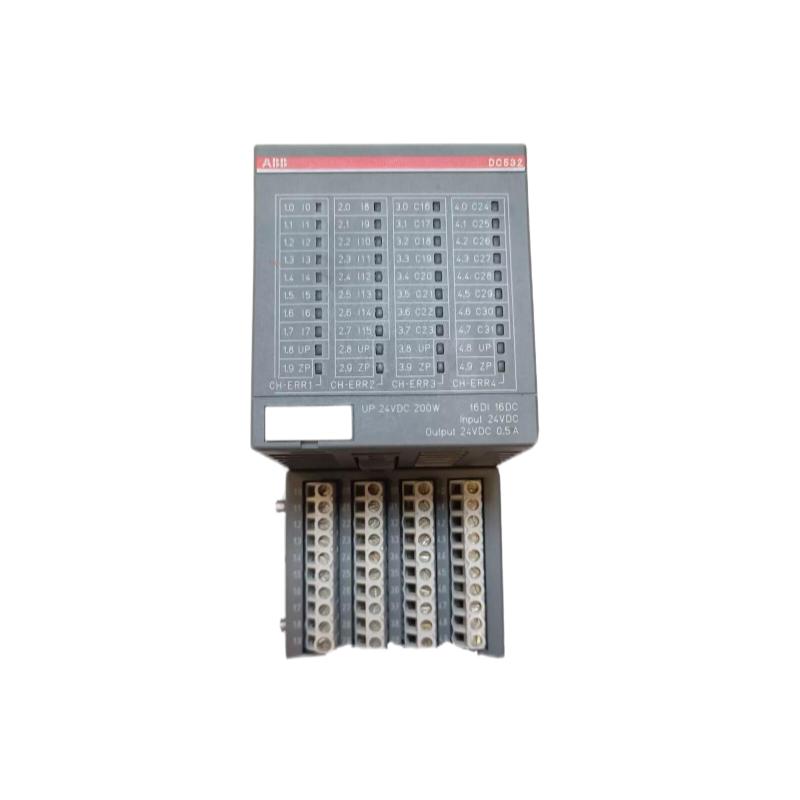

The ABB DC532 Digital Input/Output Module is a high-performance component designed to streamline the interaction between industrial control systems and field devices. Offering both digital input and output capabilities, this module provides a robust solution for industries that require precise monitoring and control. Whether you are automating machinery, managing energy distribution, or controlling environmental systems, the DC532 is engineered for superior reliability and versatility.

With its advanced features, the DC532 ensures seamless integration into ABB’s broader automation ecosystem. The module is specifically designed to deliver high-density I/O control in both harsh industrial environments and space-constrained installations, making it an ideal choice for a wide variety of industrial applications.

Technical Specifications

Feature	Specification
Model	ABB DC532 Digital I/O Module
I/O Type	Digital Inputs and Outputs
Communication Interface	Ethernet, RS485
Operating Voltage	24V DC
Dimensions (WxHxD)	180mm x 130mm x 55mm
Weight	1.0 kg
Temperature Range	-20°C to 70°C
Mounting Type	DIN Rail
Input Channels	16 Digital Inputs
Output Channels	16 Digital Outputs

The DC532 offers 16 digital inputs and 16 digital outputs, providing a compact yet powerful solution for controlling a variety of field devices, including sensors, relays, and actuators. With its robust design, this module ensures reliable operation even in harsh conditions, making it ideal for critical industrial processes.

Recommended Related Models

ABB DA500 Communication Module – Enhances communication between the DC532 and other devices, ensuring fast, reliable data transfer across networks.
ABB DA502 Power Supply Module – Provides the necessary power for the stable operation of the DC532 and other connected components in the automation system.
ABB DA510 I/O Expansion Module – Expands I/O capacity for larger or more complex systems that require additional input/output channels.

Popular Allen Bradley Models

Allen Bradley 1756-IB16 Digital Input Module – Offers high-density digital inputs for large-scale systems.
Allen Bradley 1746-OA16 Digital Output Module – Provides additional digital output capacity to control various industrial devices.
Allen Bradley 1756-OB16 Digital Output Module – A high-performance digital output module for large control systems.

Applications

The ABB DC532 Digital I/O Module is suitable for a wide range of industrial applications that require precise and reliable digital control:

Manufacturing Automation – Controls and monitors machinery, production lines, and material handling systems to improve throughput and efficiency.
Energy Management Systems – Monitors and controls equipment in power plants, substations, and energy distribution networks.
Oil & Gas – Ensures real-time monitoring and control of critical operations, including pumps, valves, and pressure sensors.
Water Treatment – Facilitates precise control of pumps, valves, and filtration systems to ensure water quality and compliance with regulatory standards.
Building Automation – Manages HVAC systems, lighting, security, and other building services for optimized energy use and occupant comfort.

The DC532 is an excellent choice for any application requiring fast, reliable, and scalable digital I/O control.

Advantages

High-Density I/O – The DC532 offers 16 digital inputs and 16 digital outputs, allowing for control of a large number of devices in a compact footprint.
Reliable Performance – Built to withstand harsh industrial conditions, the module operates efficiently within a wide temperature range of -20°C to 70°C.
Space-Efficient Design – With dimensions of 180mm x 130mm x 55mm, the DC532 is designed to fit into space-constrained control panels while delivering powerful functionality.
Flexible Integration – Compatible with ABB’s other automation modules, as well as third-party devices, making it easy to scale and expand your system.
Easy Installation – The module mounts easily on a DIN rail, ensuring quick and secure installation in industrial control panels.

Technical FAQs

How many digital inputs and outputs does the DC532 offer?
The DC532 offers 16 digital inputs and 16 digital outputs, providing high-density I/O control for industrial automation.
What operating voltage is required for the DC532?
The DC532 operates on a 24V DC power supply, which is standard for many industrial systems.
What is the temperature range for the DC532?
The DC532 operates in a temperature range of -20°C to 70°C, making it suitable for a wide variety of industrial environments.
Can the DC532 be used for remote monitoring?
Yes, the DC532 can be used for remote monitoring via Ethernet or RS485 communication, enabling real-time data collection and diagnostics.
What is the weight of the DC532 module?
The DC532 weighs 1.0 kg, making it lightweight and easy to handle during installation.
How is the DC532 mounted?
The DC532 can be mounted on a DIN rail, making it easy to install in industrial control cabinets.
What communication protocols are supported by the DC532?
The DC532 supports Ethernet and RS485 communication protocols, allowing it to integrate seamlessly with other devices in the automation network.
Can the DC532 be expanded with additional modules?
Yes, the DC532 can be expanded using I/O expansion modules like the ABB DA510, allowing you to scale your system as needed.
What devices can be controlled with the DC532?
The DC532 can control a wide range of digital devices, including sensors, actuators, motors, relays, and more.
Is the DC532 suitable for use in hazardous environments?
The DC532 is designed for industrial environments and can operate in harsh conditions, but additional protective measures may be required for use in highly hazardous environments.
