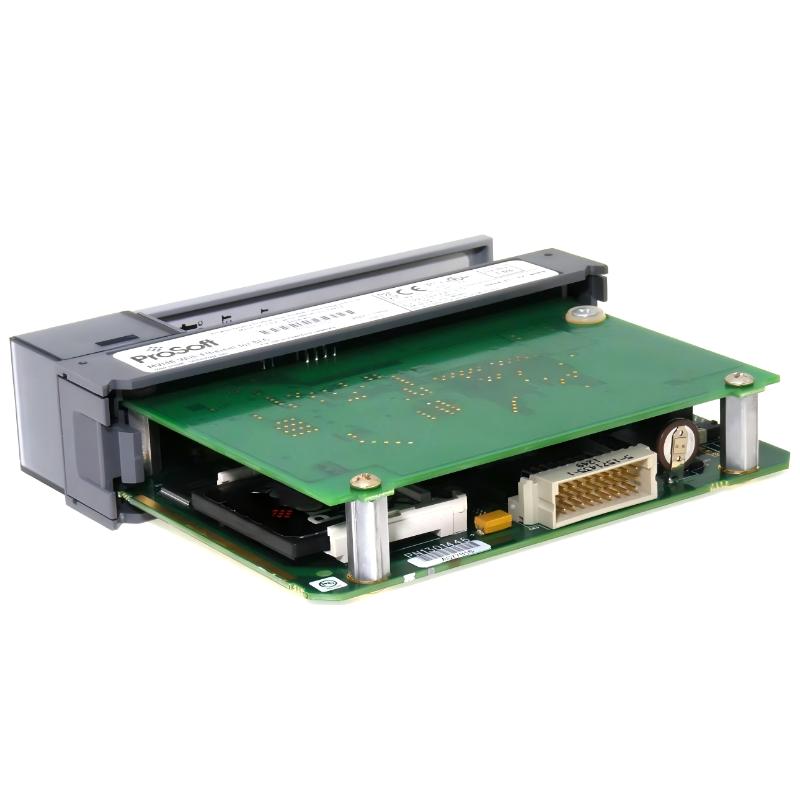

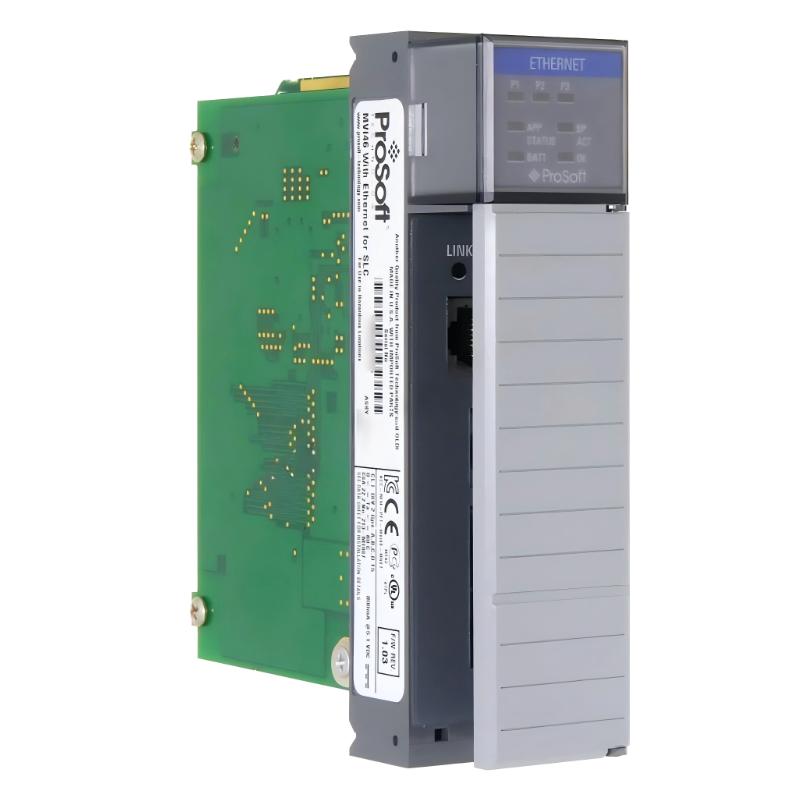

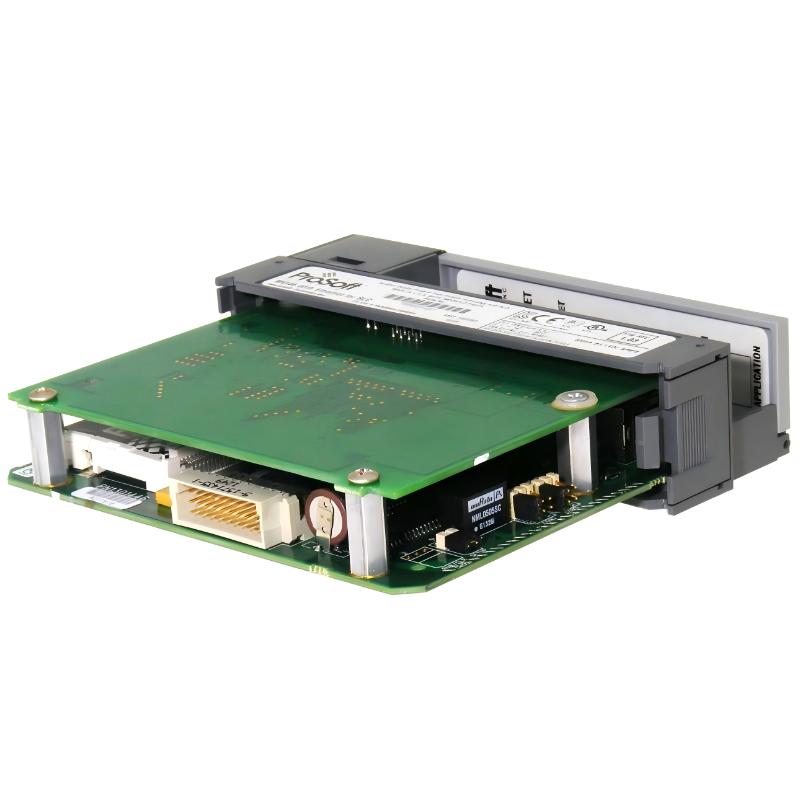

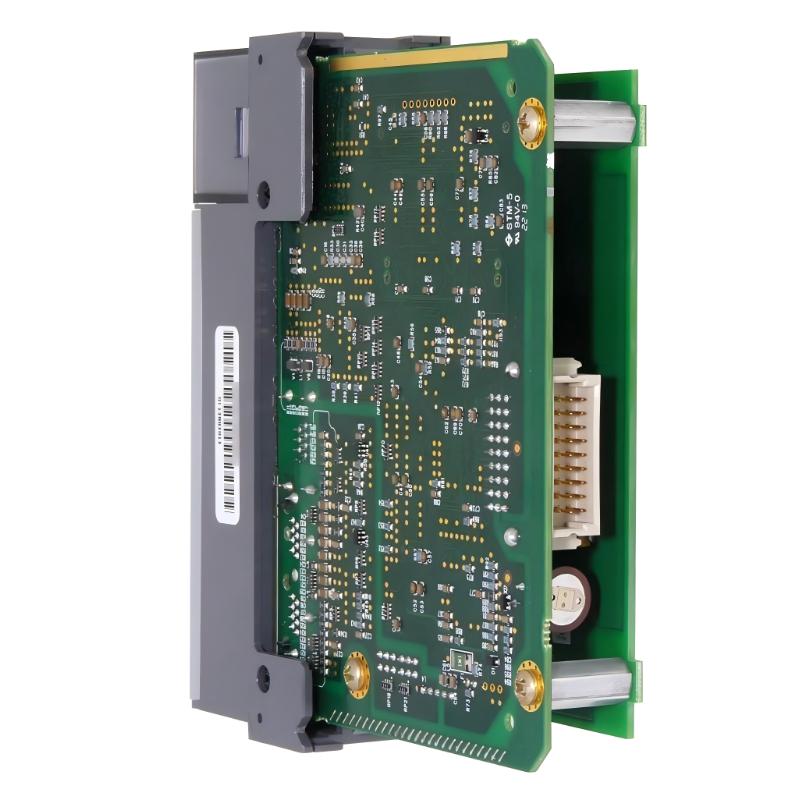

ProSoft MVI46-ADMNET Programmable Application Development Module

Typical Industrial Uses

• Custom Communication Development
Designed for projects requiring specialized industrial protocols and application-specific data handling.

• SCADA and HMI Integration
Facilitates communication between controllers, supervisory systems, and operator interfaces.

• Protocol Gateway Solutions
Acts as a bridge between devices operating on different industrial networks.

• Oil and Gas Automation
Supports monitoring and control applications in upstream, midstream, and downstream facilities.

• Water and Wastewater Treatment
Provides reliable communication for pumps, valves, and process instrumentation.

• Power Generation Systems
Enables data exchange and control functions in utility and energy management applications.

• Manufacturing and Process Industries
Ideal for production lines requiring customized communication interfaces.

• Industrial Data Collection
Supports data acquisition and information exchange across distributed systems.

Key Advantages

• Highly Flexible Development Platform
Allows engineers to create custom communication applications tailored to specific requirements.

• Seamless SLC Integration
Works efficiently with Allen-Bradley SLC 500 processors without extensive modifications.

• Enhanced Network Connectivity
Provides Ethernet communication capabilities for integration with external devices and systems.

• Reduced Engineering Complexity
Simplifies protocol conversion and minimizes additional hardware requirements.

• Reliable Industrial Performance
Designed for continuous operation in demanding environments.

• Excellent Scalability
Supports future system expansion and evolving communication needs.

• Fast Backplane Data Exchange
Ensures efficient communication between the module and the processor.

• Cost-Effective Solution
Helps maximize existing system investments while improving functionality.

Technical Questions & Answers

1. What is the primary function of the MVI46-ADMNET?

The module provides a programmable environment for developing customized communication applications and protocol interfaces.

2. Which PLC platform is compatible with this module?

It is specifically designed for Allen-Bradley SLC 500 systems.

3. Does the module support Ethernet communication?

Yes. Ethernet connectivity allows communication with supervisory systems and networked devices.

4. Can it be used as a protocol converter?

Yes. It is frequently employed to connect equipment operating on different communication networks.

5. Is programming required for operation?

Yes. Users typically develop and configure applications according to project requirements.

6. How is data exchanged with the processor?

The module communicates with the SLC processor through the backplane interface.

7. Can custom protocols be implemented?

Yes. User-developed applications can support specialized communication protocols.

8. Is the module suitable for continuous operation?

Yes. It is designed for reliable performance in demanding 24/7 industrial environments.

9. Can multiple communication functions be supported?

Yes. Depending on the application requirements, several communication tasks can be implemented simultaneously.

10. Does the module provide diagnostic capabilities?

Yes. Diagnostic and monitoring functions can be incorporated through software and Ethernet communication.
