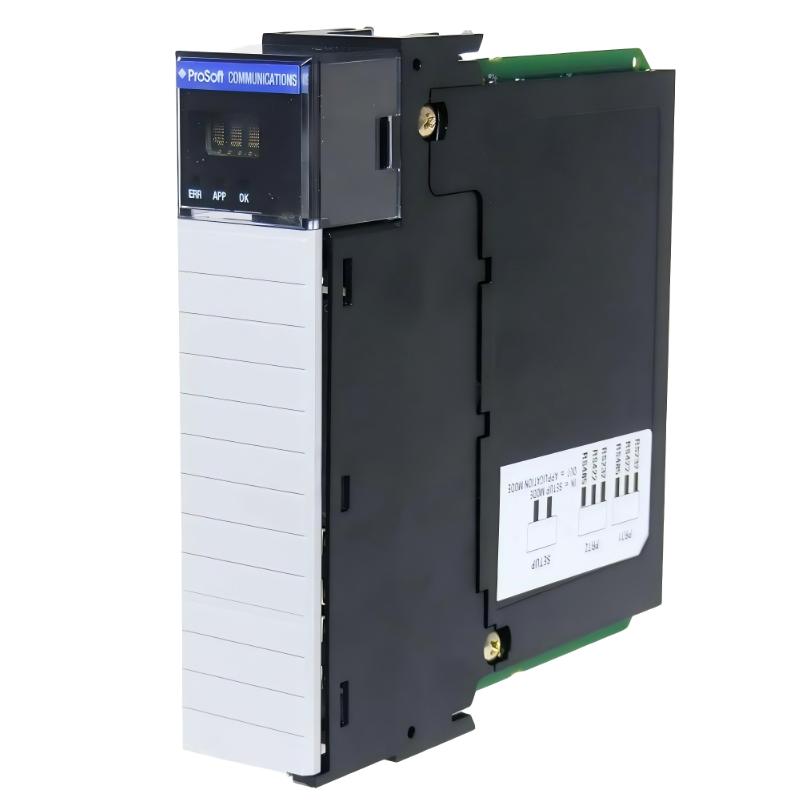

ProSoft MVI56E-MCM Modbus Master/Slave Enhanced Communication Module

Applications

• Modbus RTU/ASCII Device Integration
Provides seamless communication between ControlLogix processors and Modbus-enabled field devices, including drives, meters, and analyzers.

• Industrial Process Automation
Ideal for process control systems requiring reliable master or slave communication functionality.

• Energy and Utility Systems
Widely used in power generation, water treatment, and infrastructure applications for data exchange and monitoring.

• Oil and Gas Facilities
Supports communication with remote instrumentation and process equipment in demanding environments.

• Manufacturing and Packaging Lines
Enables efficient integration of third-party devices into existing ControlLogix architectures.

• SCADA and Data Acquisition Systems
Facilitates communication with supervisory systems for real-time monitoring and control.

Key Advantages

• Flexible Master and Slave Operation
Each serial port can be configured independently to support master or slave communication modes.

• High-Speed Data Exchange
Offers fast communication performance and efficient backplane integration with ControlLogix controllers.

• Backward Compatibility
Allows direct replacement of legacy MVI56-MCM modules without requiring program modifications.

• Simplified Configuration
Supports Add-On Instructions and Add-On Profiles to reduce engineering time.

• Enhanced Diagnostics
Provides advanced status monitoring and troubleshooting capabilities.

• Scalable Data Handling
Supports large data mapping capacities for demanding industrial applications.

• Industrial-Grade Reliability
Designed for continuous operation in harsh environments.

• Cost-Effective Integration Solution
Eliminates the need for external protocol converters while simplifying system architecture.

Technical FAQs

1. What communication protocols does the MVI56E-MCM support?

The module supports Modbus RTU and Modbus ASCII protocols with master and slave functionality.

2. Which platform is compatible with this module?

It is designed for Rockwell Automation ControlLogix systems.

3. Can both serial ports operate independently?

Yes. Each port can be configured separately as a Modbus master or slave.

4. Does the module support hot swapping?

Yes. It supports Remove and Insert Under Power (RIUP) capability.

5. Is programming software required?

Configuration can be performed using Add-On Instructions and ProSoft configuration tools.

6. Can it replace the MVI56-MCM directly?

Yes. The MVI56E-MCM is backward compatible with earlier MVI56-MCM modules.

7. How much data can the module manage?

It supports user-definable memory mapping with up to 10,000 16-bit registers.

8. Does the module provide diagnostic information?

Yes. Status LEDs and scrolling alphanumeric displays provide detailed diagnostics.

9. Is remote configuration supported?

Yes. CIPconnect® technology enables remote access through EtherNet/IP networks.

10. Can the module communicate with multiple Modbus devices?

Yes. It supports communication with multiple Modbus RTU and ASCII devices simultaneously.
