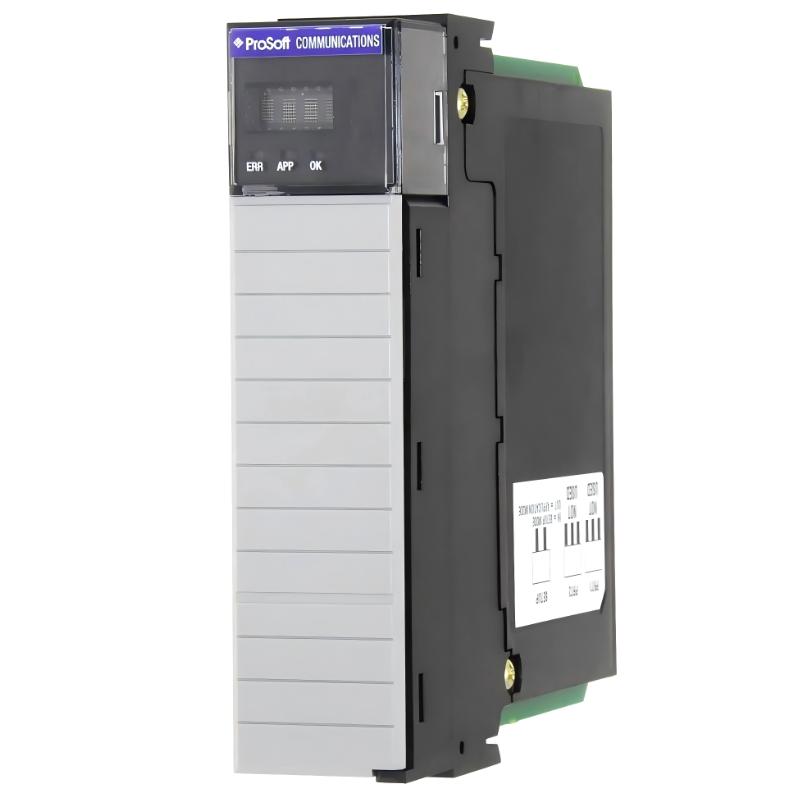

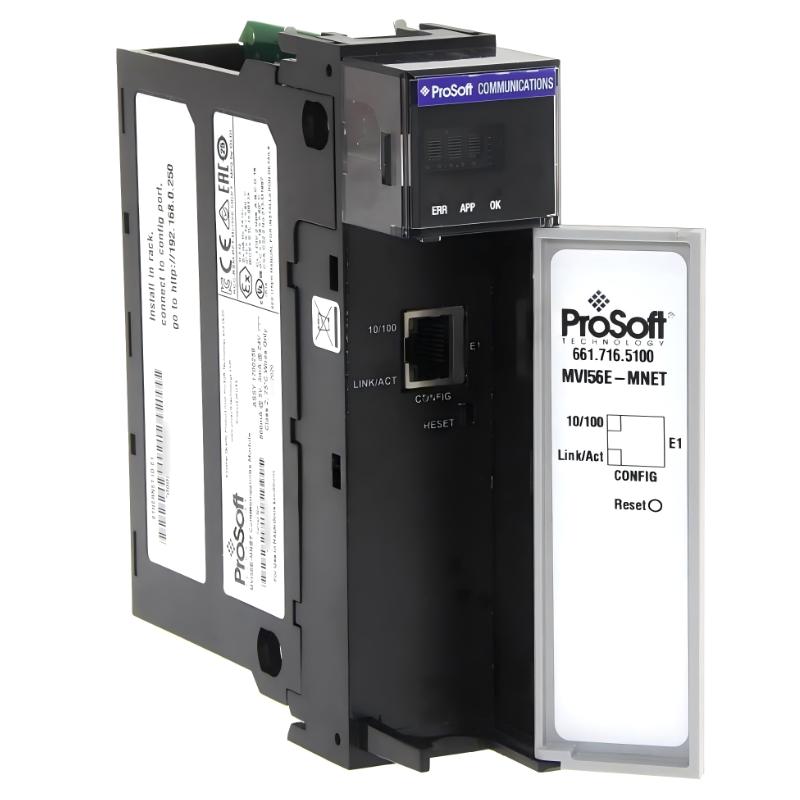

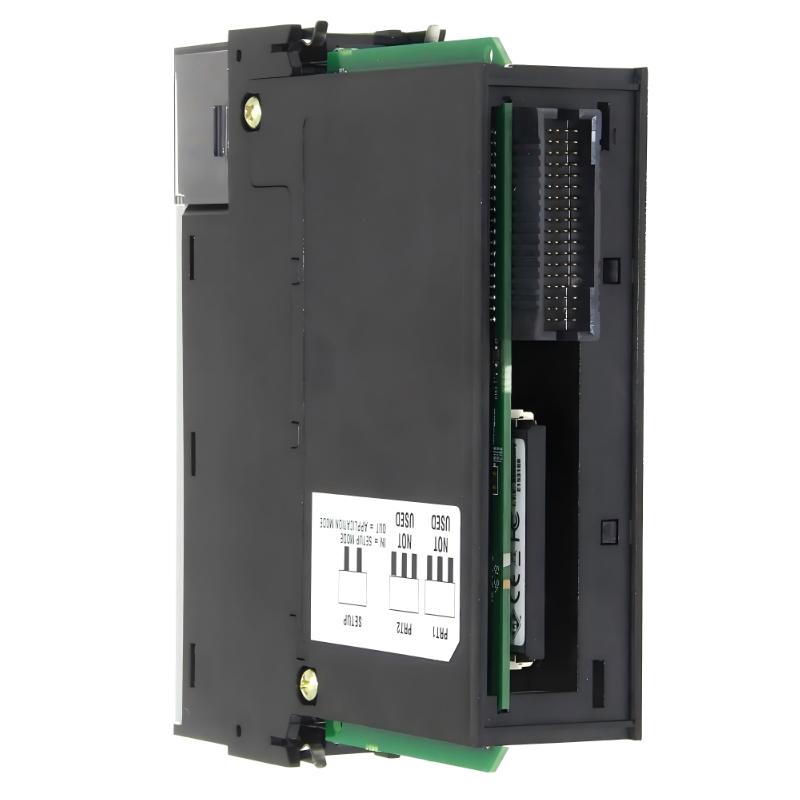

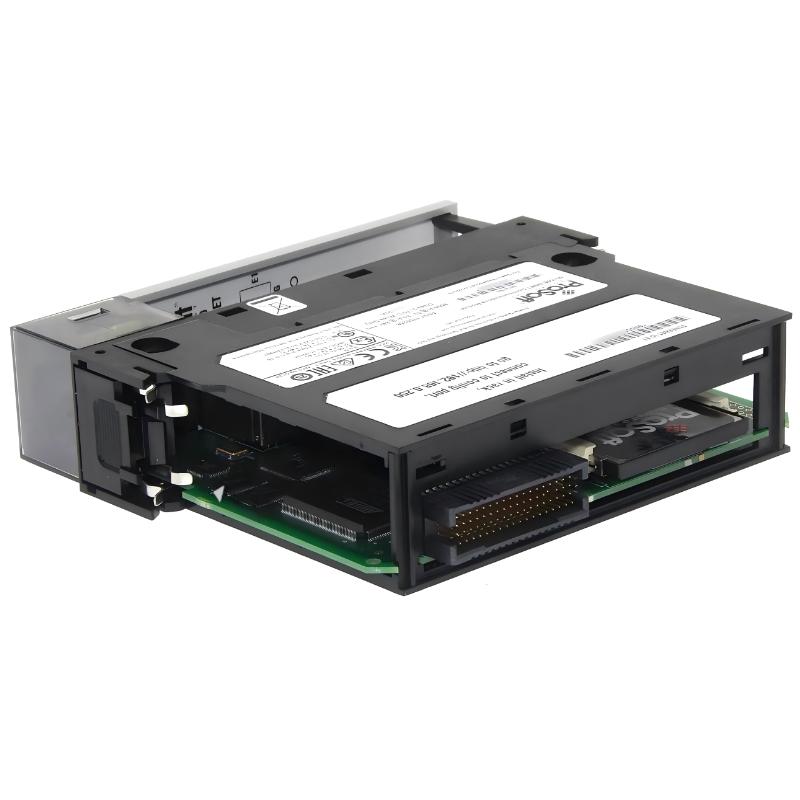

ProSoft MVI56E-MNET Modbus TCP/IP Client/server Communication Module

Applications

• Modbus TCP/IP Device Integration
Enables seamless communication between ControlLogix systems and Modbus TCP/IP devices such as PLCs, HMIs, drives, and industrial instruments.

• SCADA and Supervisory Systems
Supports real-time data exchange between PLC networks and SCADA platforms for monitoring and control.

• Energy and Power Distribution Systems
Used for communication with intelligent electronic devices, meters, and protection relays.

• Water and Wastewater Treatment Plants
Facilitates reliable monitoring and control of pumps, valves, and process instrumentation.

• Oil and Gas Automation
Supports distributed control and monitoring in upstream and downstream operations.

• Industrial Manufacturing Lines
Integrates third-party Modbus TCP/IP equipment into ControlLogix architectures.

• Remote Data Acquisition Systems
Provides stable communication for distributed industrial monitoring networks.

• Process Control Applications
Ideal for continuous production environments requiring robust Ethernet-based communication.

Key Advantages

• Native Modbus TCP/IP Client/Server Support
Allows flexible communication with both Modbus masters and slave devices over Ethernet.

• High-Speed Ethernet Communication
Ensures fast and stable data exchange between ControlLogix and external systems.

• Flexible System Integration
Simplifies connection of third-party devices without additional gateways.

• Easy Configuration and Maintenance
Supports standardized tools and structured setup for faster commissioning.

• Advanced Diagnostics Capability
Provides clear status information for troubleshooting and system monitoring.

• Scalable Architecture
Supports small to large industrial communication networks.

• Reliable Industrial Performance
Designed for continuous operation in harsh industrial environments.

• Reduced Engineering Effort
Minimizes programming complexity while maximizing communication flexibility.

Technical FAQs

1. What is the main function of the MVI56E-MNET?

It enables Modbus TCP/IP communication between ControlLogix processors and external Modbus devices using a client/server architecture.

2. Which PLC system is compatible with this module?

It is designed for Rockwell Automation ControlLogix platforms.

3. Does the module support both client and server roles?

Yes. It can operate as both Modbus TCP/IP client and server simultaneously.

4. Can it communicate with multiple Modbus devices?

Yes. It supports multiple simultaneous connections depending on configuration.

5. Does it require special programming in the PLC?

It requires configuration and integration within the ControlLogix environment but does not require complex custom protocol programming.

6. Is Ethernet the only communication interface?

Yes. It uses Ethernet for Modbus TCP/IP communication and system configuration.

7. Can it replace serial Modbus modules?

Yes. It is commonly used as an upgrade from serial-based Modbus solutions.

8. Does it support remote diagnostics?

Yes. Remote monitoring and diagnostics can be performed through Ethernet access.

9. Is the module suitable for harsh environments?

Yes. It is designed for industrial environments with continuous operation requirements.

10. Can it integrate with SCADA systems easily?

Yes. It is widely used for SCADA integration due to its standard Modbus TCP/IP protocol support.
