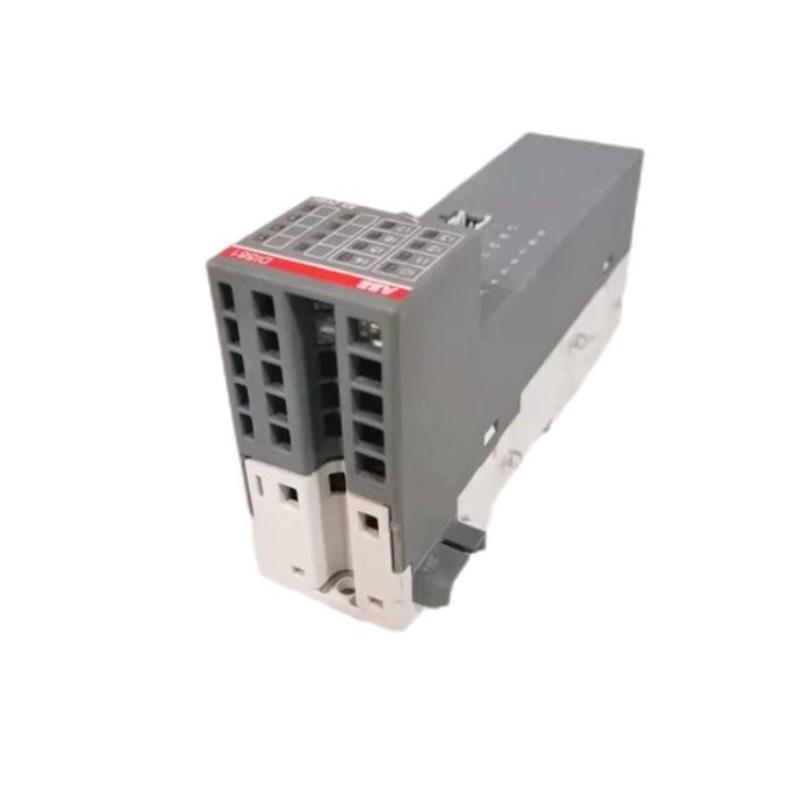

DI561 1TNE968902R2101 (4) DI561 1TNE968902R2101 (1) DI561 1TNE968902R2101 (2) DI561 1TNE968902R2101 (3)

The ABB DI561 Digital Input Module is designed to provide high-performance, reliable digital input control in industrial automation systems. Offering high-density input capabilities, this module is ideal for applications that require the monitoring of a large number of digital signals. Whether you're integrating sensors, switches, or other field devices, the DI561 ensures real-time data acquisition, helping to enhance operational efficiency, system reliability, and automation precision.

Built with flexibility in mind, the DI561 integrates seamlessly with ABB’s broader automation ecosystem and supports common communication protocols like Ethernet and RS485. This makes it an excellent choice for industries such as manufacturing, energy, water treatment, and infrastructure, where managing numerous digital inputs efficiently is essential.

Technical Specifications

Feature	Specification
Model	ABB DI561 Digital Input Module
I/O Type	Digital Inputs
Communication Interface	Ethernet, RS485
Operating Voltage	24V DC
Dimensions (WxHxD)	200mm x 150mm x 60mm
Weight	1.2 kg
Temperature Range	-20°C to 70°C
Mounting Type	DIN Rail
Input Channels	32 Digital Inputs

The DI561 module features 32 digital input channels, providing a high-density solution for systems that require numerous input signals. It operates on a 24V DC power supply, which is typical for most industrial automation systems.

Recommended Related Models

ABB DA500 Communication Module – This module enhances communication, ensuring smooth data transfer and integration between the DI561 and other automation devices.
ABB DA502 Power Supply Module – Delivers reliable power to the DI561 and other components, ensuring continuous system operation.
ABB DA510 I/O Expansion Module – Expands the I/O capacity of the DI561, providing additional input/output channels for larger systems.

Popular Allen Bradley Models

Allen Bradley 1756-IB32 Digital Input Module – Offers a similar solution with 32 digital inputs, ideal for large control systems requiring numerous input signals.
Allen Bradley 1746-IB16 Digital Input Module – Provides 16 digital inputs, suitable for systems with a smaller number of digital signal inputs.
Allen Bradley 1746-IB8 High-Speed Digital Input Module – Designed for high-speed applications with 8 digital input channels.

Applications

The ABB DI561 Digital Input Module is highly versatile and can be used in various industrial applications, including:

Manufacturing Automation – Monitors digital signals from field devices like sensors, switches, and encoders, optimizing production processes.
Energy Management Systems – Provides status signals for electrical distribution, protective relays, and metering devices.
Oil & Gas – Collects data from pressure switches, flow meters, and other field devices to ensure safe and efficient operation of oil rigs and refineries.
Water Treatment – Tracks signals from water quality sensors, flow meters, and level switches, ensuring accurate control of water processing systems.
Building Automation – Monitors occupancy sensors, alarms, and safety switches to control lighting, HVAC, and security systems in commercial buildings.

The DI561 is perfect for applications where managing a large number of digital inputs is critical to ensuring smooth system operation and control.

Advantages

High-Density Input Capacity – The DI561 module offers 32 digital inputs, making it ideal for complex automation systems that require numerous input channels.
Flexible Integration – Seamlessly integrates with other ABB automation products and third-party devices via Ethernet and RS485 communication protocols.
Wide Operating Temperature Range – The DI561 operates in temperatures ranging from -20°C to 70°C, allowing it to function in diverse environments, from factory floors to outdoor installations.
Space-Efficient Design – With a compact form factor (200mm x 150mm x 60mm), the DI561 provides high-density functionality without taking up excessive space in control panels.
Reliable Performance – Designed for industrial environments, the DI561 ensures continuous, uninterrupted operation even in challenging conditions.

Technical FAQs

How many digital inputs does the DI561 module support?
The DI561 module supports 32 digital inputs, making it ideal for applications requiring multiple input channels from sensors, switches, or relays.
What is the operating voltage for the DI561?
The DI561 operates with a 24V DC power supply, which is standard for most industrial automation systems.
What is the temperature range of the DI561 module?
The DI561 operates within a temperature range of -20°C to 70°C, making it suitable for both indoor and outdoor installations in a variety of industrial environments.
How does the DI561 integrate with other systems?
The DI561 integrates seamlessly with ABB automation products using Ethernet and RS485 communication interfaces, allowing for easy system expansion and real-time data exchange.
What is the weight of the DI561 module?
The DI561 weighs 1.2 kg, making it sturdy yet lightweight for easy handling and installation.
How is the DI561 mounted?
The DI561 module can be easily mounted on a DIN rail, providing quick and secure installation in control panels.
Can the DI561 be used for remote monitoring?
Yes, the DI561 supports Ethernet and RS485 communication protocols, enabling remote monitoring and control of connected devices from centralized systems.
What devices can the DI561 monitor?
The DI561 can monitor a wide range of digital field devices, such as sensors, switches, alarms, and other digital status signals.
Can the DI561 be expanded with additional modules?
Yes, the DI561’s capacity can be expanded with ABB’s DA510 I/O Expansion Module, allowing for more input/output channels if needed.
Is the DI561 suitable for use in hazardous environments?
The DI561 is designed for general industrial environments. For hazardous locations, additional protective measures may be required, depending on the specific application.
