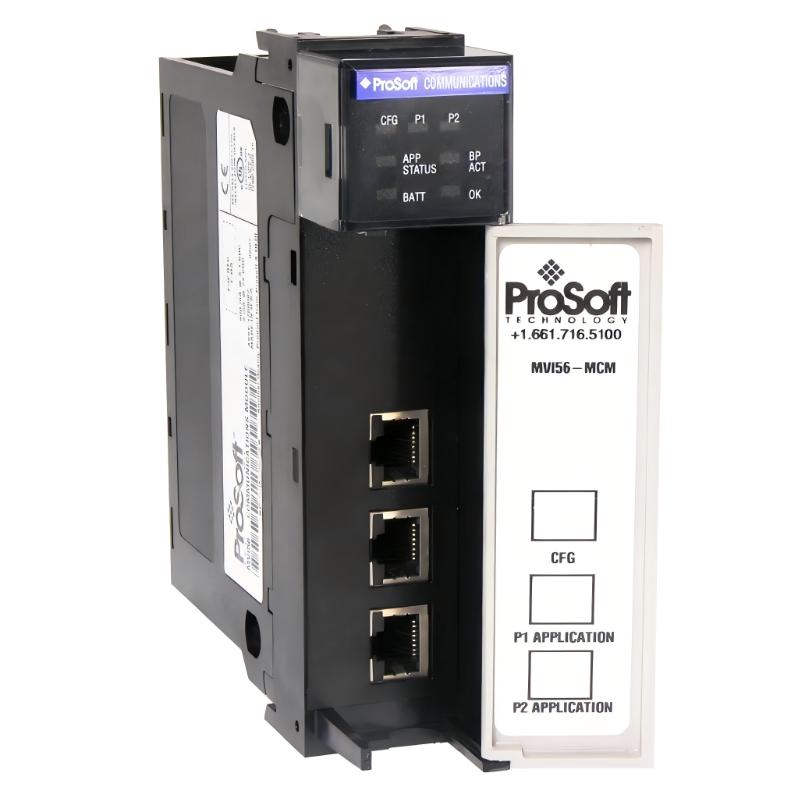

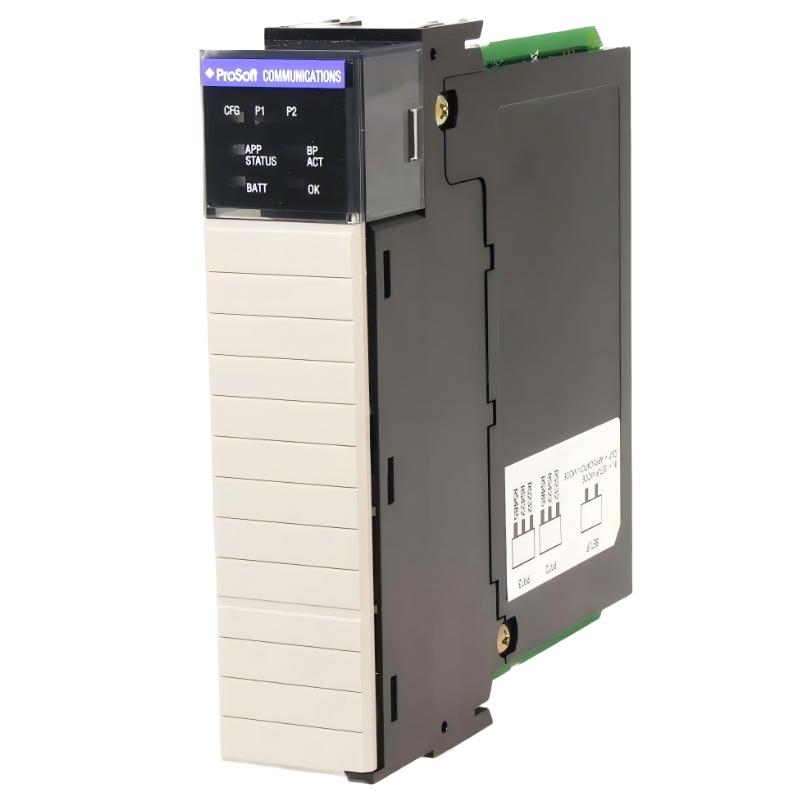

ProSoft MVI56-MCM Modbus Master/slave Communication Module

Applications

• Modbus RTU/ASCII Device Integration
Enables ControlLogix systems to communicate with a wide range of Modbus-compatible devices such as PLCs, drives, meters, and sensors.

• Industrial Process Control Systems
Widely used in continuous process industries requiring stable and reliable serial communication.

• SCADA and Monitoring Systems
Supports real-time data exchange between PLCs and supervisory control platforms.

• Water and Wastewater Treatment
Provides dependable communication for pumps, valves, flow meters, and instrumentation.

• Oil and Gas Applications
Suitable for upstream and downstream operations requiring robust field device integration.

• Power and Energy Systems
Connects intelligent electronic devices, relays, and energy meters into control networks.

• Manufacturing Automation Lines
Integrates third-party Modbus equipment into ControlLogix architectures without additional gateways.

• Remote Data Acquisition
Supports distributed systems where long-distance serial communication is required.

Key Advantages

• Dual-Mode Master/Slave Operation
Each port can be configured independently to operate as a Modbus Master or Slave.

• Flexible Serial Communication Options
Supports RS-232, RS-422, and RS-485 for various industrial wiring requirements.

• High Compatibility with Modbus Devices
Works with a broad range of industrial equipment using standard Modbus RTU and ASCII protocols.

• Efficient ControlLogix Integration
Designed as a single-slot module with fast backplane data transfer.

• Simplified System Expansion
Adds Modbus connectivity without changing existing PLC architecture or rewriting logic.

• Robust Industrial Reliability
Built for continuous operation in harsh industrial environments.

• Comprehensive Diagnostics
Provides status indicators and diagnostic data for fast troubleshooting.

• Cost-Effective Communication Solution
Reduces the need for external protocol converters and additional hardware.

Technical FAQs

1. What is the main function of the MVI56-MCM?

It enables Modbus RTU and Modbus ASCII communication between ControlLogix processors and external industrial devices.

2. Which PLC platform is supported?

It is designed for Rockwell Automation ControlLogix systems.

3. Can both ports operate independently?

Yes. Each serial port can be configured separately as a Modbus Master or Slave.

4. What communication standards are supported?

It supports RS-232, RS-422, and RS-485 serial communication.

5. Is the module suitable for multiple Modbus devices?

Yes. It can communicate with multiple Modbus slaves or masters depending on configuration.

6. Does it support both RTU and ASCII modes?

Yes. Both Modbus RTU and Modbus ASCII protocols are supported.

7. Can it replace older MCM modules?

Yes. It is backward compatible with earlier MVI56-MCM versions.

8. Does it support hot swapping?

Yes. It supports Remove and Insert Under Power capability.

9. How is data exchanged with the PLC?

Data is transferred through the ControlLogix backplane as I/O data.

10. Is it suitable for harsh industrial environments?

Yes. It is designed for reliable operation in demanding industrial conditions.
