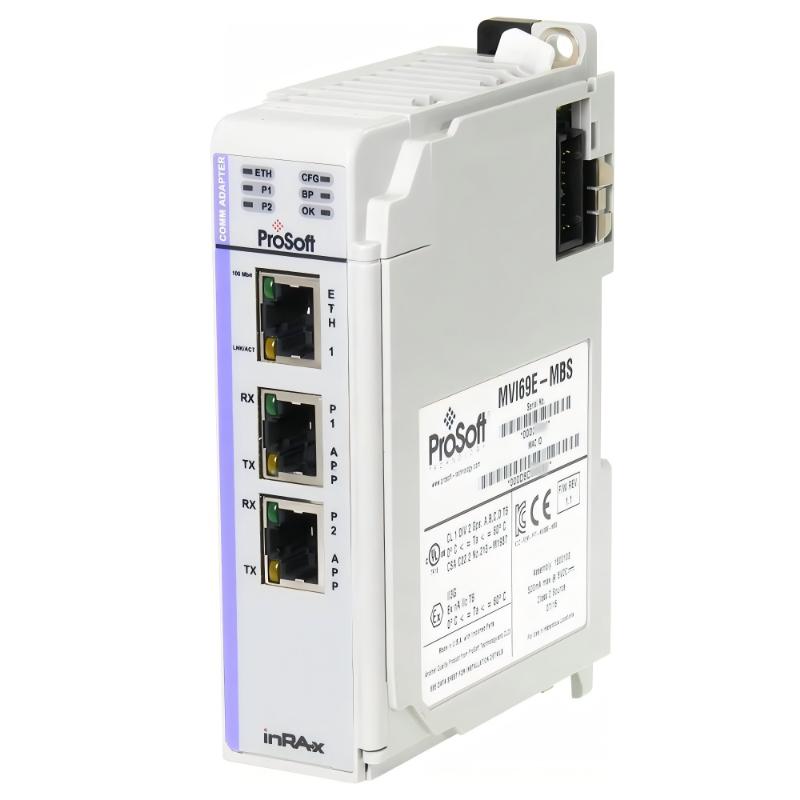

ProSoft MVI69E-MBS Modbus Serial Enhanced Communication Module

Applications

• Modbus RTU/ASCII Industrial Integration
Enables seamless communication between CompactLogix systems and Modbus serial devices such as PLCs, drives, meters, and instrumentation.

• SCADA and Control Systems
Provides reliable data exchange between field devices and supervisory control systems for monitoring and automation.

• Water and Wastewater Treatment
Used for pump control, flow monitoring, and distributed instrumentation networks.

• Oil and Gas Operations
Supports robust communication with remote field devices in harsh environments.

• Power and Energy Systems
Integrates intelligent electronic devices, relays, and energy meters into centralized control systems.

• Manufacturing Automation
Connects third-party Modbus equipment into CompactLogix-based production lines.

• Process Industries
Suitable for continuous process environments requiring stable serial communication.

• Remote Data Acquisition
Collects distributed field data over RS-232/RS-485/RS-422 networks.

Key Advantages

• Dual Serial Port Architecture
Supports two independent serial ports for flexible Modbus Master or Slave configuration.

• High Protocol Flexibility
Supports Modbus RTU and Modbus ASCII communication modes.

• Wide Device Compatibility
Works with a broad range of industrial Modbus devices including legacy equipment.

• Efficient ControlLogix Integration
Designed for CompactLogix systems with seamless backplane communication.

• Large Data Handling Capacity
Supports extensive data mapping for complex industrial applications.

• Advanced Diagnostics
Provides detailed status and fault information for fast troubleshooting.

• Flexible Communication Standards
Supports RS-232, RS-422, and RS-485 interfaces.

• Industrial Reliability Design
Built for continuous operation in harsh industrial environments.

Technical FAQs

1. What is the main function of the MVI69E-MBS?

It enables Modbus serial communication between CompactLogix controllers and external Modbus devices using RTU and ASCII protocols.

2. Which PLC platform is compatible with this module?

It is designed for Rockwell Automation CompactLogix systems.

3. How many serial ports does it have?

It has two independent serial communication ports.

4. Can each port be configured separately?

Yes. Each port can operate as a Modbus Master or Modbus Slave independently.

5. Which communication interfaces are supported?

It supports RS-232, RS-422, and RS-485.

6. Does it support both Modbus RTU and ASCII?

Yes. Both communication modes are fully supported.

7. Is it suitable for SCADA systems?

Yes. It is widely used in SCADA and industrial monitoring applications.

8. Can it connect to multiple Modbus devices?

Yes. It can communicate with multiple devices depending on configuration.

9. Does it support diagnostic functions?

Yes. It provides detailed module and communication diagnostics.

10. Is it suitable for harsh environments?

Yes. It is designed for reliable industrial-grade operation.
