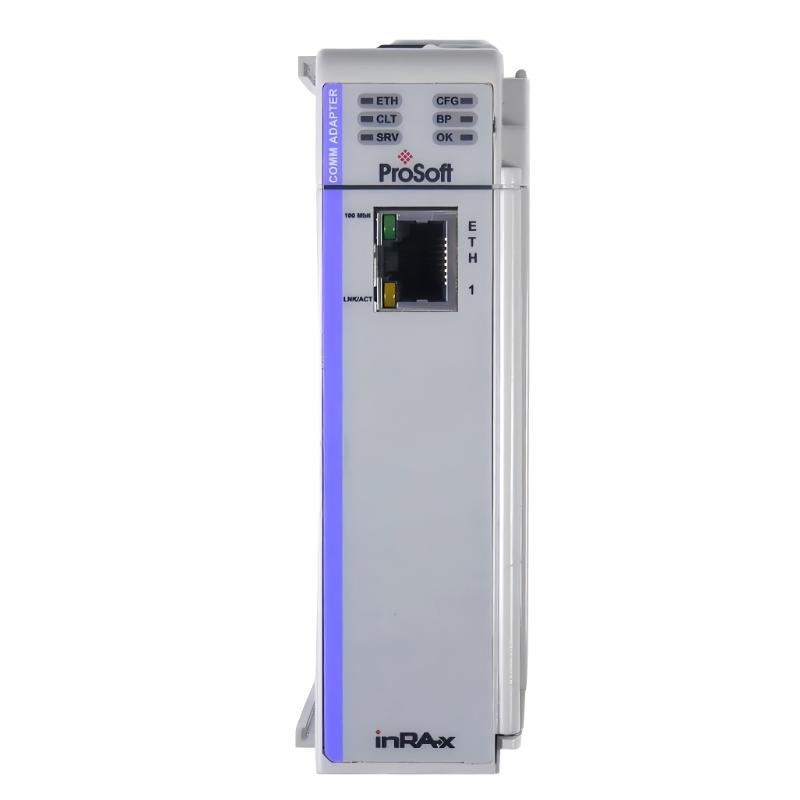

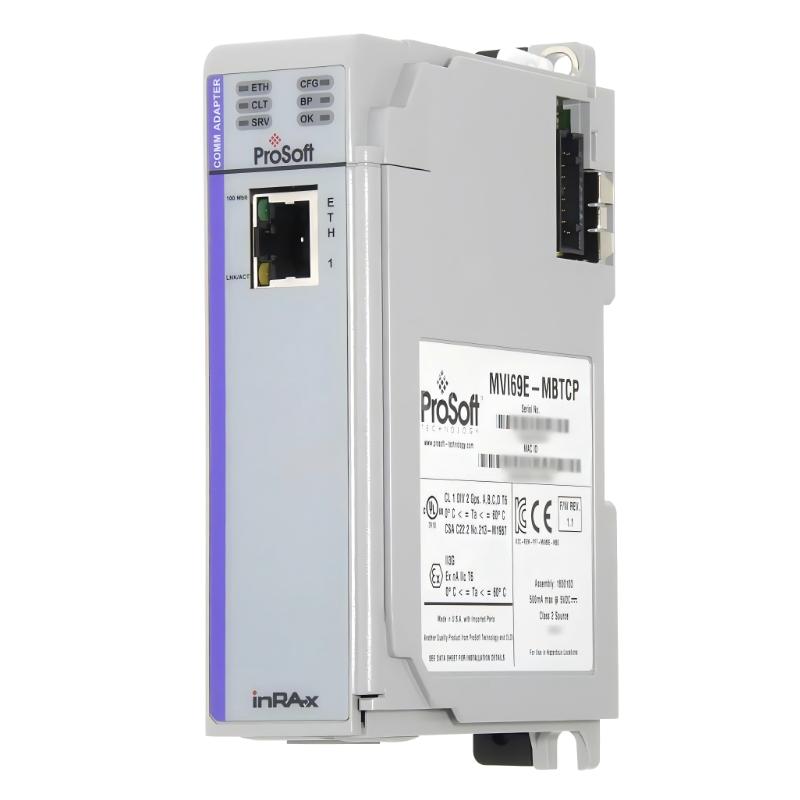

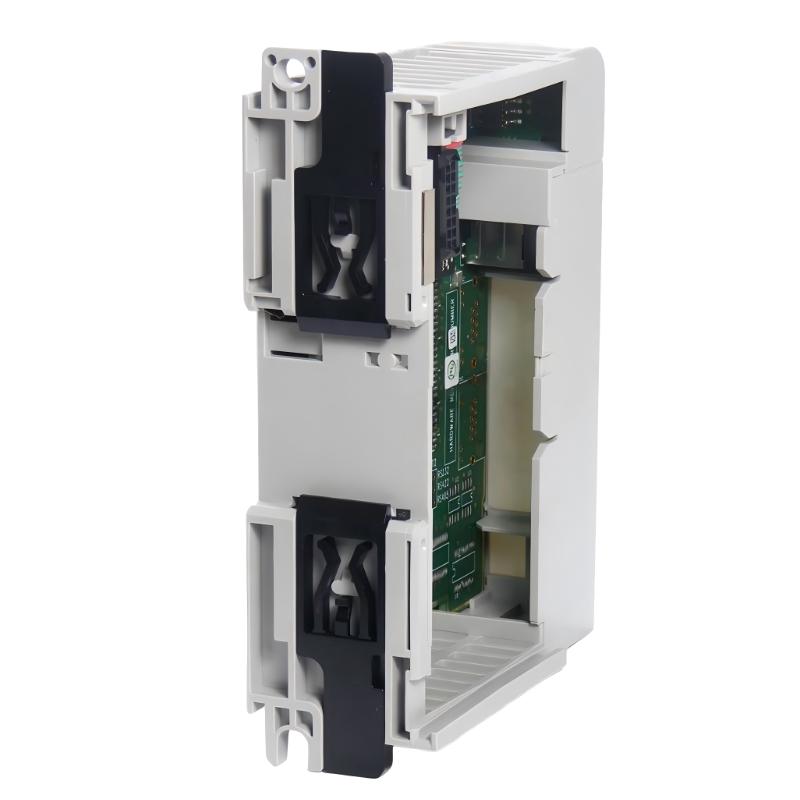

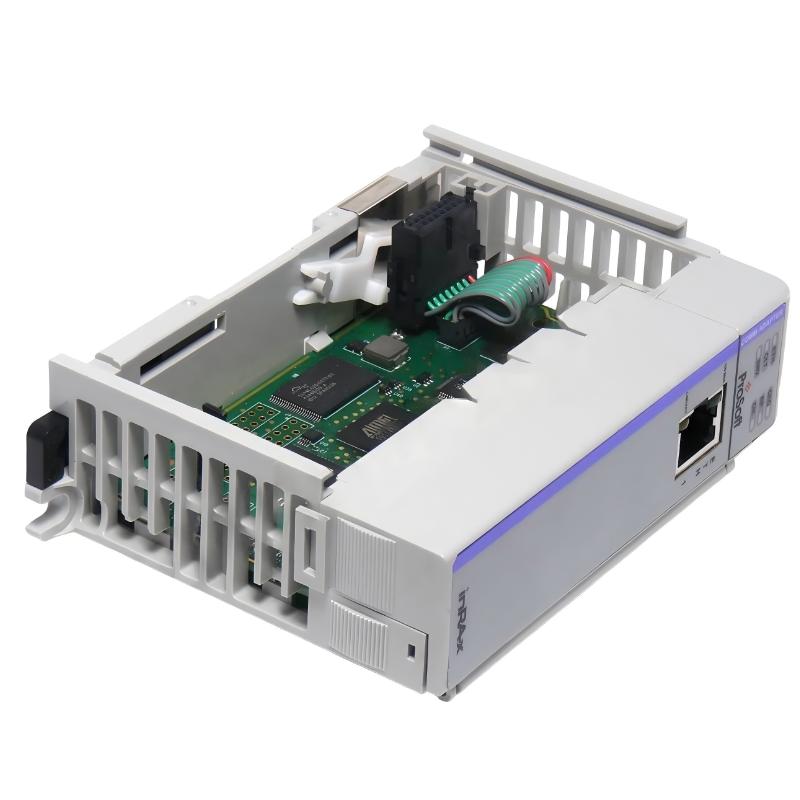

ProSoft MVI69E-MBTCP Modbus TCP/IP Enhanced Communication Module

Applications

• Modbus TCP/IP Network Integration
Enables CompactLogix systems to communicate with Modbus TCP devices such as PLCs, drives, energy meters, and industrial controllers.

• SCADA and Monitoring Systems
Provides real-time data exchange between field devices and supervisory platforms for centralized control.

• Energy and Power Distribution
Used for connecting intelligent electronic devices, protection relays, and smart meters.

• Water and Wastewater Systems
Supports reliable monitoring and control of pumps, valves, and treatment equipment.

• Oil and Gas Automation
Suitable for distributed control systems in upstream and downstream operations.

• Manufacturing and Industrial Automation
Integrates third-party Modbus TCP/IP devices into CompactLogix architectures.

• Remote Data Acquisition Systems
Supports Ethernet-based communication for distributed industrial monitoring.

• Process Control Applications
Designed for continuous production environments requiring stable and fast communication.

Key Advantages

• Native Modbus TCP/IP Client/Server Support
Supports both client and server roles for flexible network architecture design.

• High-Speed Ethernet Communication
Ensures fast and stable data exchange between PLC and external devices.

• Simple System Integration
Reduces engineering effort by eliminating the need for external protocol gateways.

• Flexible Network Architecture
Allows multiple Modbus connections depending on system design.

• Advanced Diagnostics and Monitoring
Provides status and fault information for fast troubleshooting.

• Scalable Industrial Solution
Suitable for small to large distributed automation systems.

• Reliable Continuous Operation
Designed for 24/7 industrial environments.

• Efficient Engineering and Maintenance
Simplifies configuration and reduces commissioning time.

Technical FAQs

1. What is the main function of the MVI69E-MBTCP?

It enables Modbus TCP/IP communication between CompactLogix PLCs and external Modbus devices.

2. Which PLC platform is supported?

It is designed for Rockwell Automation CompactLogix systems.

3. Does it support both client and server modes?

Yes. It can operate as both Modbus TCP/IP client and server.

4. How many devices can it communicate with?

It supports multiple Modbus TCP connections depending on configuration and system design.

5. Does it require complex programming?

No. It uses structured configuration tools and standard integration methods.

6. Is Ethernet the only communication interface?

Yes. All Modbus communication and configuration are handled via Ethernet.

7. Can it replace serial Modbus modules?

Yes. It is commonly used as an upgrade from serial-based Modbus solutions.

8. Does it support remote diagnostics?

Yes. Diagnostics and monitoring can be accessed over the network.

9. Is it suitable for harsh environments?

Yes. It is designed for industrial-grade continuous operation.

10. Can it integrate with SCADA systems?

Yes. It is widely used in SCADA applications due to standard Modbus TCP/IP support.
