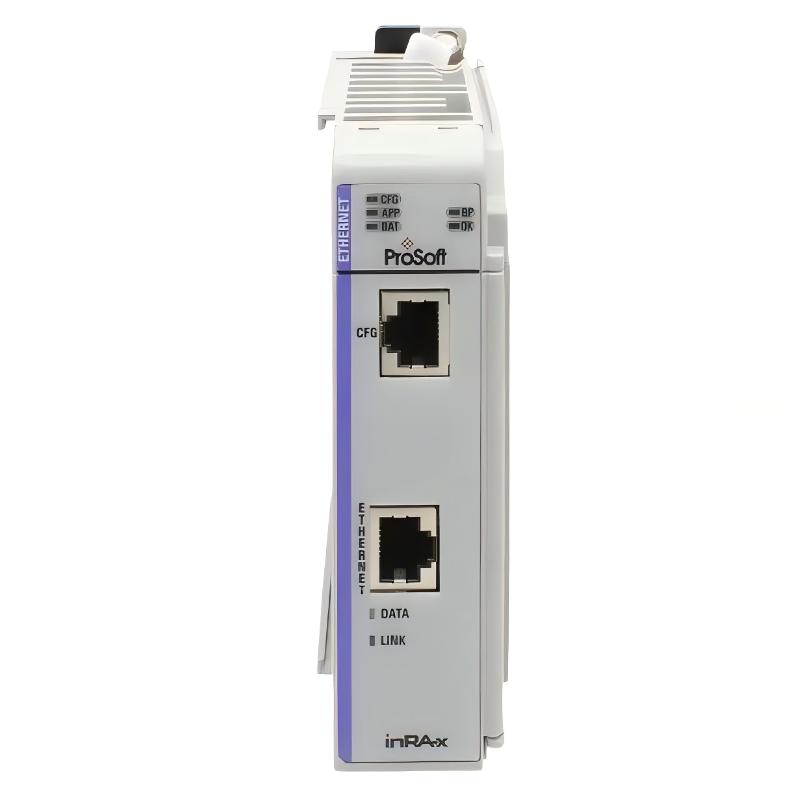

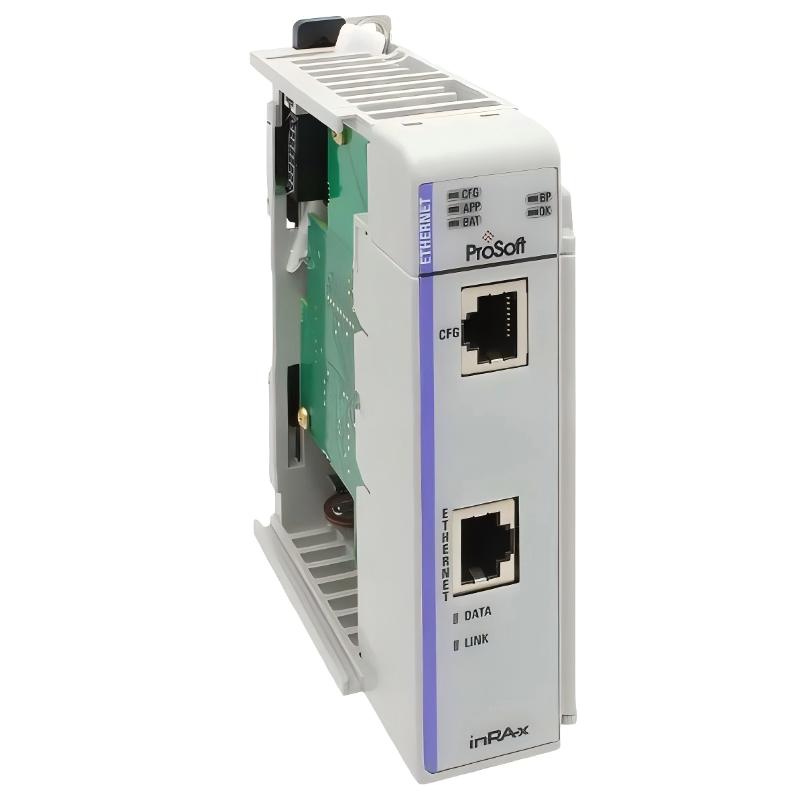

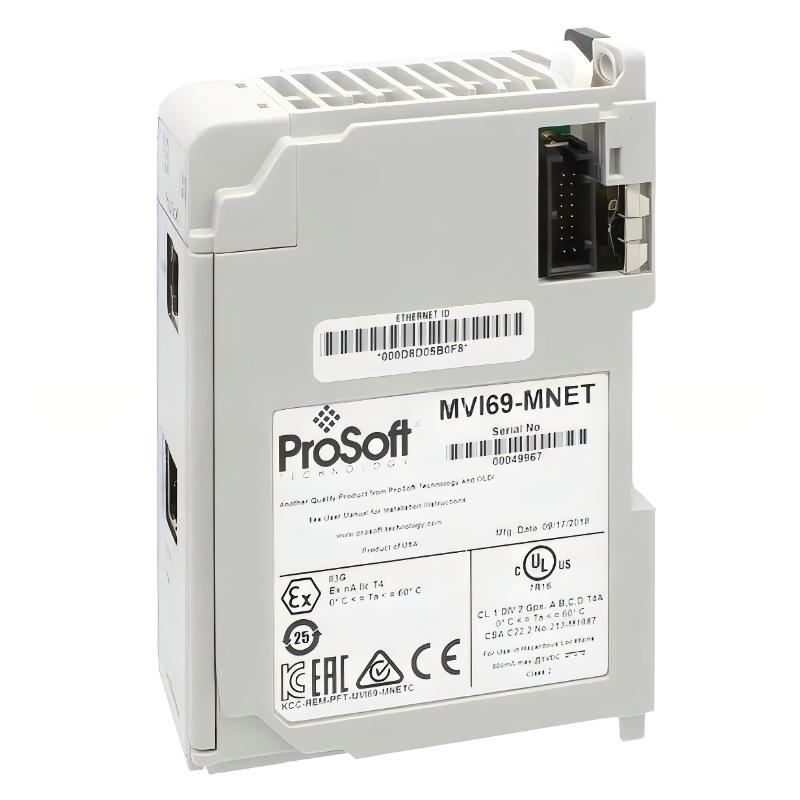

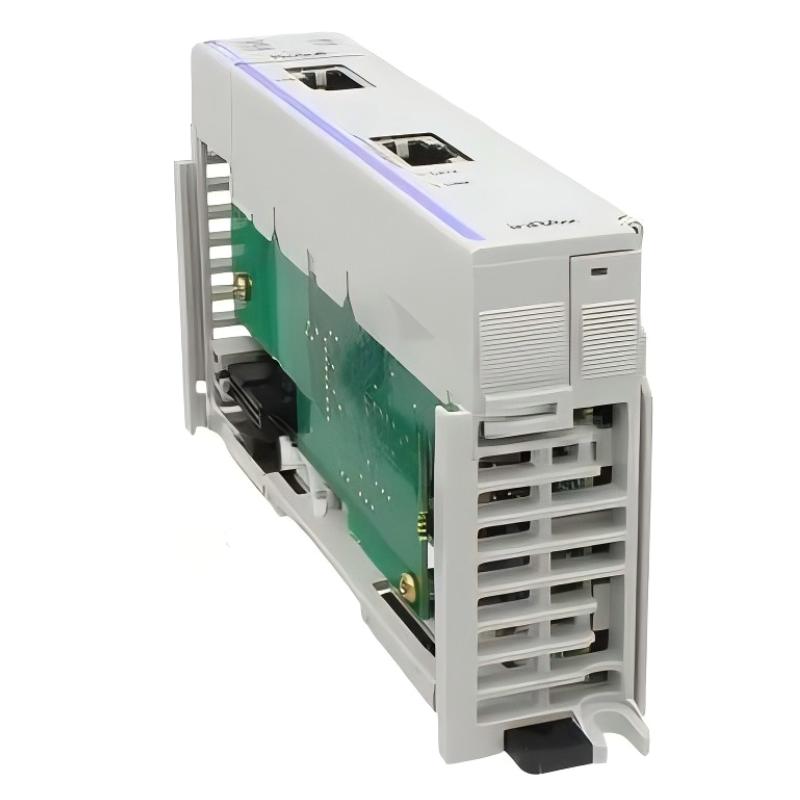

ProSoft MVI69-MNET Modbus TCP/IP Communication Module

Applications

• Modbus TCP/IP Device Integration
Enables CompactLogix systems to communicate with a wide range of Modbus TCP devices including PLCs, HMIs, drives, and industrial instruments.

• SCADA and Supervisory Control Systems
Supports real-time data exchange between field devices and SCADA platforms for centralized monitoring and control.

• Energy and Power Management Systems
Used for connecting intelligent meters, protection relays, and power monitoring devices.

• Water and Wastewater Automation
Provides stable communication for pumps, valves, flow meters, and treatment equipment.

• Oil and Gas Distributed Control
Supports remote monitoring and process control in upstream and downstream operations.

• Manufacturing and Factory Automation
Integrates third-party Modbus TCP/IP devices into CompactLogix-based production systems.

• Remote Data Acquisition Systems
Enables Ethernet-based collection of distributed industrial process data.

• Process Control Applications
Suitable for continuous industrial environments requiring stable and fast communication.

Key Advantages

• Native Modbus TCP/IP Architecture
Supports seamless communication over Ethernet without additional protocol converters.

• Client and Server Functionality
Allows flexible configuration for both Modbus master and slave roles.

• High-Speed Data Exchange
Provides fast and reliable communication between PLC and field devices.

• Simple System Integration
Reduces engineering effort and simplifies network architecture design.

• Scalable Industrial Networking
Supports multiple Modbus connections depending on system requirements.

• Advanced Diagnostic Capabilities
Provides detailed status and fault information for easier troubleshooting.

• Reliable 24/7 Operation
Designed for continuous industrial use in demanding environments.

• Efficient ControlLogix Integration
Works as a single-slot module within Rockwell Automation architectures.

Technical FAQs

1. What is the main function of the MVI69-MNET?

It enables Modbus TCP/IP communication between CompactLogix controllers and external Modbus devices over Ethernet.

2. Which PLC platform is compatible with this module?

It is designed for Rockwell Automation CompactLogix systems.

3. Does it support both client and server modes?

Yes. It can operate as both Modbus TCP/IP client and server.

4. How many devices can it communicate with?

It supports multiple Modbus TCP connections depending on configuration and network design.

5. Does it require complex programming?

No. It uses structured configuration tools and standard integration methods rather than custom protocol programming.

6. Is Ethernet the only communication interface?

Yes. All Modbus communication is handled through Ethernet.

7. Can it replace serial Modbus modules?

Yes. It is commonly used as an upgrade from serial-based Modbus solutions.

8. Does it support remote diagnostics?

Yes. Diagnostics and monitoring can be accessed through the network.

9. Is it suitable for industrial environments?

Yes. It is designed for continuous industrial operation.

10. Can it integrate with SCADA systems?

Yes. It is widely used in SCADA systems due to standard Modbus TCP/IP support.
