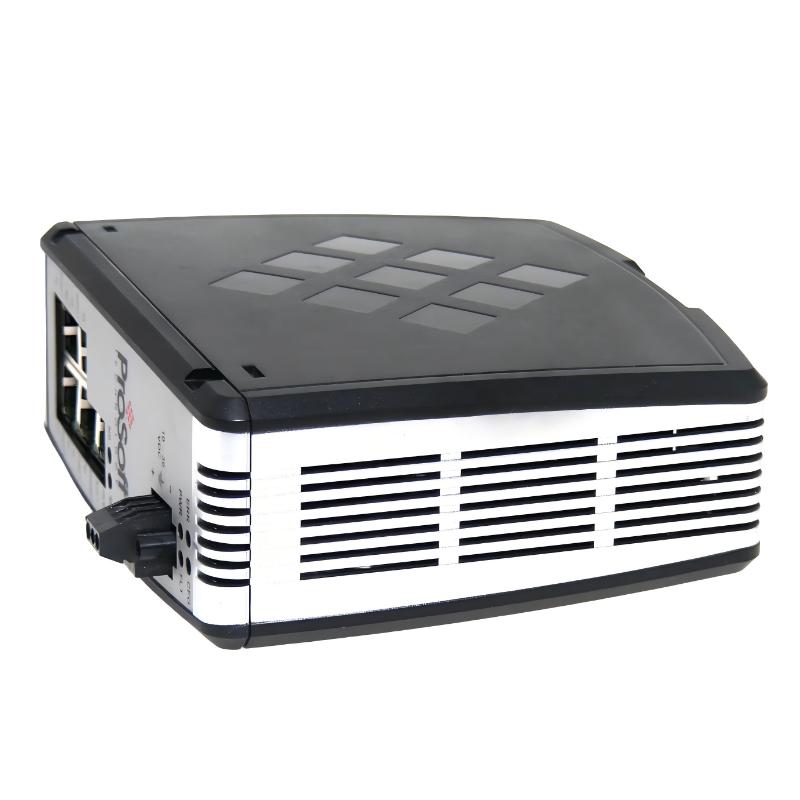

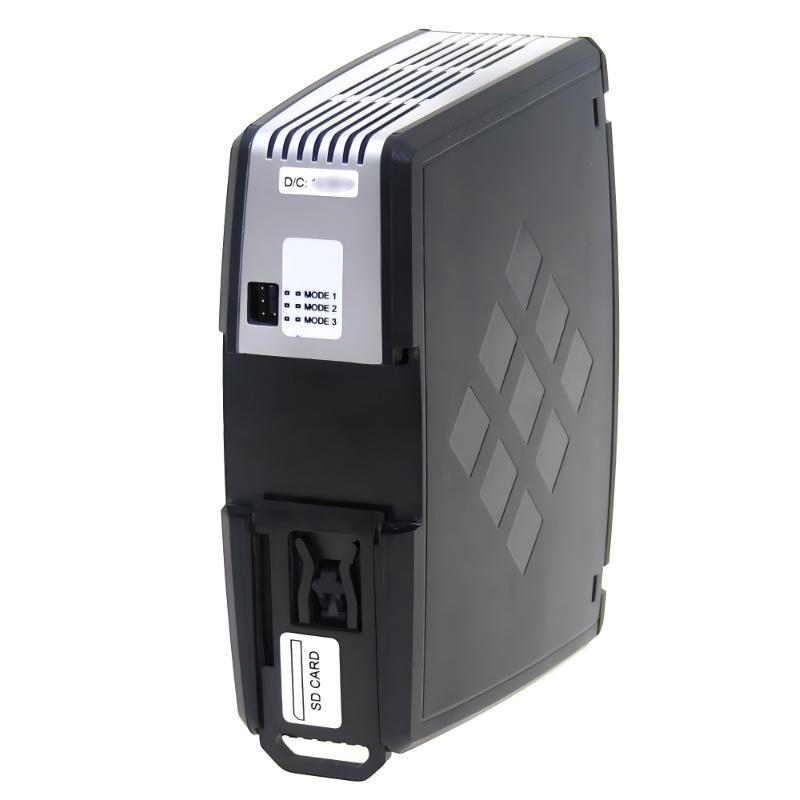

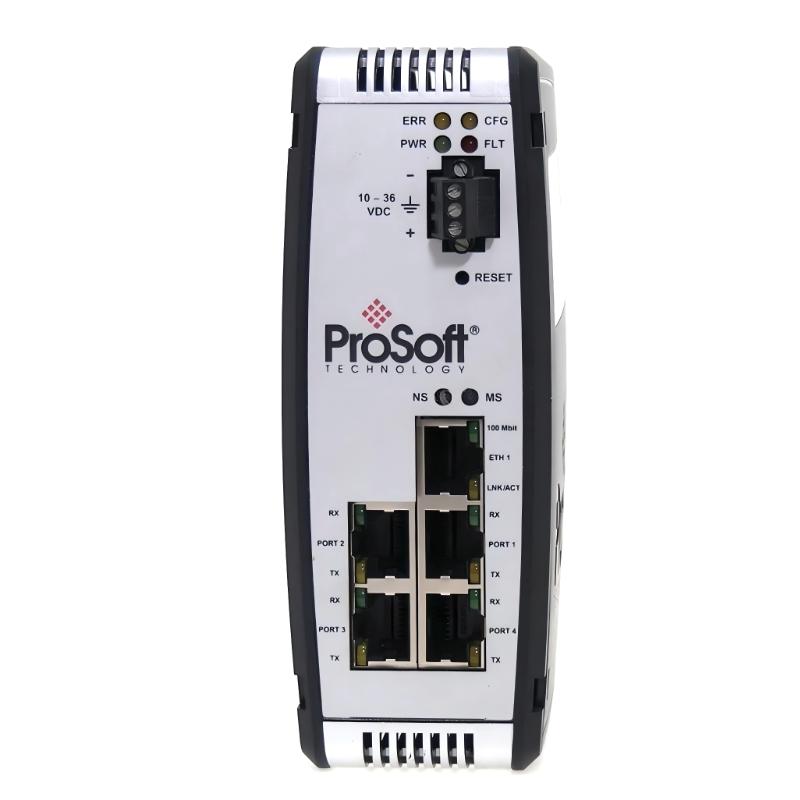

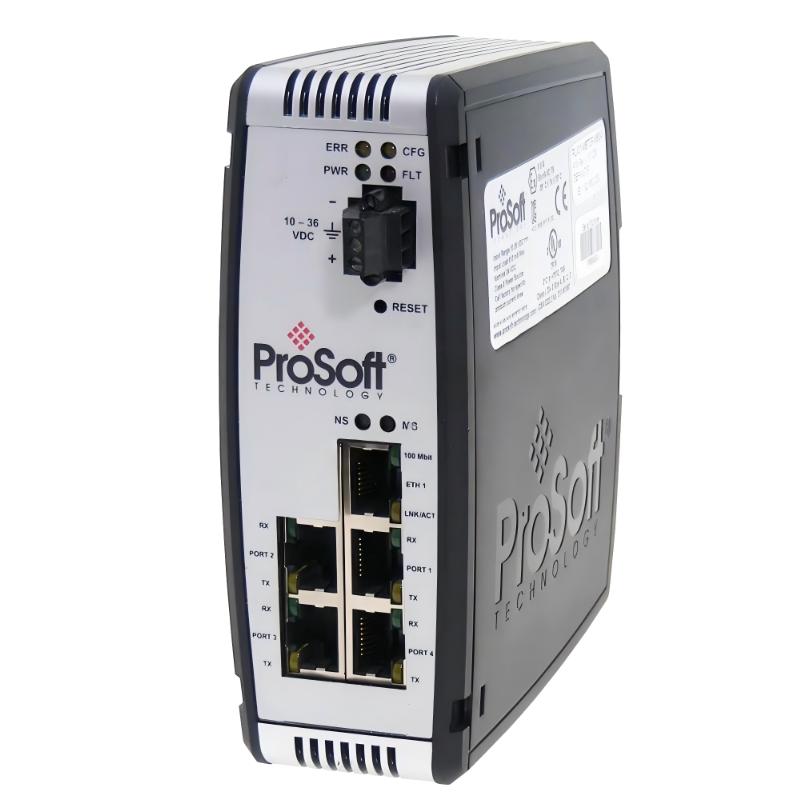

ProSoft PLX31-MBTCP-MBS4 Modbus TCP/IP to Modbus Serial Gateway

Applications

• Protocol Conversion Between Ethernet and Serial Systems
Enables seamless communication between Modbus TCP/IP networks and Modbus RTU/ASCII serial devices.

• SCADA System Integration
Connects modern Ethernet-based SCADA platforms with legacy serial field devices.

• Power and Energy Monitoring Systems
Used for integrating meters, relays, and protection devices using Modbus serial protocols into TCP/IP networks.

• Water and Wastewater Infrastructure
Supports distributed pump stations, flow control, and treatment equipment communication.

• Oil and Gas Remote Sites
Provides reliable protocol bridging for geographically distributed assets.

• Factory Automation Systems
Integrates mixed-generation equipment across serial and Ethernet networks.

• Multi-Device Industrial Networks
Supports large-scale serial device networks through a single Ethernet interface.

• System Modernization Projects
Ideal for upgrading legacy Modbus serial systems into modern Ethernet architectures.

Key Advantages

• Four Independent Serial Ports Architecture
Supports multiple Modbus serial networks simultaneously, reducing the need for multiple gateways.

• High Device Connectivity Capacity
Allows integration of up to hundreds of Modbus serial devices across distributed networks.

• Bidirectional Data Transfer
Ensures real-time communication between Modbus TCP/IP and Modbus serial devices.

• Flexible Network Design
Supports multiple client/server sessions for SCADA and control systems.

• Efficient Engineering Configuration
Simplifies setup with structured mapping tools and intuitive configuration utilities.

• Industrial-Grade Reliability
Designed for continuous operation in harsh industrial environments.

• Remote Diagnostics and Maintenance
Enables network monitoring and troubleshooting through Ethernet access.

• Reduced System Complexity
Eliminates the need for multiple protocol converters in large installations.

Technical FAQs

1. What is the main function of the PLX31-MBTCP-MBS4?

It converts Modbus TCP/IP communication to Modbus RTU/ASCII serial communication and vice versa.

2. How many serial ports does it support?

It supports four independent serial communication ports.

3. Can it handle multiple Modbus devices at once?

Yes. It can manage large numbers of serial Modbus devices distributed across its ports.

4. Does it support both client and server modes?

Yes. It supports flexible Modbus TCP/IP client and server communication roles.

5. Is it suitable for SCADA systems?

Yes. It is widely used in SCADA and industrial monitoring applications.

6. Does it support remote configuration?

Yes. Configuration and diagnostics can be performed over Ethernet.

7. Is programming required?

No complex programming is needed, but configuration and mapping are required.

8. Can it be used for system upgrades?

Yes. It is commonly used to modernize serial-based systems into Ethernet networks.

9. Does it support industrial environments?

Yes. It is designed for continuous industrial operation.

10. What types of devices can it connect?

It connects Modbus TCP/IP controllers with Modbus RTU/ASCII devices such as meters, PLCs, and sensors.
