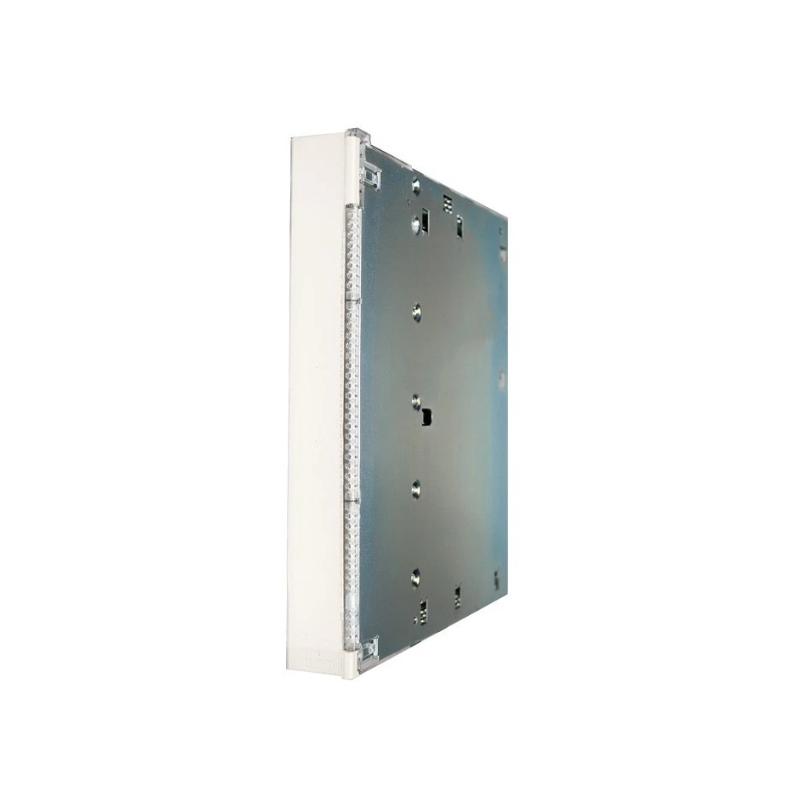

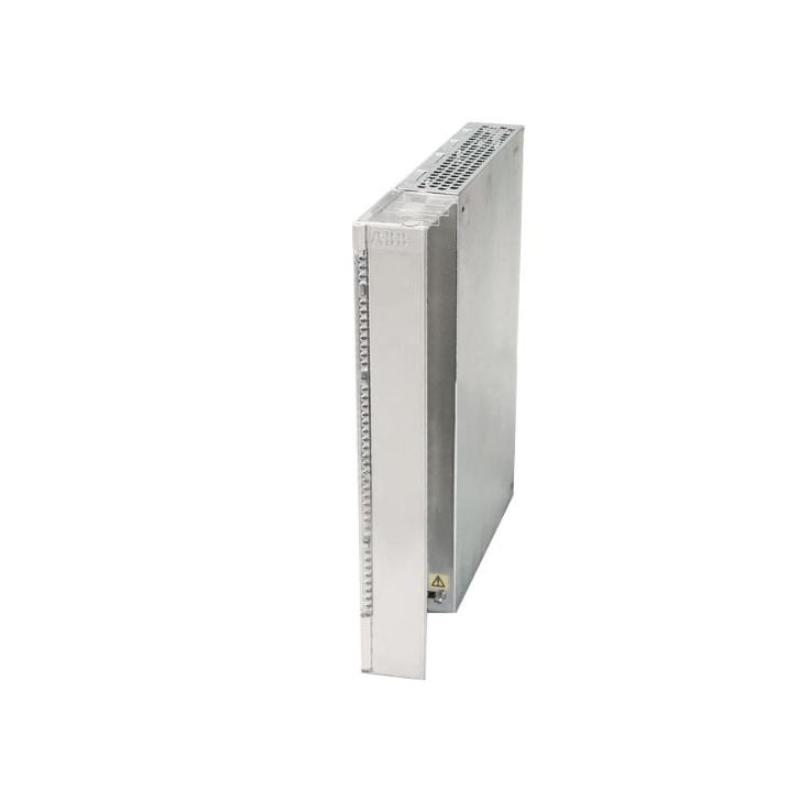

The ABB DI610 Digital Input Module is a high-performance component designed to provide reliable and precise digital signal input for industrial automation systems. With its high-density input capability and robust design, the DI610 is ideal for applications requiring fast and accurate monitoring of digital signals from a wide variety of field devices. Whether you’re managing sensors, switches, or other industrial components, the DI610 ensures seamless data acquisition, enabling real-time control and enhanced system efficiency.

Designed for flexibility and scalability, the DI610 integrates effortlessly into ABB’s broader automation solutions, offering easy communication and data exchange via Ethernet and RS485 interfaces. This module is a perfect solution for industries where system reliability, high input capacity, and real-time processing are essential.

Technical Specifications

Feature	Specification
Model	ABB DI610 Digital Input Module
I/O Type	Digital Inputs
Communication Interface	Ethernet, RS485
Operating Voltage	24V DC
Dimensions (WxHxD)	250mm x 200mm x 80mm
Weight	1.8 kg
Temperature Range	-20°C to 70°C
Mounting Type	DIN Rail
Input Channels	64 Digital Inputs

The DI610 offers an impressive 64 digital input channels, making it ideal for large-scale systems requiring the simultaneous monitoring of numerous digital signals. It operates on a 24V DC power supply, which is compatible with most industrial automation systems.

Recommended Related Models

ABB DA500 Communication Module – Ensures efficient data communication between the DI610 and other system components, enhancing overall system performance.
ABB DA502 Power Supply Module – Delivers stable power to the DI610, ensuring uninterrupted operation of the system.
ABB DA510 I/O Expansion Module – Provides additional input/output channels, expanding the DI610’s capacity for more complex applications.

Popular Allen Bradley Models

Allen Bradley 1756-IB32 Digital Input Module – A high-density input module with 32 digital inputs, ideal for large control systems.
Allen Bradley 1746-IB16 Digital Input Module – Offers 16 digital inputs, suitable for applications requiring fewer input channels.
Allen Bradley 1746-IH16 High-Speed Digital Input Module – Provides 16 high-speed inputs, optimized for fast-response applications.

Applications

The ABB DI610 Digital Input Module is suitable for a variety of industrial applications that require high-density digital signal monitoring:

Manufacturing Automation – Monitors signals from sensors, switches, and encoders to control and optimize production lines, assembly processes, and machinery.
Energy Management – Collects digital input signals from meters, protective devices, and relays in power plants, substations, and electrical grids.
Oil & Gas – Gathers data from safety devices, pressure switches, flow meters, and other field devices to monitor and control operations in oil rigs and refineries.
Water Treatment – Monitors flow meters, pressure switches, level sensors, and other devices to ensure reliable water processing and treatment systems.
Building Automation – Collects status signals from alarms, occupancy sensors, and safety switches in building management systems (BMS) to control lighting, HVAC, and security systems.

The DI610 is designed to manage large numbers of digital signals in industries where real-time monitoring is essential for system performance and operational safety.

Advantages

High-Density Input Channels – With 64 digital inputs, the DI610 is capable of handling large-scale systems with multiple digital devices, offering flexibility in complex applications.
Reliable Communication – The DI610 supports Ethernet and RS485 communication protocols, ensuring seamless integration with ABB’s automation products and third-party devices.
Wide Temperature Range – The DI610 operates in temperatures ranging from -20°C to 70°C, making it suitable for use in diverse industrial environments.
Compact and Robust Design – Despite offering 64 inputs, the DI610 is designed with a compact form factor (250mm x 200mm x 80mm), making it suitable for space-constrained installations.
DIN Rail Mounting – The DI610 is easily mounted on a DIN rail, providing quick installation and flexibility in industrial control panels.

Technical FAQs

How many digital inputs does the DI610 module support?
The DI610 supports 64 digital inputs, making it ideal for large systems that require the monitoring of numerous field devices.
What operating voltage is required for the DI610?
The DI610 operates with a 24V DC power supply, which is commonly used in industrial automation systems.
What is the temperature range for the DI610?
The DI610 operates in a temperature range of -20°C to 70°C, making it suitable for diverse industrial environments, from factory floors to outdoor installations.
How does the DI610 integrate with other systems?
The DI610 integrates seamlessly using Ethernet and RS485 communication protocols, enabling fast and reliable data transfer between the DI610 and other automation modules.
What is the weight of the DI610 module?
The DI610 weighs 1.8 kg, making it robust and stable for industrial use.
How is the DI610 mounted?
The DI610 can be mounted securely on a DIN rail, making installation quick and easy in control panels.
Can the DI610 be used for remote monitoring?
Yes, the DI610 supports Ethernet and RS485 communication, enabling remote monitoring and diagnostics of connected devices.
What types of devices can the DI610 monitor?
The DI610 can monitor a wide variety of digital devices, including sensors, switches, alarms, and safety equipment.
Can the DI610 be expanded with additional modules?
Yes, you can expand the DI610’s input/output capacity by adding ABB’s DA510 I/O Expansion Module, allowing for more I/O channels as your system grows.
Is the DI610 suitable for hazardous environments?
The DI610 is designed for general industrial use. For highly hazardous locations, additional protective measures may be required based on local safety regulations.
