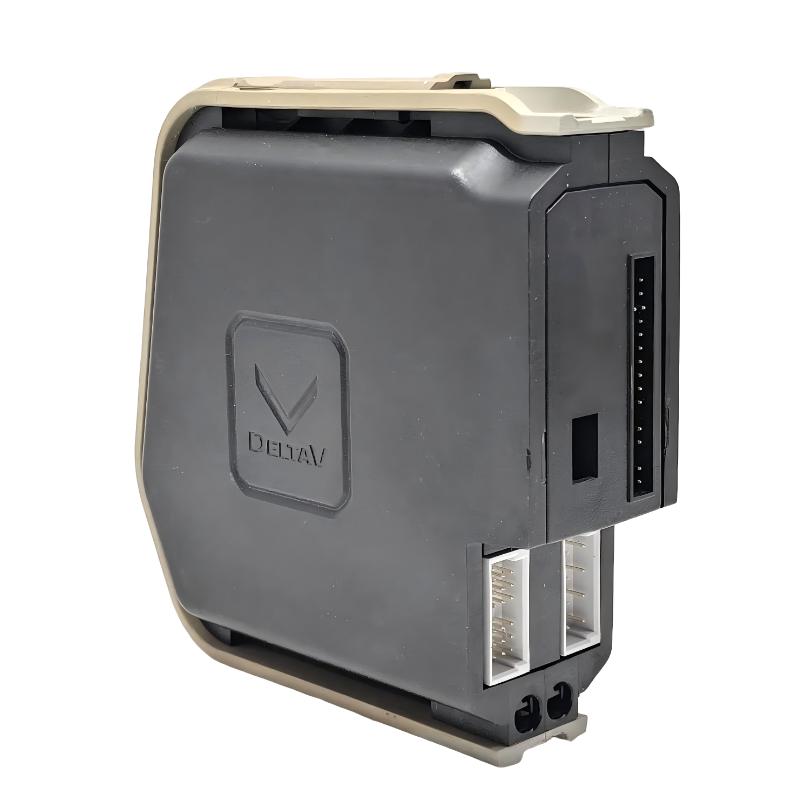

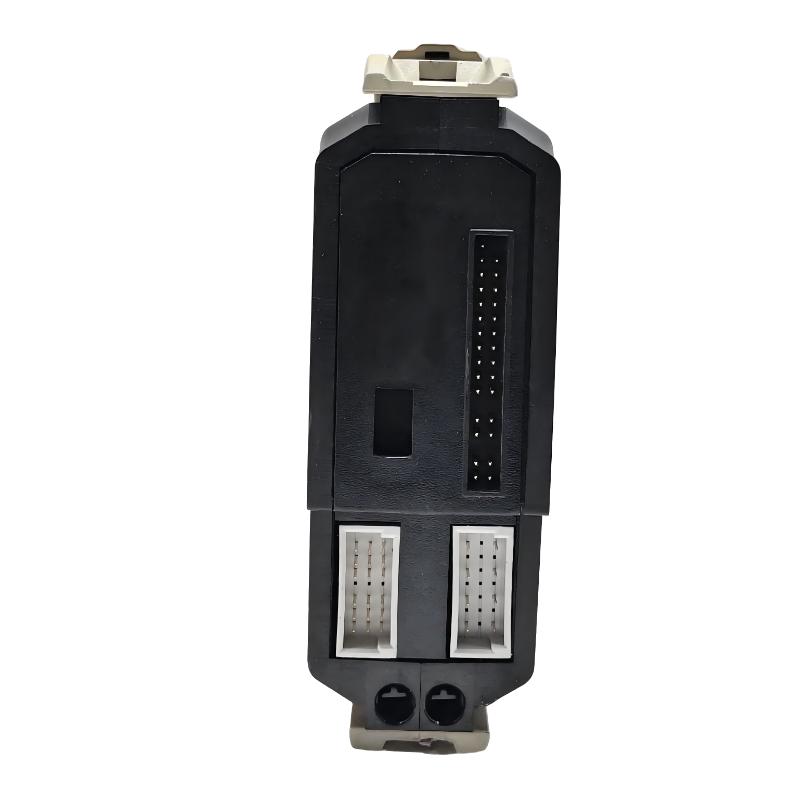

Emerson SE4003S2B11 Analog Input Enhancement Card

Applications

• DeltaV S-Series Process Signal Acquisition
Used to collect and condition analog process signals such as pressure, temperature, flow, and level in DeltaV distributed control systems.

• High-Density Industrial I/O Systems
Supports large-scale analog signal acquisition in oil & gas, chemical, and power plant automation systems.

• Process Control and Monitoring
Enables stable measurement of continuous process variables for closed-loop control applications.

• Refinery and Petrochemical Plants
Widely applied in critical process units requiring reliable 4–20 mA signal handling.

• Power Generation Systems
Used in turbine, boiler, and auxiliary system monitoring within DCS architectures.

• Field Instrument Integration
Connects transmitters and smart field devices into centralized control systems.

• Safety and Critical Monitoring Systems
Supports stable data acquisition for process safety and alarm systems.

• System Expansion and Upgrade Projects
Allows additional analog input capacity in existing DeltaV installations.

Key Advantages

• High-Density 16-Channel Design
Provides efficient analog input expansion for complex process systems.

• HART Communication Support
Enables advanced diagnostics and device-level information from smart field instruments.

• Enhanced Signal Processing Accuracy
Delivers stable and precise 4–20 mA signal acquisition for process control.

• DeltaV Native Integration
Designed for seamless compatibility with Emerson DeltaV S-Series architecture.

• Robust Industrial Reliability
Built for continuous operation in demanding process environments.

• Improved Channel Utilization Efficiency
Supports optimized wiring and reduced cabinet complexity.

• Stable Long-Term Operation
Maintains consistent performance under temperature and electrical noise conditions.

• Supports Redundant System Architectures
Suitable for high-availability process control systems.

Technical FAQs

1. What is the main function of SE4003S2B11?
It is an analog input enhancement card used to acquire 4–20 mA process signals in DeltaV systems.

2. How many input channels does it support?
It supports 16 analog input channels.

3. Does it support HART communication?
Yes. It supports HART-enabled field devices for diagnostics and configuration.

4. What type of signals does it accept?
It primarily accepts 4–20 mA analog signals.

5. What system is it designed for?
It is designed for Emerson DeltaV S-Series control systems.

6. Is it suitable for redundant configurations?
Yes. It supports redundant architecture depending on system design.

7. What industries use this module?
Oil & gas, petrochemical, chemical processing, and power generation.

8. Does it require external signal conditioning?
No. It is designed for direct integration with DeltaV I/O architecture.

9. Can it be used for safety systems?
Yes. It is commonly used in process monitoring and alarm systems.

10. Is it suitable for continuous operation?
Yes. It is designed for 24/7 industrial environments.
