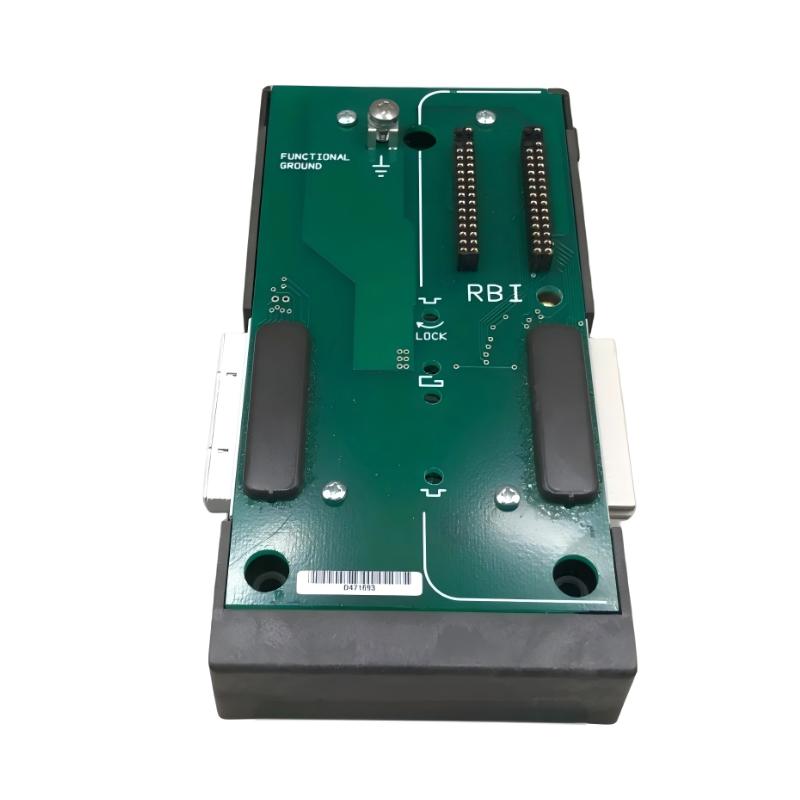

Emerson VE4052M1 Fieldbus H1 Carrier Board

Applications

• DeltaV Fieldbus H1 Network Architecture
Used as a core communication carrier for FOUNDATION Fieldbus H1 segments in Emerson DeltaV distributed control systems.

• Process Automation Systems
Enables integration of multiple field devices into a single digital communication segment for oil & gas, chemical, and petrochemical plants.

• Power Generation Control Systems
Applied in turbine auxiliary systems and balance-of-plant monitoring using fieldbus-based I/O structures.

• Industrial Distributed Control Systems (DCS)
Supports modular expansion of fieldbus I/O in large-scale automation infrastructures.

• Smart Field Device Integration
Connects intelligent field instruments using FOUNDATION Fieldbus H1 protocol.

• Refinery and Continuous Process Control
Used in continuous production environments requiring stable, deterministic communication.

• Remote I/O Architecture Systems
Reduces wiring complexity by enabling multi-device communication over a single fieldbus segment.

• System Expansion and Retrofit Projects
Allows upgrade of legacy I/O systems to modern digital fieldbus architectures.

Key Advantages

• FOUNDATION Fieldbus H1 Communication Support
Provides standardized digital communication for multiple field devices on a single segment.

• Reduced Wiring Architecture
Significantly decreases cabling cost and installation complexity compared to conventional I/O systems.

• High Device Density Capability
Supports multiple field devices per segment for efficient system design.

• DeltaV Native Compatibility
Fully integrated with Emerson DeltaV M-series I/O architecture.

• Improved Diagnostic Visibility
Enables advanced device-level diagnostics and process data access.

• Modular System Expansion
Allows scalable addition of fieldbus segments without major redesign.

• Industrial-Grade Reliability
Designed for continuous operation in harsh process environments.

• Flexible Cabinet Installation
Suitable for DIN-rail or panel-mounted configurations depending on enclosure type.

Technical FAQs

1. What is VE4052M1 used for?
It is a Fieldbus H1 carrier board used to connect FOUNDATION Fieldbus devices to DeltaV systems.

2. What communication protocol does it support?
It supports FOUNDATION Fieldbus H1 protocol.

3. How many devices can it support?
Typically up to 16–32 devices per fieldbus segment depending on system design.

4. Does it process control logic?
No. It functions as a communication carrier, not a controller.

5. Is it part of DeltaV I/O system?
Yes, it is part of the DeltaV M-series fieldbus architecture.

6. Does it reduce wiring requirements?
Yes, significantly by enabling multi-device communication over one segment.

7. What industries use it?
Oil & gas, petrochemical, chemical, and power generation industries.

8. Can it be used for redundant systems?
Yes, depending on system configuration and architecture.

9. Is it suitable for harsh environments?
Yes, it is designed for industrial-grade conditions.

10. Does it require external configuration tools?
Yes, configuration is done within the DeltaV engineering environment.
