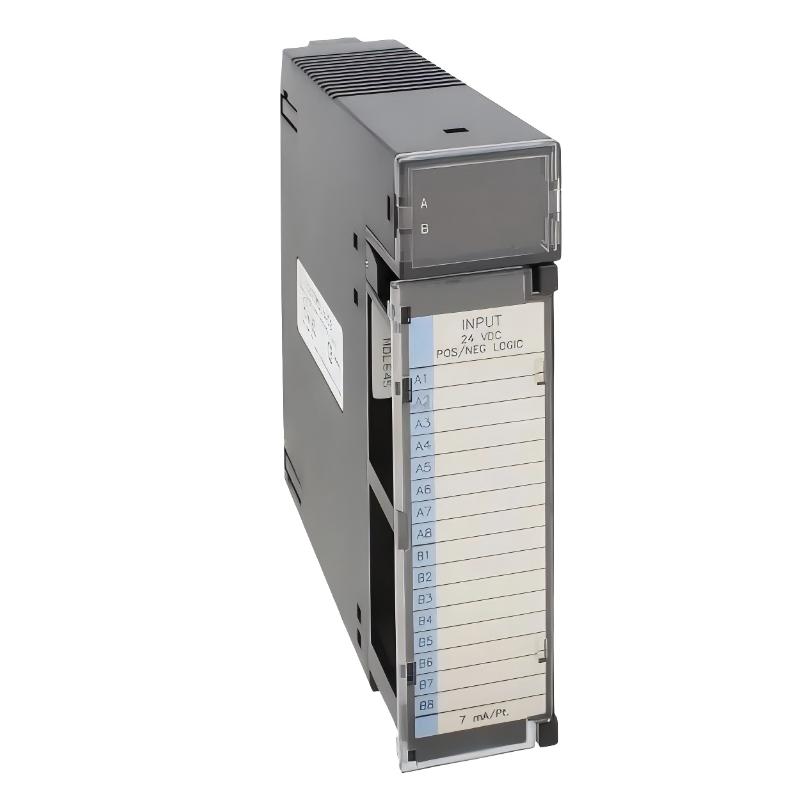

GE IC694MDL645CA RX3i Input Module

Applications

• Discrete Signal Acquisition Systems
Used to receive digital input signals from switches, pushbuttons, proximity sensors, and contact devices in PACSystems RX3i controllers.

• Factory Automation Equipment
Provides reliable status monitoring for production lines, conveyors, and machine control systems.

• Process Control Systems
Supports field signal collection in chemical, petrochemical, and water treatment applications.

• Material Handling Systems
Monitors sensors and actuators in automated warehouses and logistics facilities.

• Packaging and Assembly Lines
Captures machine feedback and operator input signals for precise process control.

• Power and Utility Infrastructure
Used in substations and industrial facilities requiring dependable digital input processing.

• OEM Machine Applications
Integrates easily into custom machinery and equipment control architectures.

• System Expansion Projects
Adds additional input capacity to existing PACSystems RX3i installations.

Key Advantages

• 16-Point Input Design
Provides efficient acquisition of multiple digital signals within a compact module.

• Positive and Negative Logic Compatibility
Supports flexible wiring configurations for different field devices.

• Fast Response Performance
Ensures timely detection of changes in input states.

• LED Status Indicators
Allows quick identification of active input channels for simplified troubleshooting.

• Industrial-Grade Reliability
Designed for continuous operation in demanding environments.

• Seamless RX3i Integration
Optimized for GE PACSystems RX3i platforms.

• High Noise Immunity
Maintains stable performance in electrically noisy industrial applications.

• Easy Installation and Maintenance
Simplifies system upgrades and module replacement.

Technical FAQs

1. What is the primary function of IC694MDL645CA?
It is a discrete input module used to receive digital signals from field devices.

2. How many input channels does it provide?
It offers 16 digital input channels.

3. What is the nominal input voltage?
The module is designed for 24 VDC input signals.

4. Does it support positive and negative logic?
Yes, both wiring configurations are supported.

5. Which controller family is it compatible with?
It is designed for PACSystems RX3i systems.

6. What devices can be connected to the module?
Pushbuttons, switches, proximity sensors, and auxiliary contacts.

7. Are status indicators available?
Yes, each channel has an LED indicator.

8. Can the module operate continuously?
Yes, it is engineered for 24/7 industrial applications.

9. Is it suitable for distributed I/O architectures?
Yes, it can be used in local and distributed configurations.

10. What industries commonly use this module?
Manufacturing, utilities, oil and gas, and process automation industries.
