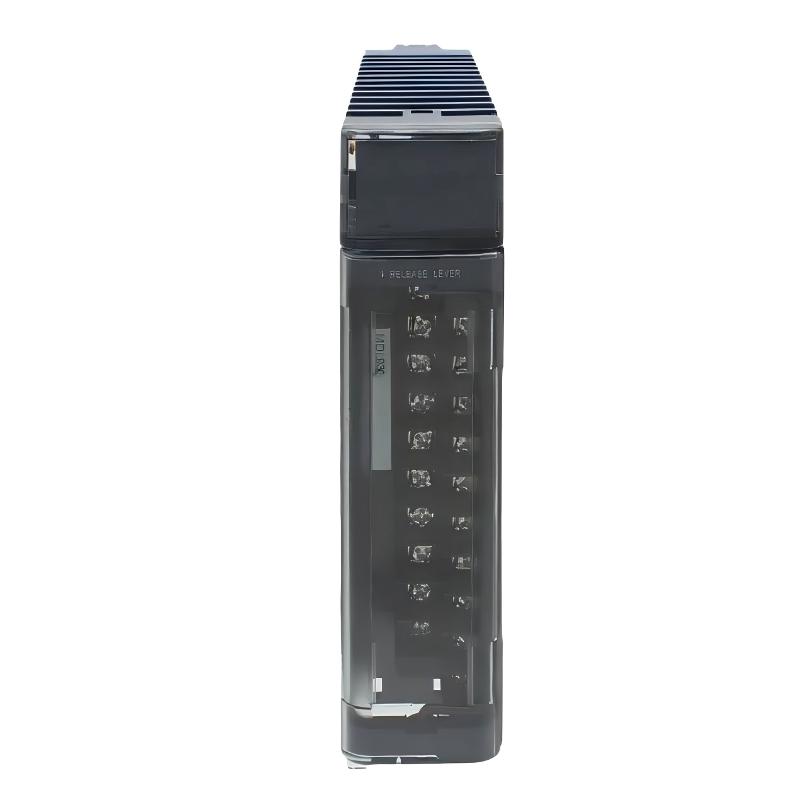

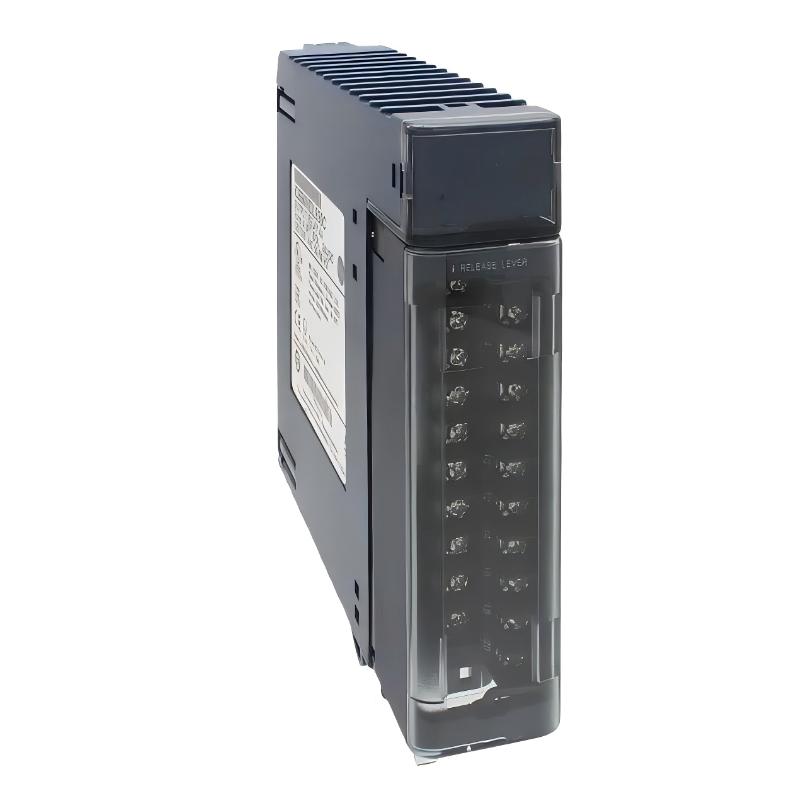

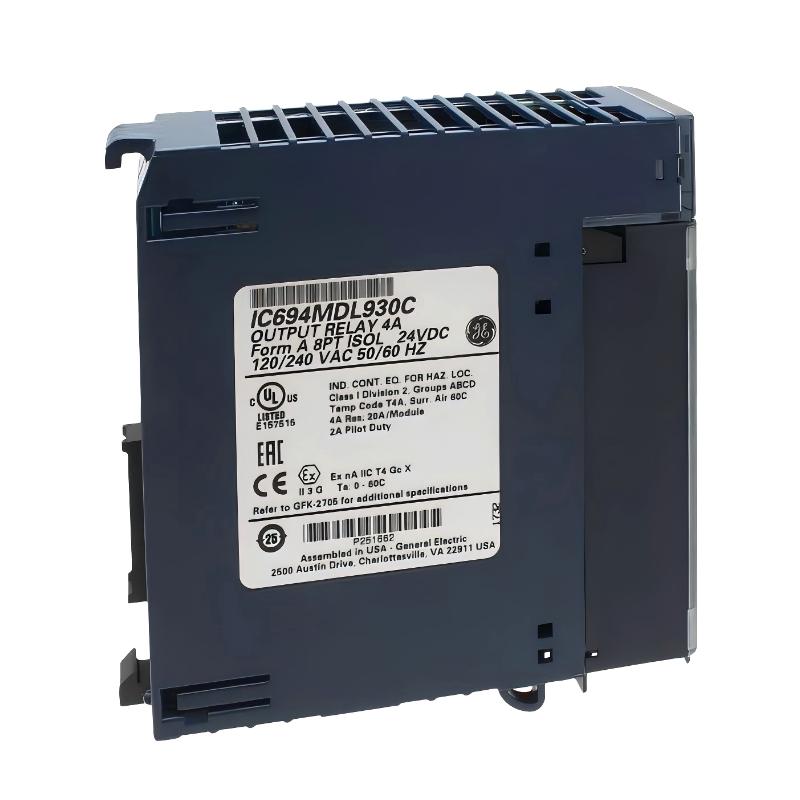

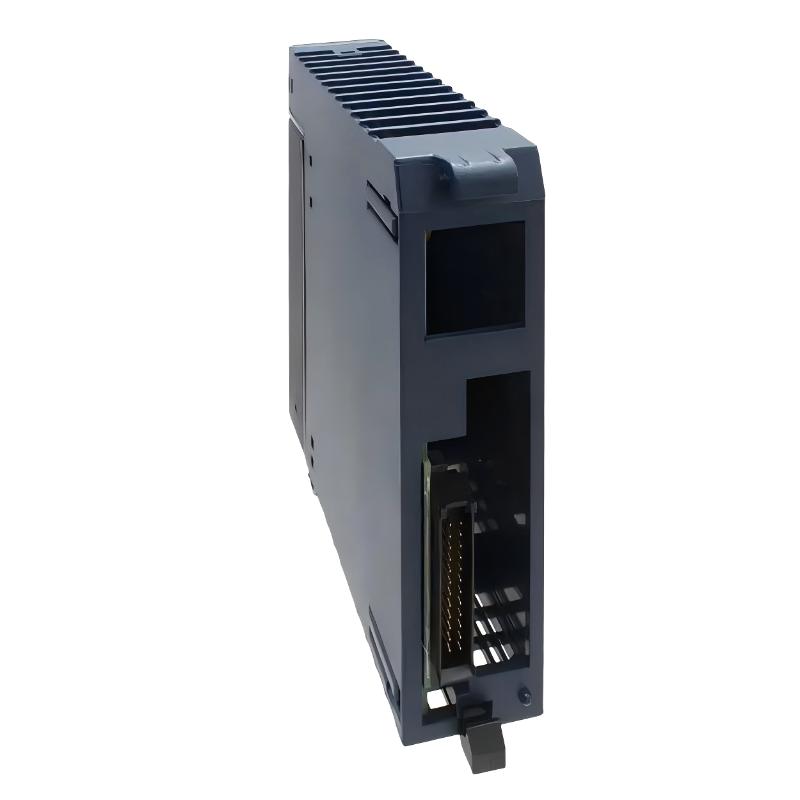

GE IC694MDL930CA Isolation Relay Output Module

Applications

• Industrial Output Control Systems
Used to switch external loads such as solenoids, contactors, relays, and indicator lamps in PACSystems RX3i applications.

• Factory Automation Equipment
Provides isolated relay outputs for assembly lines, packaging machines, and material handling systems.

• Process Control Applications
Enables reliable control of valves, pumps, and auxiliary devices in chemical and water treatment facilities.

• Power and Utility Systems
Supports high-voltage AC and DC load switching in substations and infrastructure projects.

• OEM Machinery
Offers flexible relay outputs for custom machine builders and integrated automation solutions.

• Distributed I/O Architectures
Provides isolated control signals for remote and local field devices.

• Mixed Voltage Applications
Allows different voltage levels and types to be connected independently to each output channel.

• System Expansion Projects
Adds isolated output capability to existing PACSystems RX3i installations.

Key Advantages

• Eight Independently Isolated Relay Outputs
Each channel features a separate common, providing maximum wiring flexibility.

• Wide Voltage Compatibility
Supports both AC and DC loads, making it suitable for diverse applications.

• High Switching Capacity
Handles resistive loads up to 4 A per output channel.

• Fast Relay Response
Provides reliable output switching for time-sensitive operations.

• Individual LED Indicators
Simplifies diagnostics and maintenance by displaying output status.

• Seamless RX3i Integration
Designed specifically for GE PACSystems RX3i platforms.

• Industrial-Grade Reliability
Engineered for long-term operation in harsh environments.

• Simplified Installation
Compact design allows efficient mounting and maintenance.

Technical FAQs

1. What is the primary function of IC694MDL930CA?
It provides isolated relay outputs for controlling external AC or DC loads.

2. How many output channels are available?
The module offers eight independently isolated relay outputs.

3. What contact type does the module use?
It uses Form A (normally open) relay contacts.

4. What load voltage ranges are supported?
It supports 5–30 VDC and 5–250 VAC loads.

5. What is the maximum load current per output?
Up to 4 A for resistive loads and 2 A for pilot-duty loads.

6. Does each output have its own common terminal?
Yes, each output channel is individually isolated with a separate common.

7. Is the module compatible with PACSystems RX3i?
Yes, it is designed for PACSystems RX3i and compatible Series 90-30 systems.

8. Are output status indicators included?
Yes, each channel has an individual LED indicator.

9. Can it control both AC and DC devices?
Yes, the relay outputs support both AC and DC loads.

10. Is it suitable for continuous industrial operation?
Yes, it is designed for reliable 24/7 operation.
