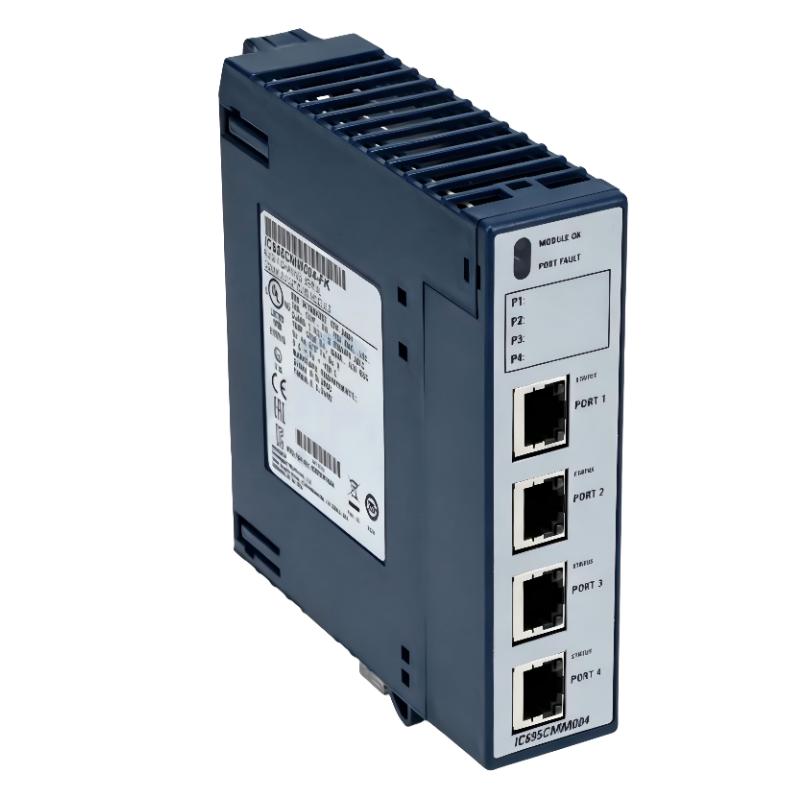

GE IC695CMM004CA RX3i Serial Communication Module

Applications

• Industrial Serial Communication Systems
Provides multi-protocol serial communication between PACSystems RX3i controllers and field devices such as drives, meters, and sensors.

• SCADA and Remote Monitoring Systems
Enables data exchange with RTUs, remote stations, and supervisory control systems.

• Process Automation Networks
Supports communication with instrumentation in chemical, oil & gas, and water treatment plants.

• Power Generation Systems
Used for monitoring and control communication in turbines, boilers, and auxiliary systems.

• Material Handling and Logistics Systems
Connects barcode readers, weigh scales, and legacy serial devices in automation lines.

• OEM Machine Integration
Ideal for machine builders requiring flexible serial protocol support.

• Legacy System Integration
Allows modern RX3i controllers to communicate with older serial-based equipment.

• Distributed Control Architectures
Supports multi-device serial networking in complex automation environments.

Key Advantages

• Four Independent Serial Ports
Each channel operates independently for flexible multi-device communication.

• Multi-Protocol Support
Supports Modbus Master/Slave, DNP3, CCM, and Serial I/O protocols.

• RS-232 / RS-485 / RS-422 Compatibility
Provides flexible electrical interface selection per application need.

• High Electrical Isolation Design
Improves system stability and protects against field noise and surges.

• Configurable Baud Rates
Supports a wide range of communication speeds for different devices.

• Robust Industrial Performance
Designed for continuous operation in harsh industrial environments.

• Seamless RX3i Integration
Optimized for GE PACSystems RX3i backplane architecture.

• Advanced Diagnostic Indicators
Simplifies troubleshooting with module and port status LEDs.

Technical FAQs

1. What is the primary function of IC695CMM004CA?
It provides multi-port serial communication between RX3i controllers and external devices.

2. How many serial ports does it have?
It includes four independent serial communication ports.

3. Which communication protocols are supported?
It supports Modbus, DNP3, CCM Slave, and Serial I/O protocols.

4. What physical interfaces are available?
RS-232, RS-485, and RS-422 selectable per port.

5. Can each port be configured independently?
Yes, each port can operate with different settings and protocols.

6. Is it suitable for Modbus applications?
Yes, it is widely used for Modbus Master/Slave communication.

7. Does it support electrical isolation?
Yes, it provides isolated serial communication channels.

8. Which platform is it designed for?
It is designed for GE PACSystems RX3i systems.

9. Can it connect to legacy equipment?
Yes, it is commonly used for integrating older serial devices.

10. Is it suitable for continuous operation?
Yes, it is engineered for 24/7 industrial use.
