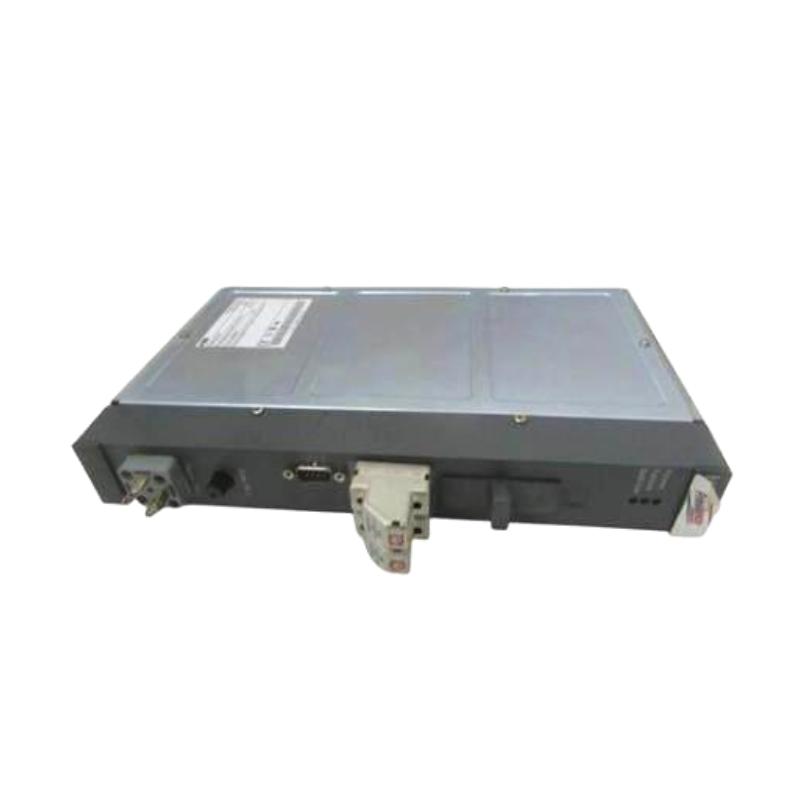

The ABB DLM01 is a versatile discrete logic module engineered to bring flexible signal processing and logic evaluation into ABB control systems. Built for high reliability and consistent performance, the DLM01 allows automation systems to perform discrete logic operations directly at the I/O layer, reducing reliance on central controllers and improving response times. This module is especially valuable in machinery control, sequencing tasks, and system interlocks where reliable logic processing enhances safety, minimizes latency, and simplifies system architecture. With its rugged design and intuitive logic configuration, the DLM01 delivers dependable performance in industrial environments where uptime and accuracy are paramount.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | ABB DLM01 |
| Module Type | Discrete Logic Module |
| Logic Channels | 8 Logic Functions |
| Input Voltage | 24 V DC |
| Logic Output Type | Discrete / Relay Compatible |
| Input Type | Digital / Discrete |
| Logic Response Time | Sub-millisecond (typical) |
| Mounting | DIN Rail or System Carrier |
| Operating Temperature | −20 °C to +60 °C |
| Dimensions (W×H×D) | 110 mm × 120 mm × 60 mm |
| Weight | 0.30 kg |
