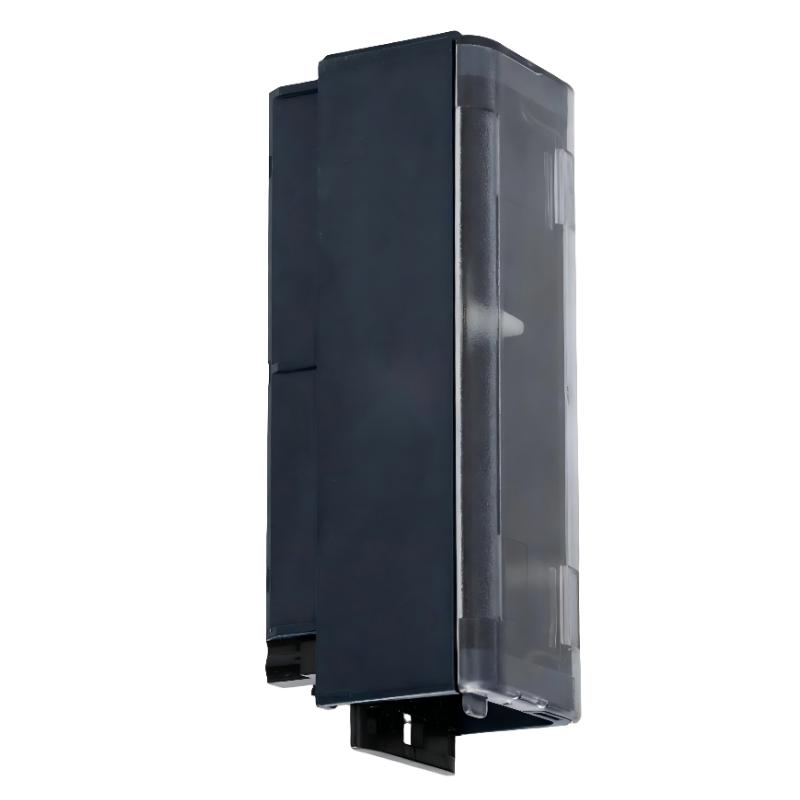

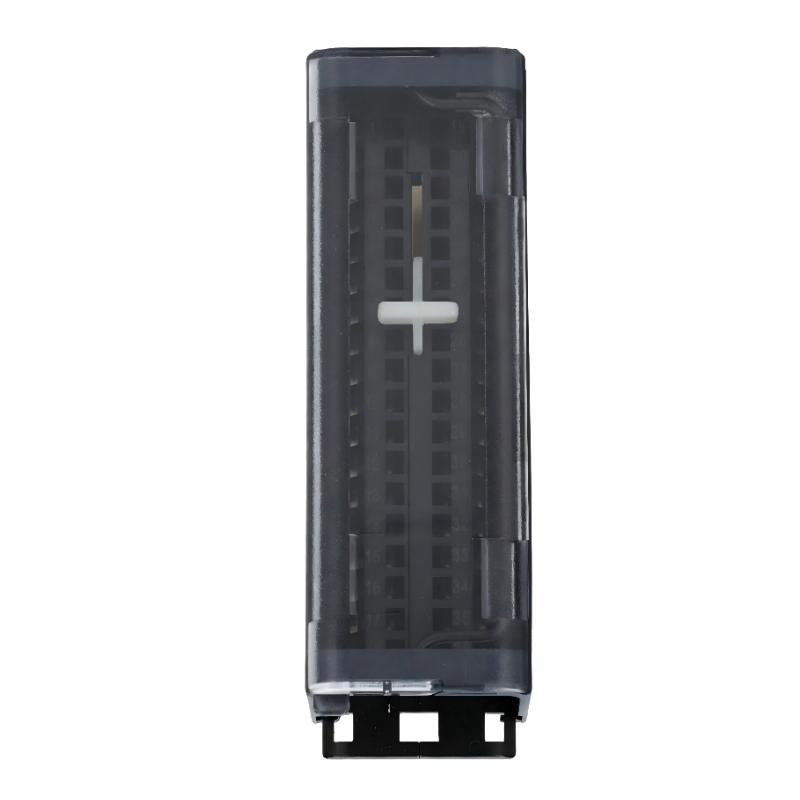

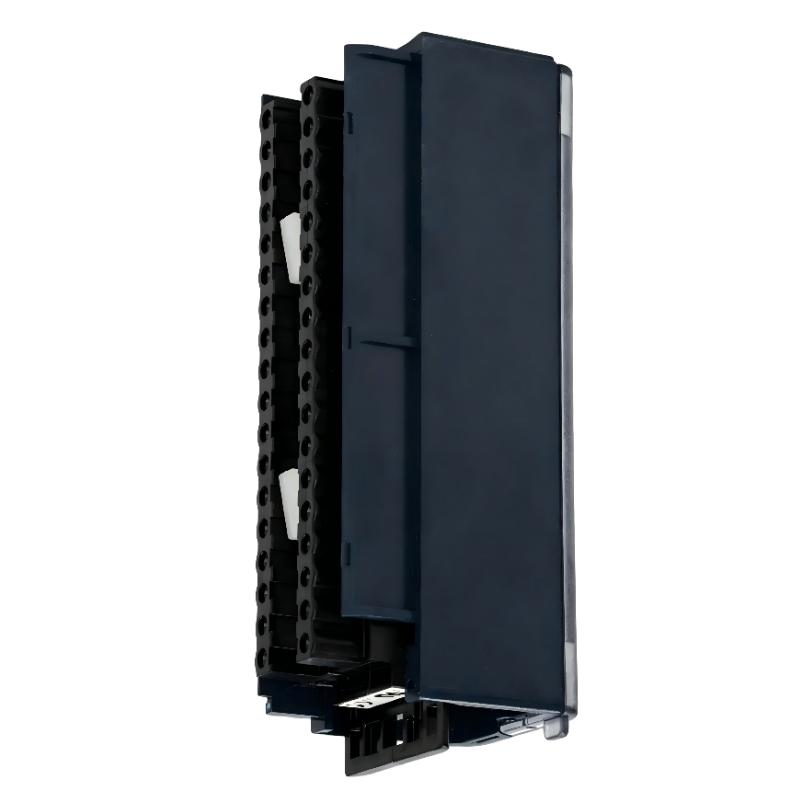

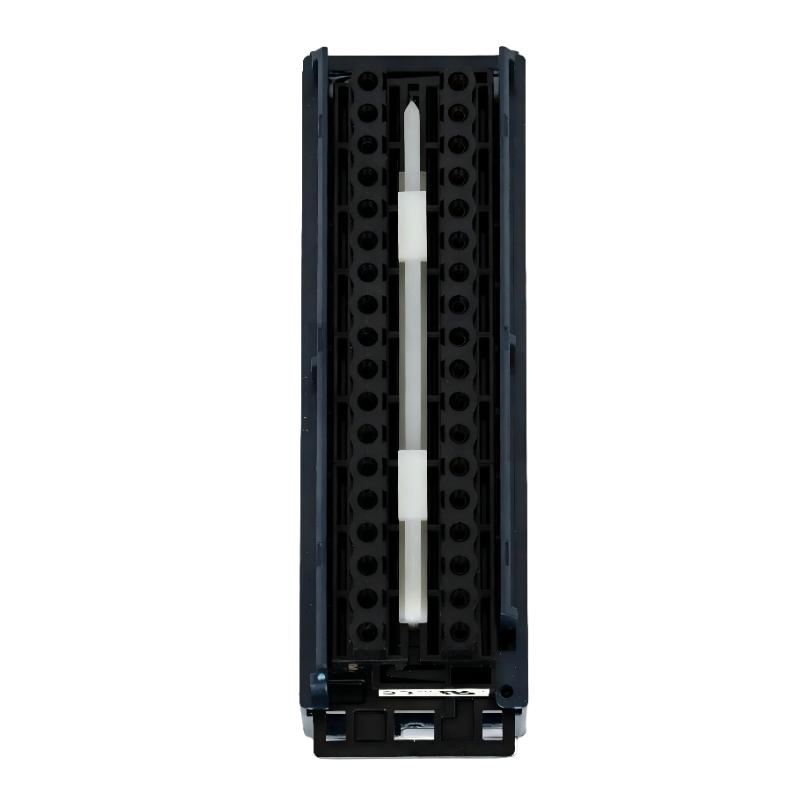

GE IC694TBS032 36-pin Spring-loaded Terminal Block

Applications

• PACSystems RX3i I/O Wiring Interfaces
Used as a high-density connection interface between RX3i I/O modules and field wiring in industrial automation systems.

• Factory Automation Control Panels
Provides structured and reliable wiring termination for production lines, robotic systems, and packaging machines.

• Process Control Systems
Supports secure signal connections for sensors, actuators, and instrumentation in continuous process environments.

• Power and Utility Installations
Used in substations and energy control cabinets for organized field wiring distribution.

• OEM Machine Building Applications
Ideal for machine manufacturers requiring compact and modular wiring solutions.

• Material Handling Systems
Supports conveyor systems, sorting machines, and warehouse automation equipment.

• System Expansion and Maintenance
Facilitates quick replacement and expansion of existing RX3i I/O wiring configurations.

• Industrial Signal Distribution Panels
Ensures clean and organized signal routing within control enclosures.

Key Advantages

• 36-Pin High-Density Design
Supports compact wiring layouts while maintaining clear signal separation.

• Spring-Clamp Connection Technology
Provides vibration-resistant and maintenance-free wire termination.

• Fast Installation Process
Reduces wiring time compared to traditional screw terminal systems.

• Stable Electrical Contact Performance
Ensures consistent signal integrity under industrial operating conditions.

• Tool-Free Wire Insertion
Simplifies field installation and maintenance procedures.

• High Reliability in Harsh Environments
Designed for continuous operation in vibration and noise-prone environments.

• Direct Module Compatibility
Engineered specifically for GE PACSystems RX3i I/O modules.

• Reduced Maintenance Requirements
Spring mechanism maintains constant contact pressure over time.

Technical FAQs

1. What is the main function of IC694TBS032?
It provides a spring-clamp wiring interface for RX3i I/O modules.

2. How many connection points does it have?
It offers 36 individual terminals.

3. What type of connection technology is used?
It uses spring-loaded clamp terminals.

4. Is special tooling required for wiring?
No, wires can be inserted directly without screws or torque tools.

5. What wire types are supported?
It supports standard industrial stranded and solid copper conductors.

6. Is it compatible with RX3i systems?
Yes, it is designed for GE PACSystems RX3i modules.

7. Does it support vibration resistance?
Yes, spring-clamp design maintains stable contact under vibration.

8. Can it be reused after wiring changes?
Yes, terminals are reusable with proper release operation.

9. Is it suitable for industrial environments?
Yes, it is built for harsh automation conditions.

10. What is its main installation benefit?
It significantly reduces wiring time and improves panel organization.
