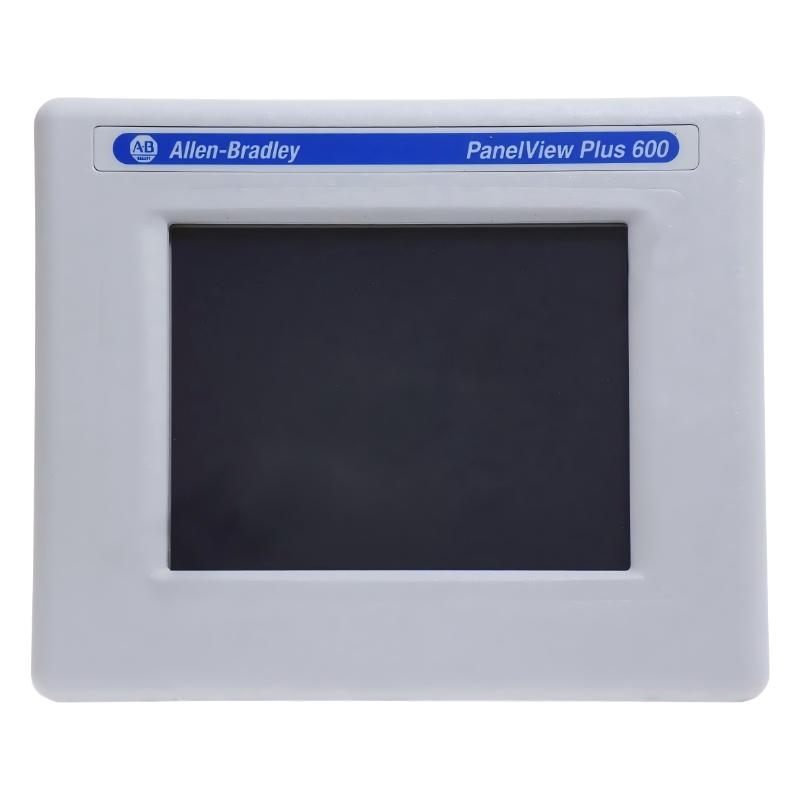

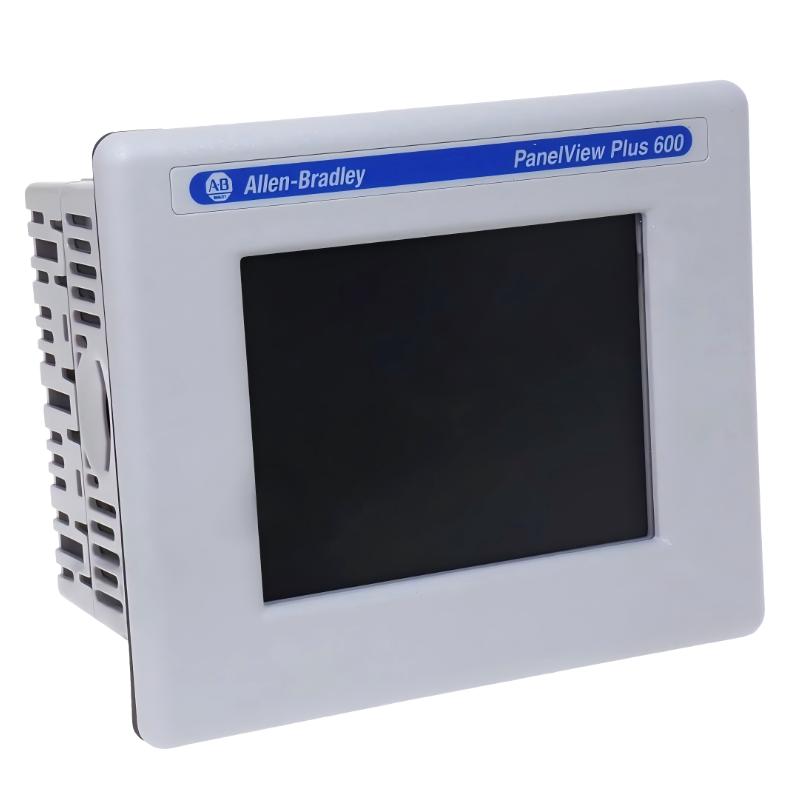

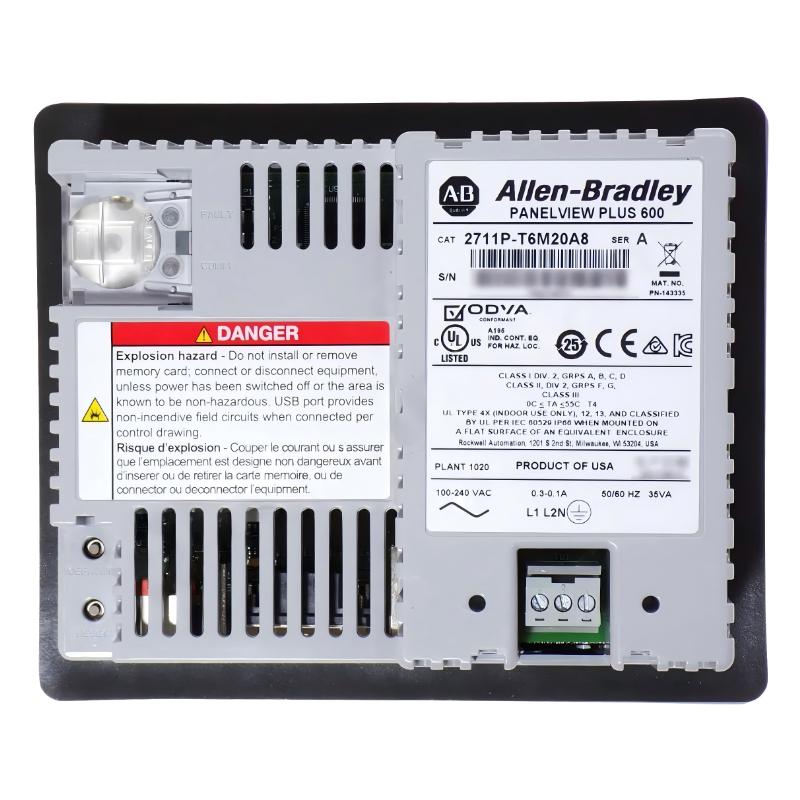

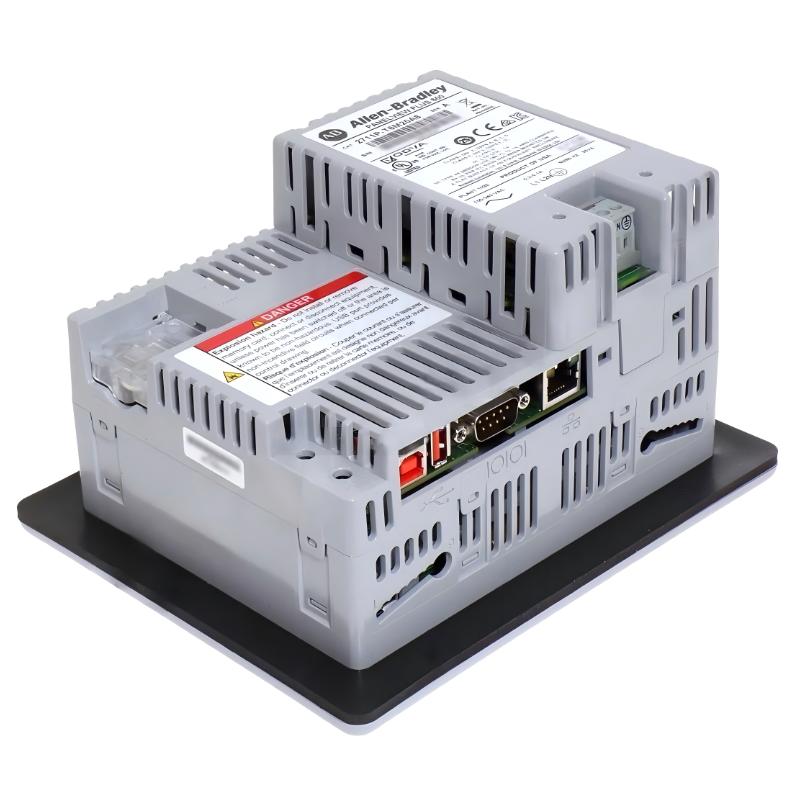

Allen Bradley 2711P-T6M20A8 PanelView Plus 6 600 Operator Interface
Allen Bradley 2711P-T6M20A8 PanelView Plus 6 600 Operator Interface
0.0
Points
Brand:Allen Bradley PLC Item No.:2711P-T6M20A8 Product Origin:USA Product Dimensions:185 x 68 x 152 mm Product Weight:0.594 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 2711P-T6M20A8 PanelView Plus 6 600 is a compact operator interface designed for industrial automation systems requiring reliable local visualization and control. It provides operators with real-time access to machine status, alarms, and process data through a rugged grayscale display, making it suitable for demanding factory environments and legacy system maintenance.
Technical Specifications
Parameter
Specification
Model
2711P-T6M20A8
Product Type
HMI Operator Interface
Series
PanelView Plus 6 600
Display Type
5.7-inch grayscale TFT LCD
Resolution
320 × 240
Input Type
Touchscreen + function interface
Communication
Ethernet / RS-232 (config dependent)
Power Input
100–240 VAC
Memory
~73 MB user memory
Operating System
Windows CE 6.0
Dimensions
185 mm × 68 mm × 152 mm
Weight
0.594 kg
Recommended Related Models
Model
Product Name
2711P-T6C20A8
PanelView Plus 6 600 Color Touch Terminal
2711P-T7C4D1
PanelView Plus 7 Standard 7-inch Terminal
2711P-K6M20A8
PanelView Plus 6 600 Keypad Terminal
2711P-T10C4A8
PanelView Plus 1000 Operator Interface
Popular Related Models
Model
Product Name
1756-L81E
ControlLogix 5580 Controller Module
1756-EN2T
ControlLogix Ethernet Communication Module
1734-IB8
POINT I/O Digital Input Module
1734-OB8
POINT I/O Digital Output Module
Applications
• Machine-level HMI control and status visualization for compact automation systems
• Packaging, filling, and labeling equipment operator panels
• Food and beverage production monitoring and local control stations
• Water treatment and pumping station interface terminals
• OEM machinery requiring small footprint human-machine interface
• Conveyor systems and material handling equipment monitoring
• PLC-based control cabinet visualization and alarm handling
• Retrofit replacement for legacy PanelView Plus 6 600 installations
Key Advantages
• Compact 6-inch industrial HMI designed for space-limited control panels
• Clear grayscale display for reliable process visualization in industrial environments
• Integrated communication for seamless PLC connectivity
• Rugged design for vibration, EMI, and harsh factory conditions
• Simple operator interface reduces training time and operational errors
• Stable 24/7 performance for continuous production environments
• Efficient alarm display and system status monitoring
• Easy installation and retrofit into existing PanelView cutouts
Technical FAQs
Q1: Is this model still supported?
It is a legacy PanelView Plus 6 series unit and is generally considered discontinued but still widely used in existing systems.
Q2: Can it connect to ControlLogix PLCs?
Yes, it supports integration with Allen-Bradley PLC systems including ControlLogix and CompactLogix.
Q3: Does it support Ethernet communication?
Yes, it supports industrial Ethernet along with serial communication depending on configuration.
Q4: Is it suitable for harsh environments?
Yes, it is designed for industrial vibration, temperature variation, and EMI resistance.
Q5: Can it display alarms and process messages?
Yes, it supports alarm handling and message display functions.
Q6: Is touchscreen operation supported?
Yes, it uses an industrial resistive touchscreen designed for gloves and factory use.
Q7: Can it run continuously in production lines?
Yes, it is designed for 24/7 continuous industrial operation.
Q8: Is programming required for replacement?
Yes, it uses FactoryTalk View Machine Edition runtime applications.
Q9: Can it be used as a retrofit replacement?
Yes, it is commonly used to replace older PanelView 600 systems.
Q10: Does it support multiple PLC connections?
Depending on configuration, it can communicate with multiple controllers.
