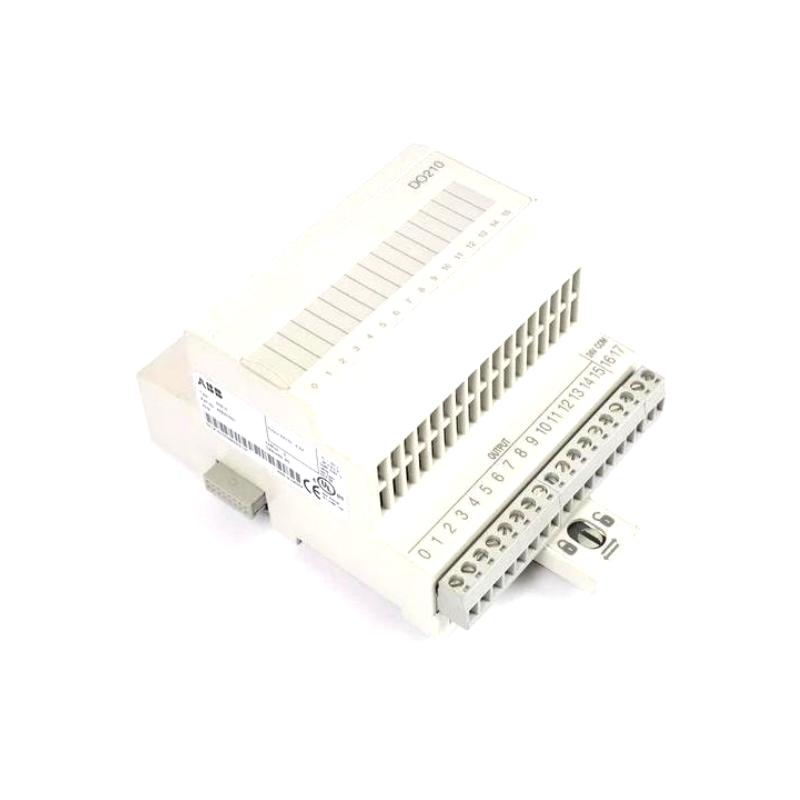

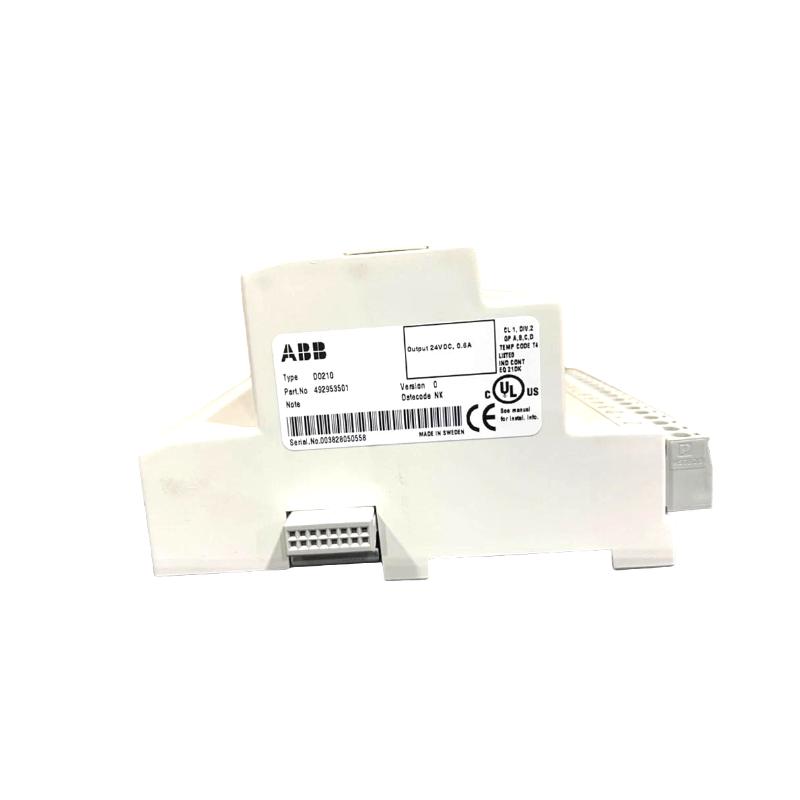

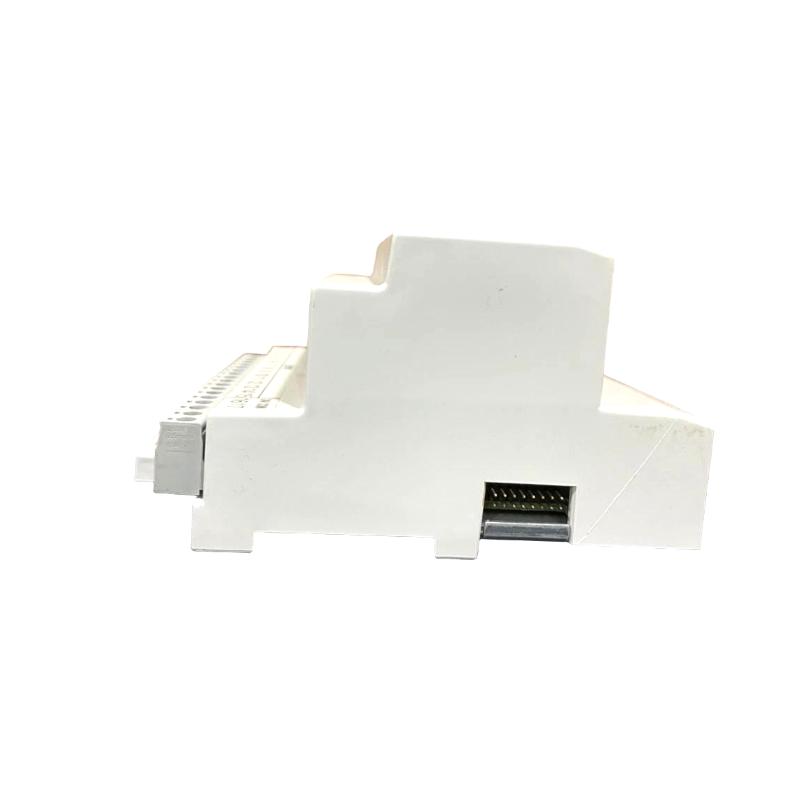

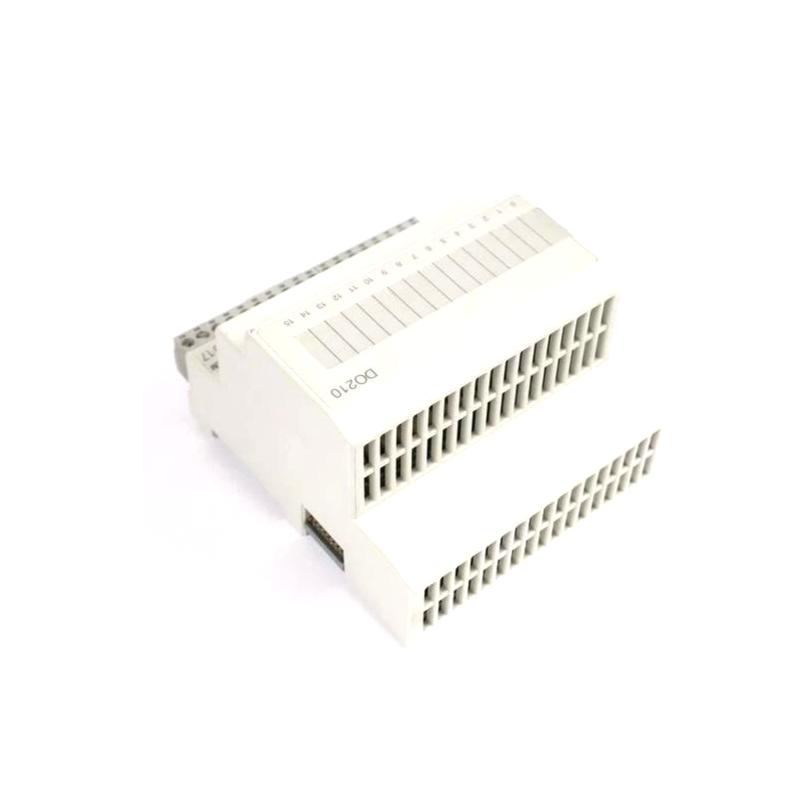

The ABB DO210 is a precision-engineered digital output module designed to deliver dependable switching control in industrial automation environments. Built for seamless integration with ABB’s 800xA, Freelance, and AC500 control platforms, the DO210 translates logic decisions into crisp, reliable output actions that control actuators, relays, solenoids, and other field devices. Combining rugged industrial construction with fast response times and clear status feedback, the DO210 is ideal for applications where reliability, signal integrity, and long service life are critical. Whether deployed in process plants, discrete manufacturing, or infrastructure systems, this module ensures that critical control commands are accurately and consistently executed.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | ABB DO210 |
| Module Type | Digital Output Module |
| Number of Outputs | 8 Discrete Outputs |
| Output Type | Sourcing / Sink Configurable |
| Output Voltage Rating | 24 V DC |
| Maximum Output Current | 0.5 A per channel |
| Isolation | Channel-to-system electrical isolation |
| Protection | Short-circuit and overload protection |
| Response Time | Fast switching for real-time control |
| Mounting Type | DIN Rail / System Carrier |
| Operating Temperature | −20 °C to +60 °C |
| Dimensions (W×H×D) | 120 mm × 140 mm × 60 mm |
| Weight | 0.30 kg |
Recommended Related Models
-
ABB DO220 – Digital output module with higher current capacity for heavier loads.
-
ABB DI210 – Digital input module that complements the DO210 for full discrete I/O solutions.
-
ABB AI210 – Analog input module for mixed signal systems requiring both digital and analog acquisitions.
