Brand:Allen Bradley PLC Item No.:VPL-B1651F-CK12AA Product Origin:USA Product Dimensions:Frame Size: 165 mm Product Weight:15.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

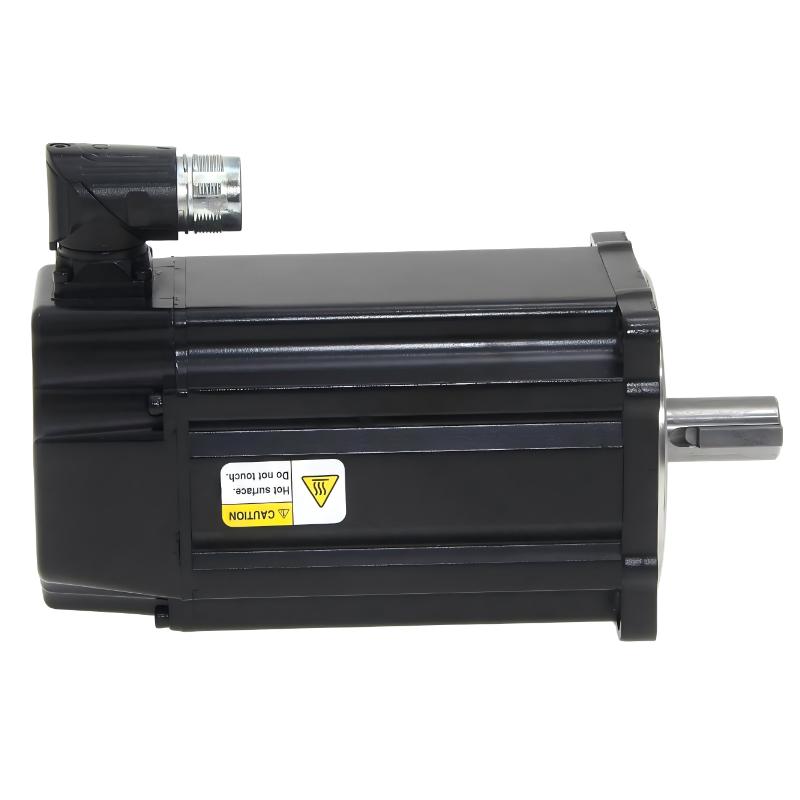

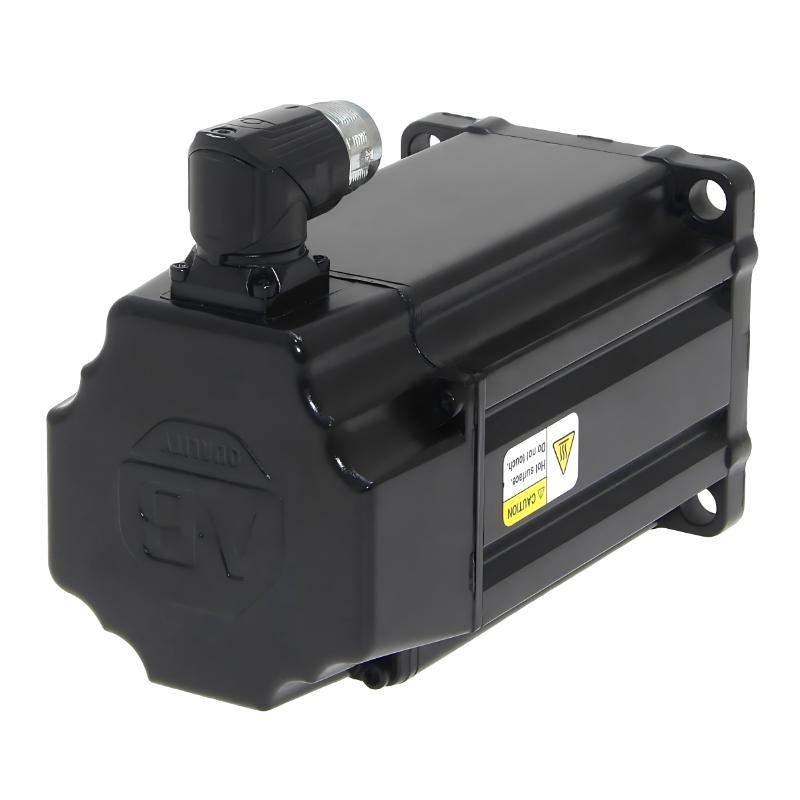

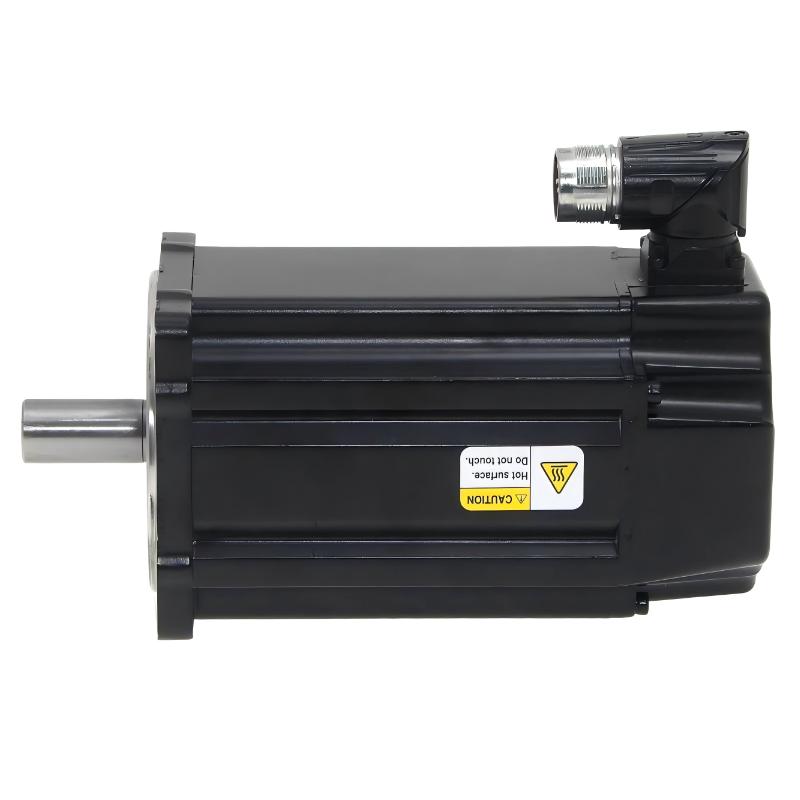

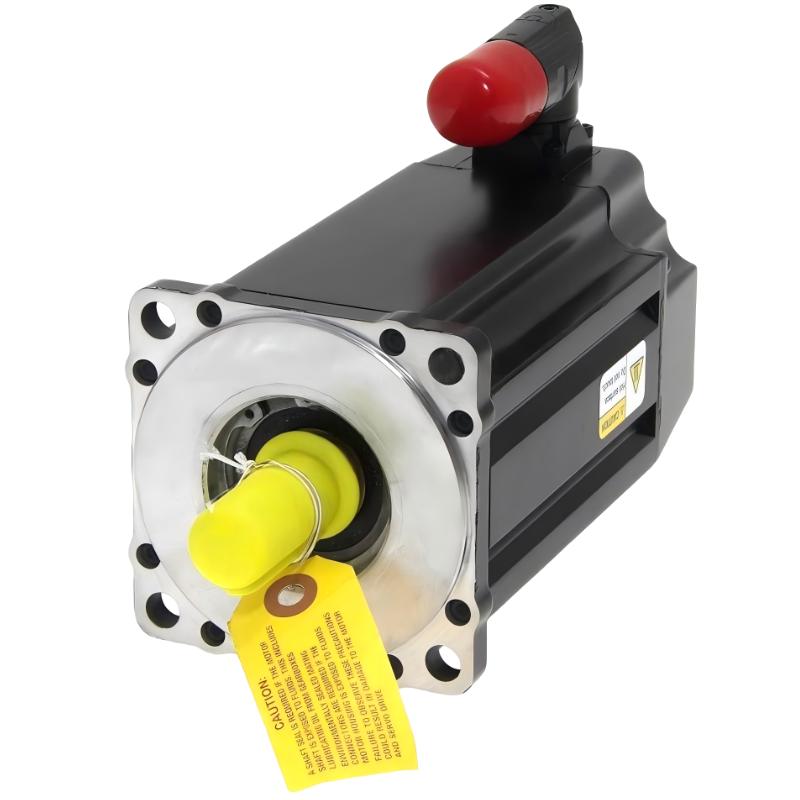

The Allen Bradley VPL-B1651F-CK12AA is a high-performance low-inertia servo motor designed for demanding industrial motion control applications. It delivers strong torque output, precise positioning, and fast dynamic response, making it suitable for large-scale automation systems integrated with Kinetix servo drive platforms.
Technical Specifications
Parameter
Specification
Model
VPL-B1651F-CK12AA
Frame Size
165 mm
Motor Type
Low inertia servo motor
Voltage Class
480 V AC
Rated Speed
4500 RPM
Torque
~11.4 Nm (typical series value)
Encoder
18-bit high-resolution digital encoder
Shaft Type
Keyed shaft
Connector Type
SpeedTec DIN right-angle connector
Brake
No holding brake
Mounting
IEC metric flange
Weight
15.3 kg
Recommended Related Models
Model
Product Name
VPL-B1651F-CJ12AA
Kinetix VP Servo Motor 165 mm Frame Variant
VPL-B1652F-CK12AA
Kinetix VP Higher Torque 165 mm Servo Motor
VPL-B1303F-CJ12AA
Kinetix VP Servo Motor 130 mm Frame
VPL-B1153F-CJ12AA
Kinetix VP Servo Motor 115 mm Frame
Popular Related Models
Model
Product Name
2198-S086-ERS
Kinetix 5700 Servo Drive Module
2198-D020-ERS
Kinetix 5700 Dual Axis Servo Drive
2198-P208
Kinetix 5700 DC Bus Power Supply
1756-L81E
ControlLogix 5580 Controller Module
Applications
• High-torque servo motion control for packaging, assembly, and industrial automation lines
• Robotics systems requiring stable medium-to-high inertia servo performance
• CNC auxiliary axes and precision multi-axis motion systems
• Conveyor synchronization and heavy-duty material handling equipment
• Semiconductor and electronics manufacturing automation platforms
• Automotive production lines with high-speed positioning requirements
• OEM machinery requiring large frame servo integration and reliability
• Continuous industrial processing systems with demanding duty cycles
Key Advantages
• 165 mm frame size delivers high torque output for demanding motion applications
• Low-inertia rotor design ensures fast dynamic response and smooth acceleration
• High-resolution 18-bit encoder provides precise positioning and velocity control
• Optimized for Kinetix servo drive systems for seamless system integration
• Robust industrial construction supports harsh environment operation
• Stable torque performance under heavy and variable load conditions
• Efficient thermal design improves reliability in continuous-duty operation
• Flexible mechanical integration with IEC-standard mounting system
Technical FAQs
Q1: Is this motor compatible with Kinetix servo drives?
Yes, it is fully designed for Allen-Bradley Kinetix motion platforms.
Q2: What type of applications is it best suited for?
It is ideal for high-torque, high-precision industrial motion control systems.
Q3: Does it support high-speed operation?
Yes, it supports up to approximately 4500 RPM depending on drive configuration.
Q4: What feedback system does it use?
It uses a high-resolution 18-bit digital encoder for precise control.
Q5: Is it suitable for heavy-duty industrial environments?
Yes, it is designed for continuous industrial operation under demanding loads.
Q6: Can it be used in robotics systems?
Yes, it is commonly used in robotic and automated handling systems.
Q7: Does it require special maintenance?
No, only standard industrial servo motor maintenance is required.
Q8: What improves its motion accuracy?
High-resolution encoder feedback and optimized servo tuning enhance precision.
Q9: Is it suitable for OEM machine design?
Yes, it is widely used in OEM automation equipment.
Q10: Does it support continuous duty operation?
Yes, it is designed for S1 continuous industrial duty cycles.
