Brand:Epro PLC Item No.:PR6424/102-021 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

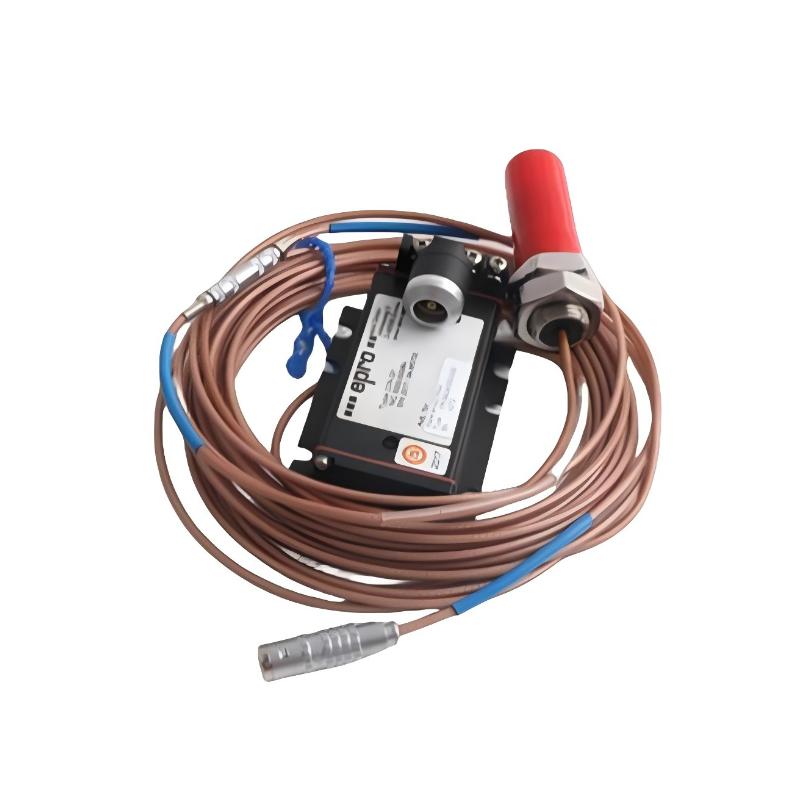

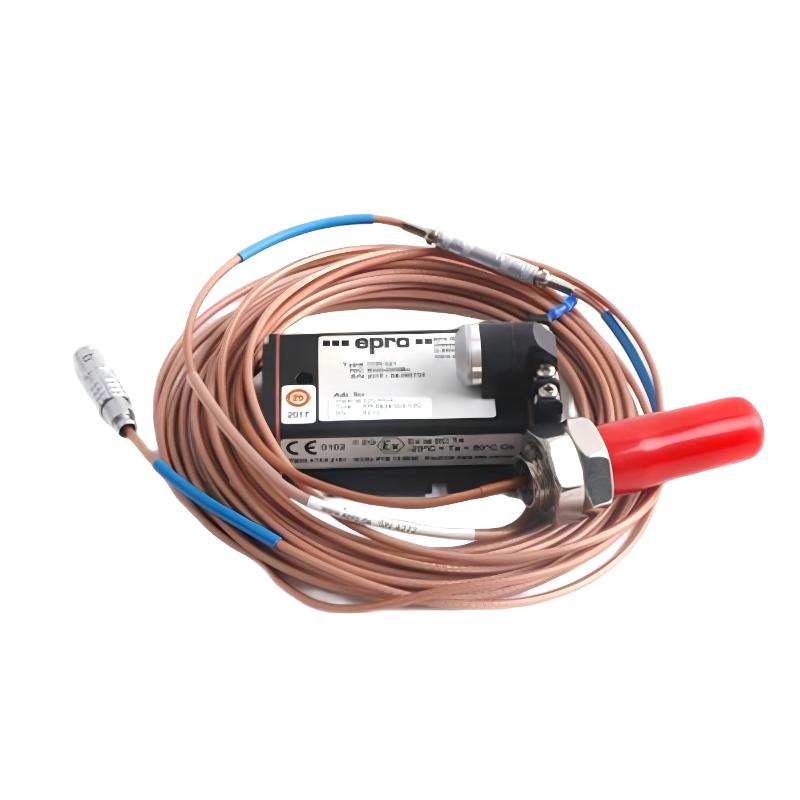

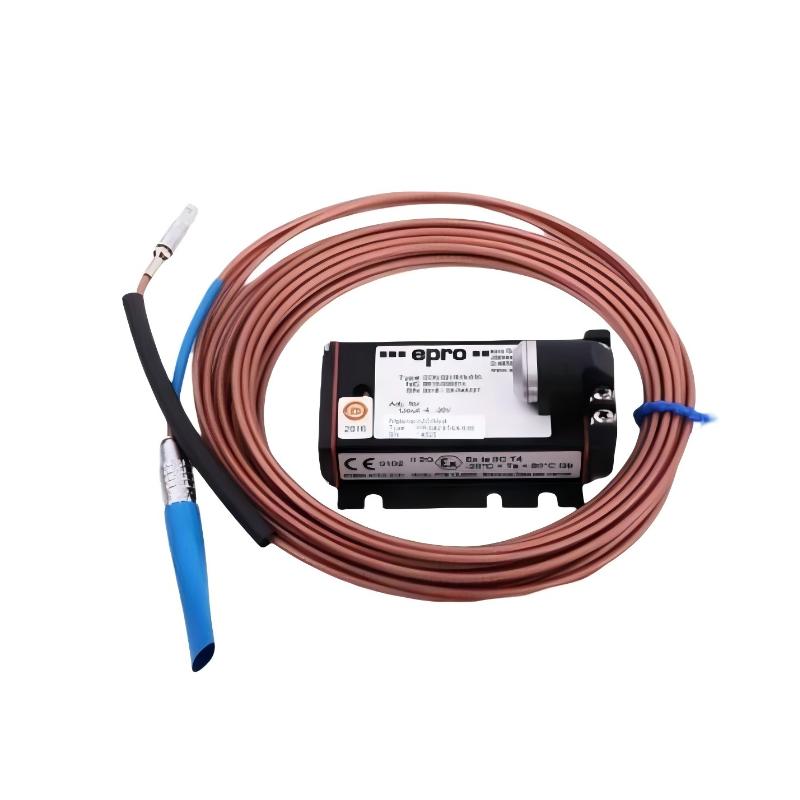

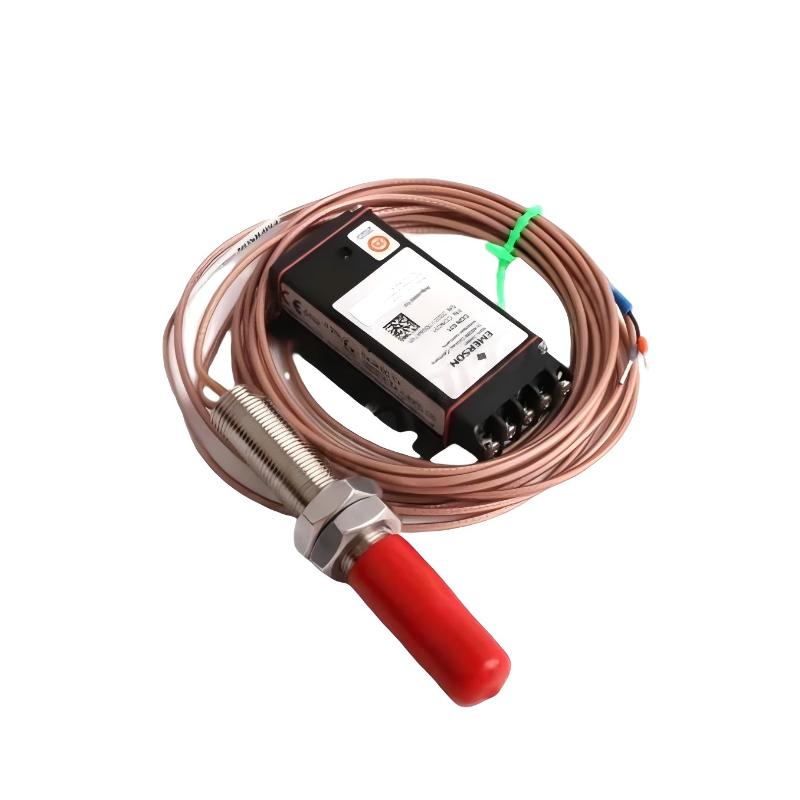

The Epro PR6424/102-021 is a 16mm eddy current proximity sensor developed for precise, non-contact monitoring of rotating machinery dynamics.
It plays an important role in condition monitoring systems by providing continuous real-time shaft displacement data, enabling early fault detection and improving operational safety and reliability in critical industrial environments.
Technical Specifications
Parameter
Specification
Product Type
Eddy Current Proximity Sensor
Series
Epro PR6424
Model
PR6424/102-021
Sensor Head Diameter
16 mm
Measurement Principle
Eddy current (non-contact)
Sensitivity
4 V/mm
Linearity
±1.5%
Static Measurement Range
±2.0 mm
Dynamic Range
0 to 1000 µm
Nominal Air Gap
~2.7 mm
Operating Temperature
-35 to 180°C
Target Material
Ferromagnetic steel
Minimum Shaft Diameter
≥80 mm
Weight
0.2 kg (0.44 lb)
Applications
The Epro PR6424/102-021 is used in high-reliability machinery monitoring architectures where precise shaft displacement data is essential for operational safety and predictive maintenance.
It is commonly deployed in steam turbines, gas turbines, hydro turbines, centrifugal compressors, pumps, and large rotating industrial drives. Within turbine systems, it provides continuous radial vibration and axial position monitoring. In compressor and pump applications, it supports early identification of mechanical degradation such as rotor instability, misalignment, imbalance, and bearing wear.
It is also widely integrated into API 670-compliant protection systems, where uninterrupted real-time vibration measurement is required to safeguard critical rotating assets across power generation, oil and gas, and petrochemical industries.
Advantages
This sensor is designed to deliver high measurement accuracy and long-term operational stability in harsh industrial environments.
It uses eddy current technology to achieve non-contact displacement sensing with excellent linear response, ensuring reliable tracking of shaft movement even at high rotational speeds. The 16mm probe geometry provides a stable electromagnetic field profile, supporting consistent measurement performance across varying shaft conditions.
The construction is optimized for resistance to temperature fluctuation, vibration stress, and electromagnetic interference. Its low drift characteristics contribute to extended calibration stability, reducing maintenance frequency and improving overall system uptime in continuous monitoring applications.
Technical FAQs
Q1: What measurement principle does this sensor use?
It operates using eddy current induction for non-contact displacement measurement.
Q2: What is the primary function of this model?
It measures shaft vibration, axial displacement, and eccentricity in rotating machinery.
Q3: Can it be used in turbine systems?
Yes, it is widely applied in steam, gas, and hydro turbine monitoring systems.
Q4: Does it require physical contact with the shaft?
No, it performs measurement without physical contact.
Q5: What output signal does it provide?
It works with a compatible signal converter to generate a proportional analog voltage signal.
Q6: Can it measure both static and dynamic behavior?
Yes, it supports both steady-state position and dynamic vibration measurement.
Q7: Is it suitable for high-speed machinery?
Yes, it is designed for turbomachinery and other high-RPM equipment.
Q8: How does it perform in harsh environments?
It is resistant to vibration, temperature variation, and electromagnetic interference.
Q9: Does it require frequent calibration?
No, it is engineered for long-term stability with minimal signal drift.
Q10: What industries commonly use it?
Power generation, oil and gas, petrochemical, and heavy industrial sectors.
