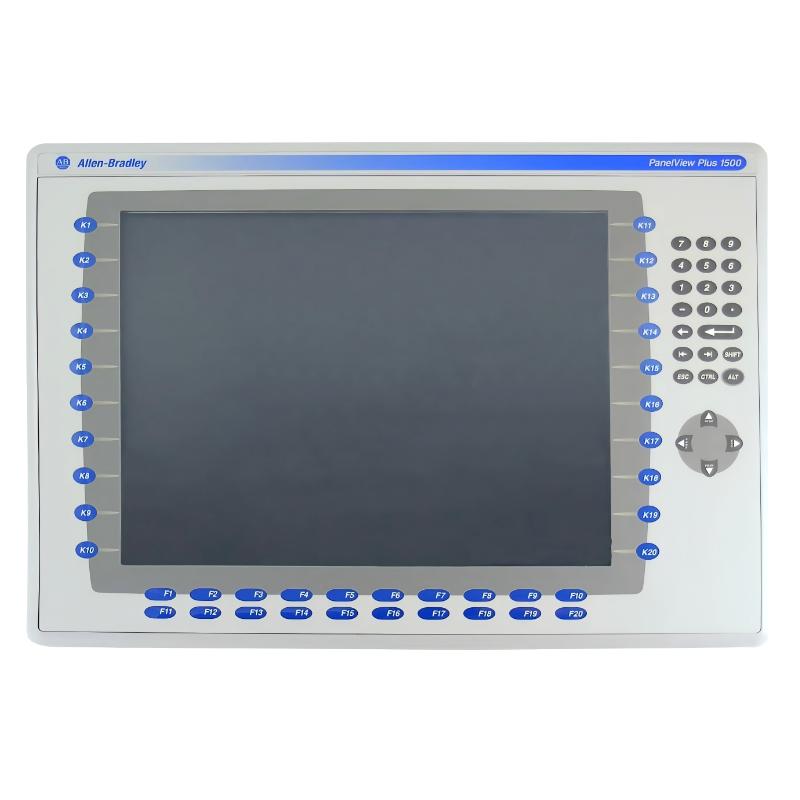

Allen Bradley 2711P-RDB15C PanelView Plus 1500 Display Module
Allen Bradley 2711P-RDB15C PanelView Plus 1500 Display Module
0.0
Points
Brand:Allen Bradley PLC Item No.:2711P-RDB15C Product Origin:USA Product Dimensions:469 x 65 x 330 mm Product Weight:4.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The 2711P-RDB15C PanelView Plus Display Module is a key component within Allen-Bradley’s modular HMI platform, designed to deliver reliable and high-quality visual interface performance. It enables operators to monitor and interact with industrial processes efficiently, supporting stable system operation in demanding automation environments.
Technical Specifications
Parameter
Specification
Product Model
Allen-Bradley 2711P-RDB15C PanelView Plus Display Module
Display Type
15-inch Color TFT LCD
Resolution
1024 × 768
Display Area
304 × 228 mm
Brightness
~300 cd/m²
Interface Type
PanelView Plus modular system
Operating Environment
Industrial automation systems
Dimensions (W × H × D)
469 × 65 × 330 mm
Weight
4.6 kg / 10.14 lb
Construction
Industrial-grade HMI display assembly
Applications
The Allen-Bradley 2711P-RDB15C PanelView Plus Display Module is engineered for industrial human-machine interface systems requiring reliable visualization and operator interaction. It is commonly deployed in ControlLogix-based architectures where clear process monitoring and stable graphical display performance are essential.
This module is widely used in manufacturing execution systems, packaging lines, automotive production control, and process automation environments where operators need real-time system visibility and intuitive control interfaces.
Advantages
High-resolution 15-inch color display for clear industrial visualization
Designed for PanelView Plus modular HMI systems
Supports stable operator interaction in continuous production environments
Robust industrial-grade construction for long service life
Compatible with multiple PanelView Plus system architectures
Optimized brightness for factory floor readability
Easy replacement design for reduced downtime maintenance
Technical FAQs
Q1: What type of system is this display module used in?
A: It is used in Allen-Bradley PanelView Plus HMI systems.
Q2: Is this a complete HMI terminal?
A: No, it is a display module used as part of a modular PanelView Plus system.
Q3: What display size does it support?
A: It supports a 15-inch industrial color display format.
Q4: Can it be replaced without modifying the system configuration?
A: Yes, it is designed for direct replacement in compatible systems.
Q5: Does it support touchscreen operation?
A: Yes, depending on the PanelView Plus configuration it is paired with.
Q6: Is it suitable for harsh industrial environments?
A: Yes, it is built for industrial-grade operating conditions.
Q7: Does it require calibration after installation?
A: Touch calibration may be required depending on system setup.
Q8: Can it operate in 24/7 production environments?
A: Yes, it is designed for continuous industrial operation.
Q9: Is it compatible with older PanelView Plus systems?
A: It is compatible with supported PanelView Plus 1500 architectures.
Q10: Does it support high-brightness industrial viewing conditions?
A: Yes, it is optimized for factory floor visibility.
