Brand:Allen Bradley PLC Item No.:TLY-A130P-BJ62AA Product Origin:USA Product Dimensions:Frame Size: 46 mm Product Weight:1.81 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

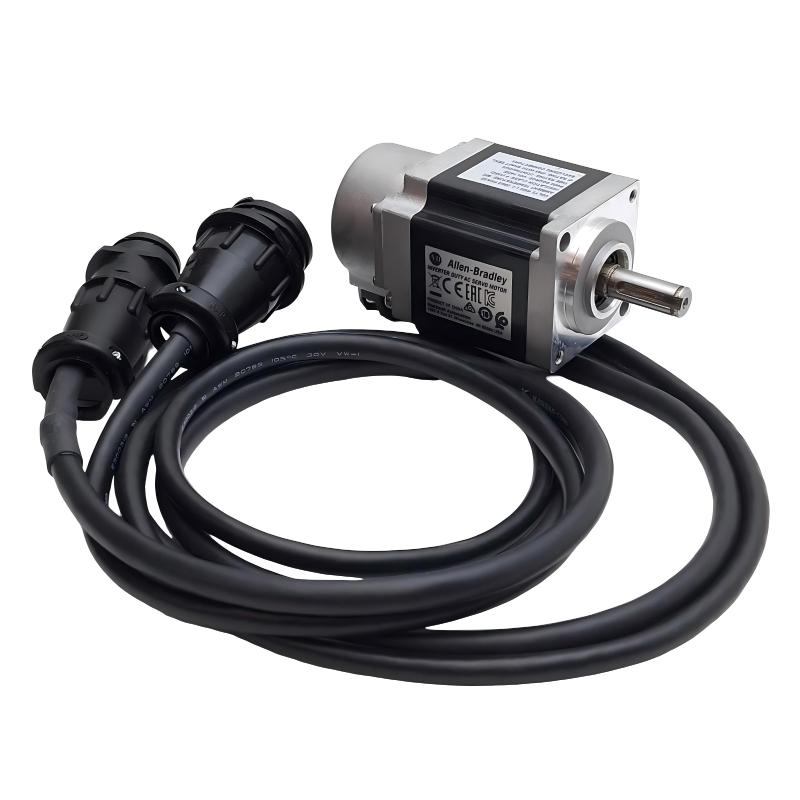

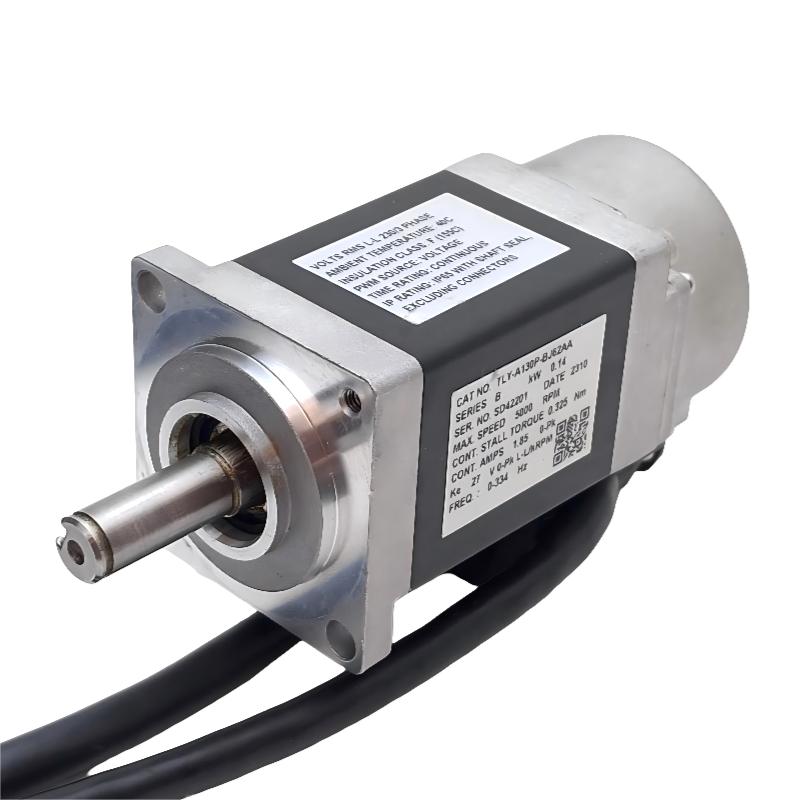

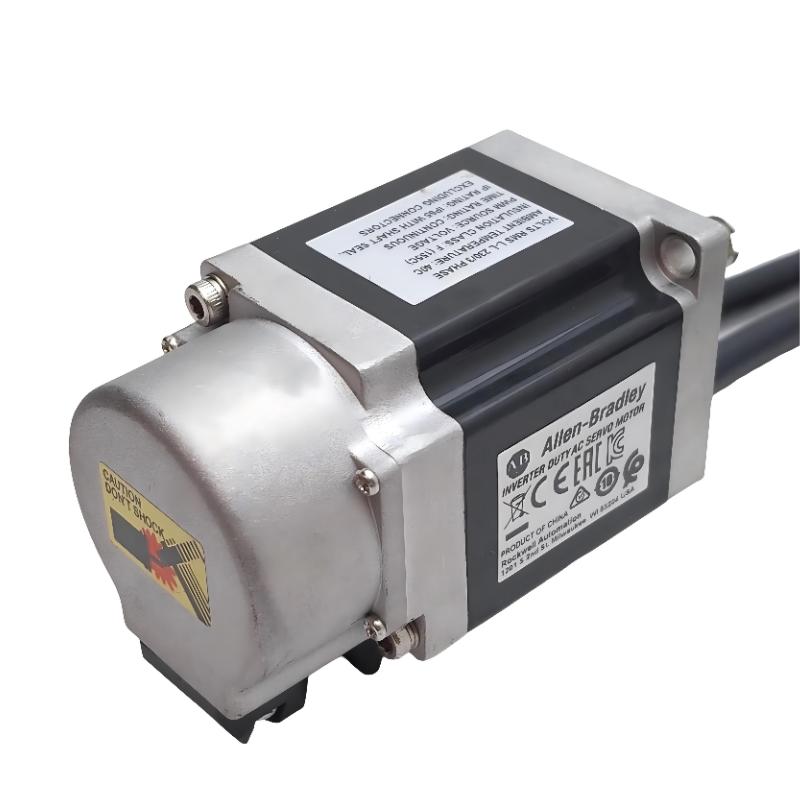

The TLY-A130P-BJ62AA Servo Motor is a compact, high-performance motion control solution engineered for demanding industrial automation tasks. With its 46 mm frame size and integrated high-resolution encoder, it delivers precise motion control while maintaining a small footprint suitable for modern machine design constraints.
Technical Specifications
Parameter
Specification
Product Model
Allen-Bradley TLY-A130P-BJ62AA Servo Motor
Frame Size
46 mm
Rated Speed
5000 rpm
Rated Torque
0.32 Nm
Rated Voltage
230 V AC
Motor Type
Rotary synchronous servo motor
Encoder Type
Absolute, battery-backed multi-turn
Protection Rating
IP65
Connector Type

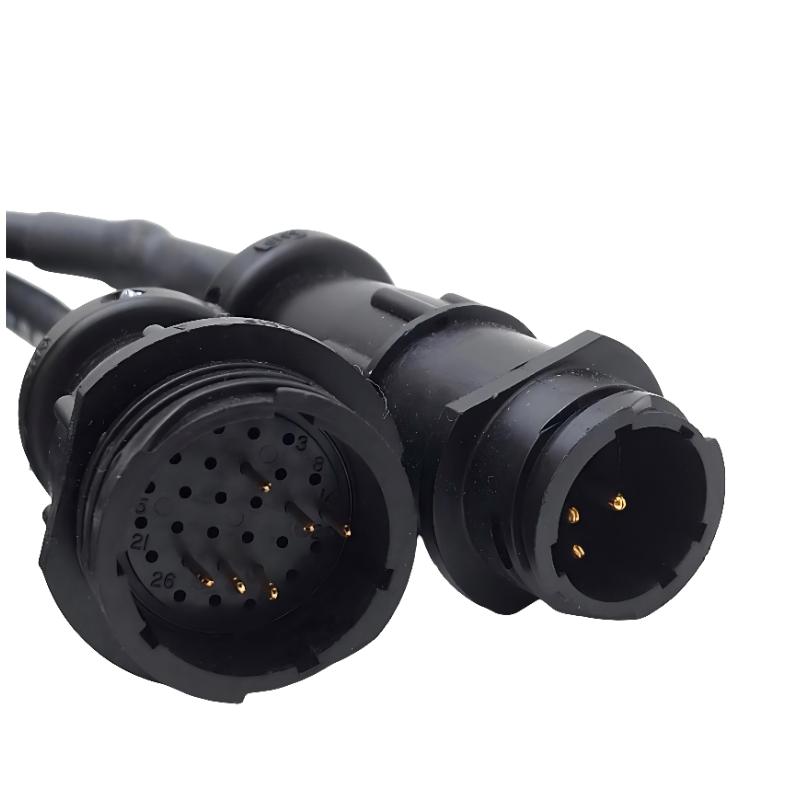

Circular connector cables (1 m)
Operating Temperature
0°C – 40°C
Dimensions (W × H × D)
46 × 46 × 76.2 mm
Weight
1.81 kg / 3.99 lb
Applications
The Allen-Bradley TLY-A130P-BJ62AA Servo Motor is designed for precision motion control systems requiring compact size, high responsiveness, and stable torque performance. It is widely used in servo-driven automation environments where accurate positioning and smooth dynamic response are critical.
Typical applications include CNC machinery, robotics systems, packaging automation, semiconductor handling equipment, and high-speed assembly lines where space-saving motor design and precise feedback control are essential.
Advantages
Compact 46 mm frame size for space-efficient machine design
High-speed operation up to 5000 rpm for dynamic motion performance
Integrated absolute encoder for accurate positioning feedback
IP65-rated housing for reliable industrial environment protection
Smooth torque output for precision motion applications
Battery-backed multi-turn feedback capability
Optimized for Allen-Bradley Kinetix servo drive systems
Technical FAQs
Q1: What type of motor is this?
A: It is a TL-Series rotary synchronous servo motor.
Q2: Is it suitable for precision positioning?
A: Yes, it uses an absolute encoder for high-precision feedback control.
Q3: What drive systems is it compatible with?
A: It is designed for Allen-Bradley Kinetix servo drive platforms.
Q4: Does it require a homing routine?
A: No, the absolute encoder eliminates the need for homing after startup.
Q5: What protection level does it have?
A: It has an IP65-rated industrial enclosure.
Q6: Can it be used in high-speed applications?
A: Yes, it supports operation up to 5000 rpm.
Q7: Does it include a brake?
A: No, this variant does not include a holding brake.
Q8: Is it suitable for continuous operation?
A: Yes, it is designed for industrial continuous-duty environments.
Q9: What feedback system does it use?
A: It uses a battery-backed multi-turn absolute encoder.
Q10: Can it be used in retrofit systems?
A: Yes, it is commonly used in replacement and upgrade servo applications.
