Brand:Allen Bradley PLC Item No.:VPL-B1002M-PJ12AA Product Origin:USA Product Dimensions:Frame Size: 100 mm Product Weight:3.56 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

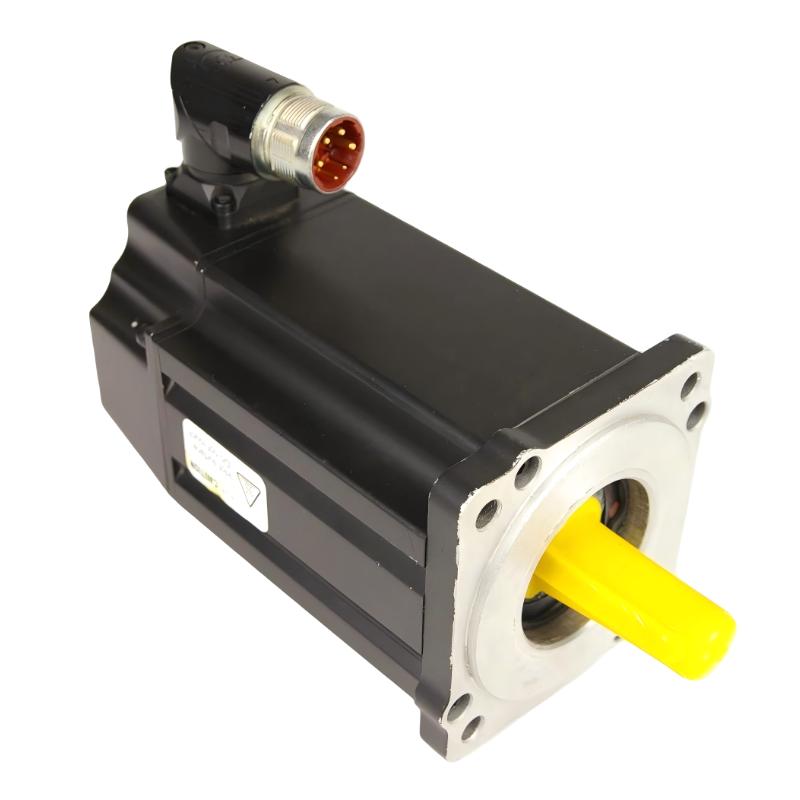

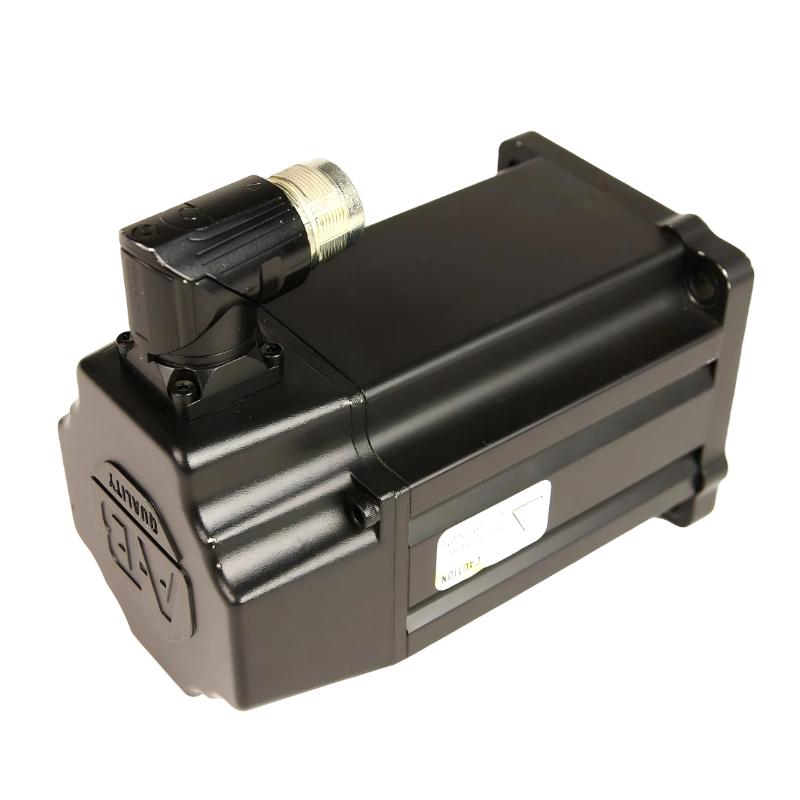

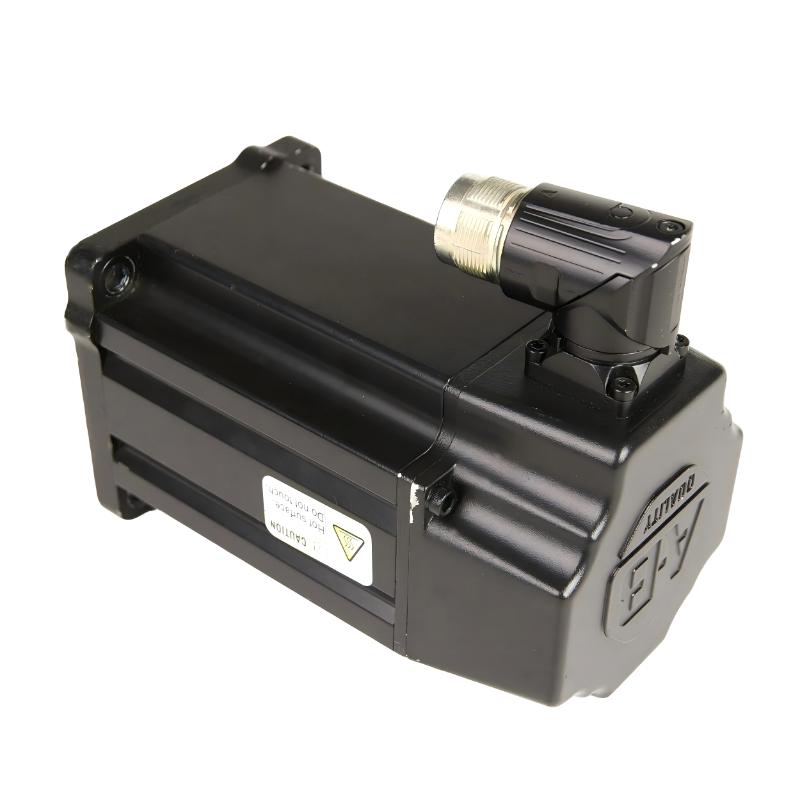

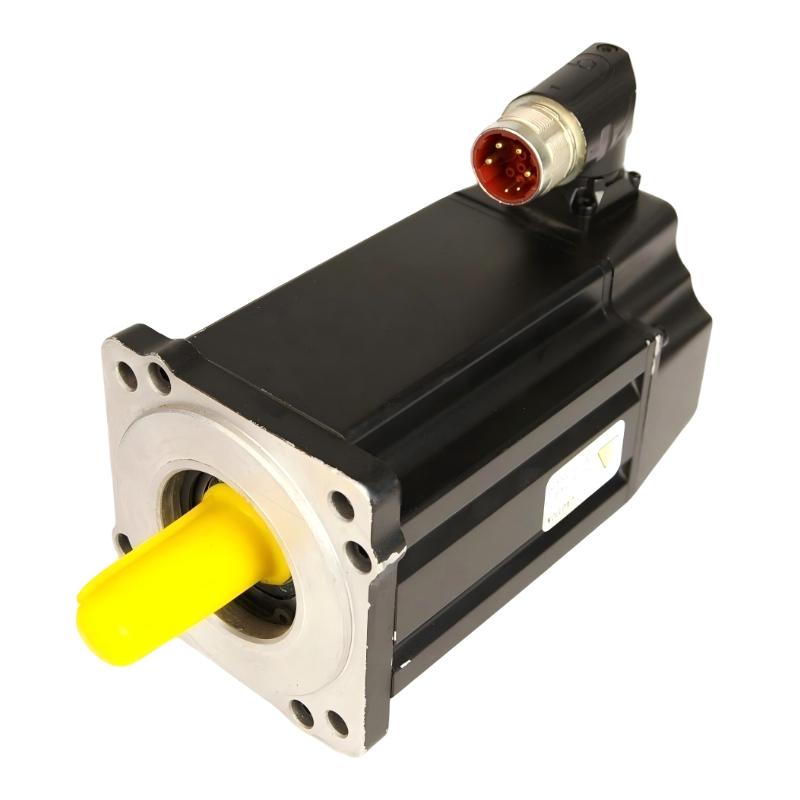

The VPL-B1002M-PJ12AA Servo Motor is part of the Kinetix VP low-inertia motor family, engineered to deliver high-performance motion control in compact industrial automation systems. It combines precision feedback technology with a lightweight rotor structure to ensure fast response, stable torque delivery, and consistent positioning accuracy in demanding production environments.
Technical Specifications
Parameter
Specification
Product Model
Allen-Bradley VPL-B1002M-PJ12AA Servo Motor
Frame Size
100 mm
Rated Voltage
480 V AC
Rated Speed
6000 rpm
Motor Type
Low-inertia rotary servo motor
Feedback System
18-bit single-turn + multi-turn absolute encoder
Shaft Type
Keyed shaft
Connector Type
SpeedTec DIN connector
Brake
No holding brake
IP Rating
IP66
Operating Temperature
0°C – 40°C
Dimensions (W × H × D)
244 × 201 × 300 mm
Weight
3.56 kg / 7.85 lb
Applications
The Allen-Bradley VPL-B1002M-PJ12AA Servo Motor is a low-inertia rotary servo motor designed for high-dynamic motion control systems requiring fast acceleration, precise positioning, and smooth torque response. It is widely used in advanced industrial automation environments where high-speed synchronization and accurate motion control are critical.
Typical applications include robotics systems, CNC machining centers, packaging automation, semiconductor manufacturing equipment, and high-speed assembly lines where compact 100 mm frame servo motors are preferred for performance-driven designs.
Advantages
Low-inertia rotor design for fast acceleration and deceleration
High-precision feedback system with multi-turn absolute encoder
Optimized for high-speed motion control up to industrial-grade RPM levels
Compact 100 mm frame size suitable for dense machine layouts
Integrated digital feedback for improved positioning accuracy
Designed for seamless operation with Kinetix servo drive systems
High durability for continuous industrial operation environments
Technical FAQs
Q1: What type of servo system is this motor designed for?
A: It is designed for Allen-Bradley Kinetix servo drive systems.
Q2: Does it support absolute positioning?
A: Yes, it uses a high-resolution multi-turn absolute encoder.
Q3: What is the frame size of this motor?
A: It has a 100 mm frame size.
Q4: Is this motor suitable for high-speed applications?
A: Yes, it is optimized for high dynamic and high-speed motion systems.
Q5: Does it include a holding brake?
A: No, this model does not include a holding brake.
Q6: What type of feedback system is used?
A: It uses an 18-bit single-turn and multi-turn digital encoder system.
Q7: Can it be used in CNC machines?
A: Yes, it is commonly used in CNC and precision machining applications.
Q8: Is it suitable for continuous duty operation?
A: Yes, it is designed for continuous industrial duty cycles.
Q9: What communication method does it use with drives?
A: It uses digital servo feedback communication via Kinetix-compatible systems.
Q10: Can it be used in retrofit projects?
A: Yes, it is frequently used in upgrades of existing servo systems.
