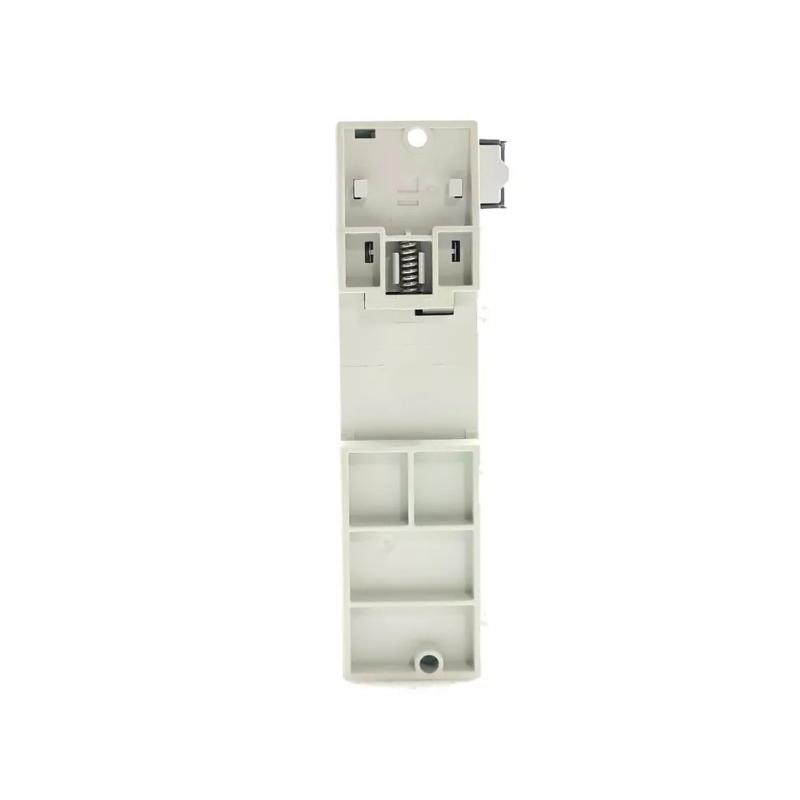

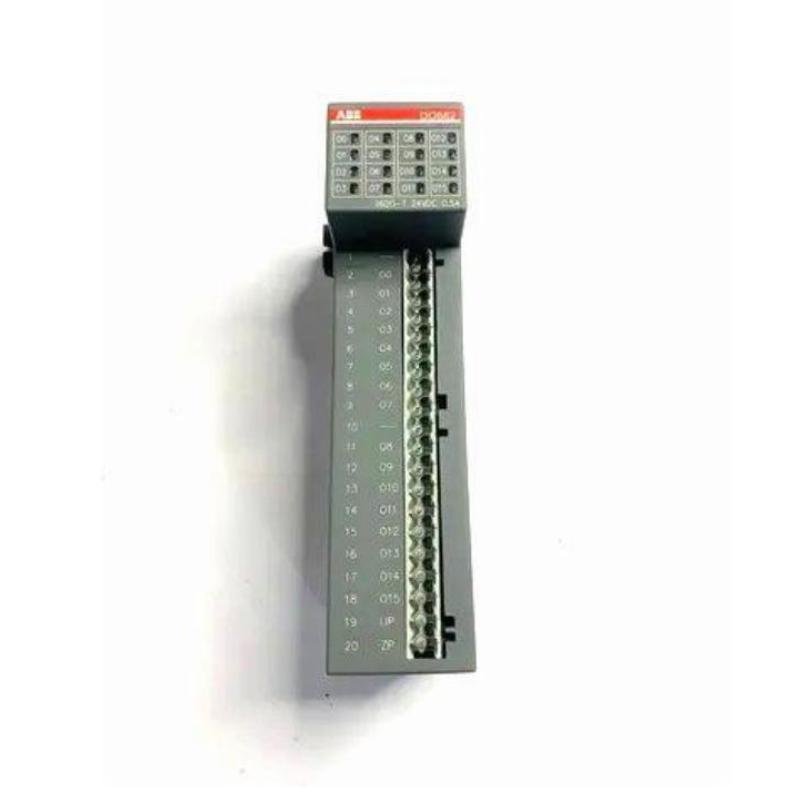

The ABB DO562 is a high‑density digital output module designed for precise and reliable control of discrete field devices in industrial automation systems. Engineered to seamlessly integrate with ABB PLC platforms, this module provides 16 transistor outputs capable of driving solenoids, relays, and indicators with high accuracy and rapid response. Its compact footprint, robust construction, and clear status indicators make the DO562 an ideal choice for process plants, manufacturing lines, and machine automation systems where uptime, performance, and flexibility are critical.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | ABB DO562 |
| Module Type | Digital Output Module |
| Number of Outputs | 16 Discrete Outputs |
| Output Voltage | 24 V DC |
| Output Type | Transistor / Sourcing |
| Maximum Output Current | 0.5 A per channel |
| Isolation | Galvanic isolation between output groups |
| Status Indicators | LEDs per output channel |
| Supply Voltage Range | 20.4–28.8 V DC |
| Mounting Type | DIN Rail / System Carrier |
| Operating Temperature Range | −20 °C to +60 °C |
| Dimensions (W×H×D) | 34 mm × 135 mm × 75 mm |
| Weight | 0.15 kg |
