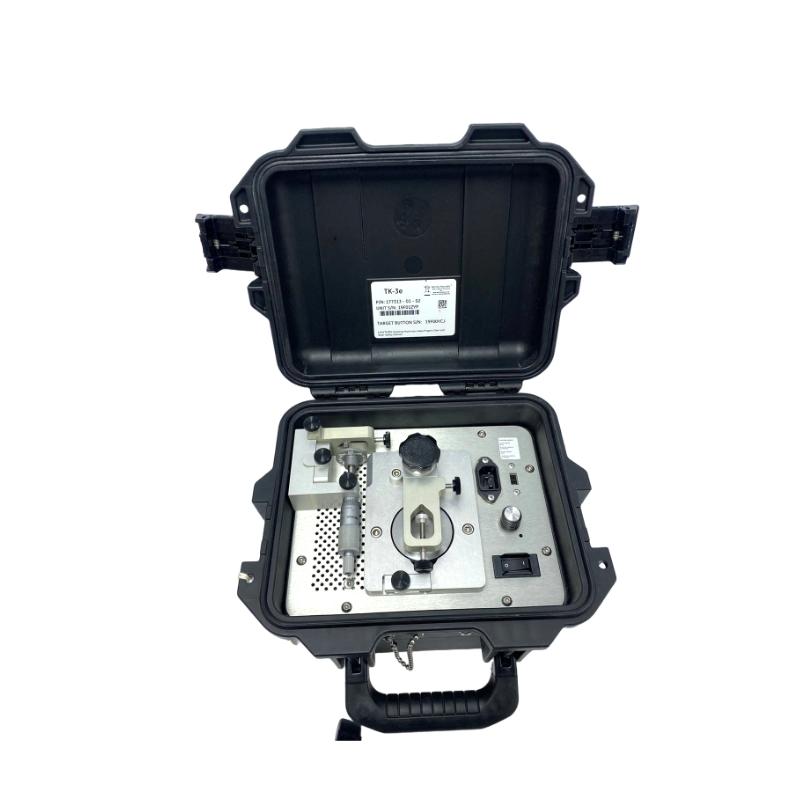

Bently Nevada TK-3E 177313-02-02 TK3 Proximity System Test Kit
Bently Nevada TK-3E 177313-02-02 TK3 Proximity System Test Kit
0.0
Points
Brand:Bently Nevada PLC Item No.:TK-3E Product Origin:USA Product Dimensions:195 × 299 × 248 mm Product Weight:5.22 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Bently Nevada TK-3E 177313-02-02 TK3 Proximity System Test Kit is a portable calibration and diagnostic tool designed for validating proximity-based vibration and position monitoring systems. It simulates controlled shaft movement to verify sensor and monitor accuracy across the full measurement chain. Widely used in industrial maintenance and commissioning, it ensures reliable performance of critical machinery protection systems in demanding environments.
Technical Specifications
Parameter
Specification
Model
177313-02-02 (TK-3E)
Product Type
Proximity System Test Kit
Function
Simulation of vibration and position signals
Application
Calibration and verification of monitoring systems
Compatibility
Bently Nevada proximity systems
Test Capability
Static and dynamic system testing
Dimensions
195 × 299 × 248 mm
Weight
5.22 kg
Recommended Related Models
Model
Product Name
330730-080-00-00
Proximity Probe
330780-90-00
Extension Cable Assembly
3500/40M
Proximitor Monitor Module
3500/42M
Vibration Monitoring Module
Popular Related Models
Model
Product Name
3500/15
Power Supply Module
3500/05
Rack Interface Module
3500/92
Communication Gateway Module
3300 XL 8mm System
Proximity Measurement System
Applications
• Calibration and verification of Bently Nevada proximity transducer systems in rotating machinery
• Simulation of shaft vibration and position signals for condition monitoring validation
• Field testing of proximity probes, extension cables, and Proximitor sensor modules
• Commissioning and maintenance of turbines, compressors, and generators
• Diagnostic verification in oil and gas machinery protection systems
• Power generation vibration monitoring system setup and functional checks
• Training and validation of machinery condition monitoring technicians
• Predictive maintenance and system performance verification in industrial plants
Key Advantages
• Provides precise simulation of shaft vibration and displacement for system calibration
• Enables full loop verification of probe, cable, and monitor performance
• Portable design supports efficient on-site testing and commissioning
• Improves diagnostic confidence by validating system response under controlled conditions
• Supports both static and dynamic testing of proximity measurement systems
• Rugged industrial construction ensures reliable field operation
• Reduces downtime by enabling fast troubleshooting and system verification
• Fully compatible with Bently Nevada machinery protection systems
Technical FAQs
Q1: What is the main function of the TK-3E test kit?
It simulates shaft vibration and position to test and calibrate proximity monitoring systems.
Q2: What systems does it work with?
It is used with Bently Nevada machinery protection and condition monitoring systems.
Q3: Does it test the full measurement chain?
Yes, it verifies probe, extension cable, and monitor as an integrated system.
Q4: Is it suitable for field use?
Yes, it is designed for portable on-site calibration and testing.
Q5: What does it simulate?
It simulates controlled mechanical vibration and displacement signals.
Q6: Can it be used for training?
Yes, it is commonly used for technician training and system validation.
Q7: Does it require complex setup?
No, it is designed for straightforward mechanical operation and setup.
Q8: Is it used in predictive maintenance?
Yes, it supports condition monitoring system verification.
Q9: Does it improve system reliability?
Yes, it helps ensure measurement accuracy and system confidence.
Q10: What industries use it?
Power generation, oil and gas, petrochemical, and heavy industrial sectors.
