Brand:Epro PLC Item No.:PR6424/103-100 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

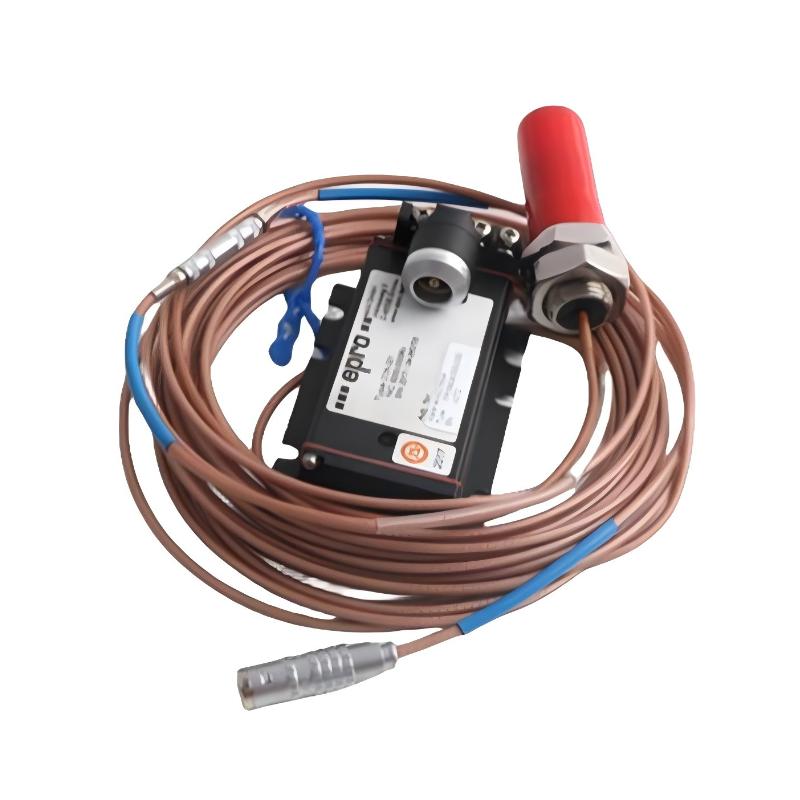

The Epro PR6424/103-100 16 mm Eddy Current Sensor is a precision industrial probe designed for reliable monitoring of critical rotating machinery. It delivers stable, high-resolution displacement signals that support predictive maintenance strategies and enhance equipment safety and operational efficiency.
Technical Specifications
Parameter
Specification
Product Model
Epro PR6424/103-100
Sensor Type
Eddy Current Proximity Sensor
Probe Diameter
16 mm
Measurement Principle
Non-contact eddy current
Measurement Range
±2.0 mm (typical system dependent)
Linear Output
4 V/mm (with compatible converter)
Target Material
Conductive ferromagnetic steel
Operating Temperature
-35°C to +180°C
Cable Length
Typically 4–10 m (system dependent)
Protection Rating
IP65 / IP67 (depending on configuration)
Weight
0.2 kg / 0.44 lb
Applications
The Epro PR6424/103-100 16 mm Eddy Current Sensor is a high-precision non-contact displacement probe used in turbomachinery condition monitoring systems. It is commonly applied in environments where accurate measurement of shaft vibration, axial position, and eccentricity is critical for equipment protection and predictive maintenance.
Typical applications include steam turbines, gas turbines, hydro turbines, compressors, pumps, and industrial fans where continuous monitoring of rotating machinery health is required.
Advantages
High-resolution eddy current sensing for precise displacement and vibration monitoring
16 mm probe head optimized for compact installation in tight machinery layouts
Non-contact measurement reduces mechanical wear and improves long-term stability
Excellent performance under high temperature and high vibration industrial environments
Compatible with Epro/Emerson CON series signal conditioning systems
Stable linear response ensures reliable data for protection and diagnostics systems
Suitable for API 670-compliant machinery monitoring architectures
Technical FAQs
Q1: What measurement principle does this sensor use?
A: It uses eddy current technology to measure displacement without physical contact.
Q2: What is the main purpose of this sensor?
A: It monitors shaft vibration, position, eccentricity, and axial displacement.
Q3: What systems is it compatible with?
A: It works with Epro/Emerson signal converters such as CON011, CON021, and related modules.
Q4: What industries commonly use this sensor?
A: Power generation, oil & gas, petrochemical, and heavy industrial machinery sectors.
Q5: Can it operate in high-temperature environments?
A: Yes, it is designed for harsh environments with elevated temperatures and vibration.
Q6: Is this sensor suitable for turbines?
A: Yes, it is widely used in steam, gas, and hydro turbines.
Q7: Does it require contact with the shaft?
A: No, it is a non-contact sensor.
Q8: What parameters can it measure?
A: Radial displacement, axial position, vibration, and eccentricity.
Q9: Is calibration required?
A: Yes, system-level calibration with the signal converter is required.
Q10: Is it part of a complete monitoring system?
A: Yes, it is used with a driver/converter module as part of a full condition monitoring chain.
