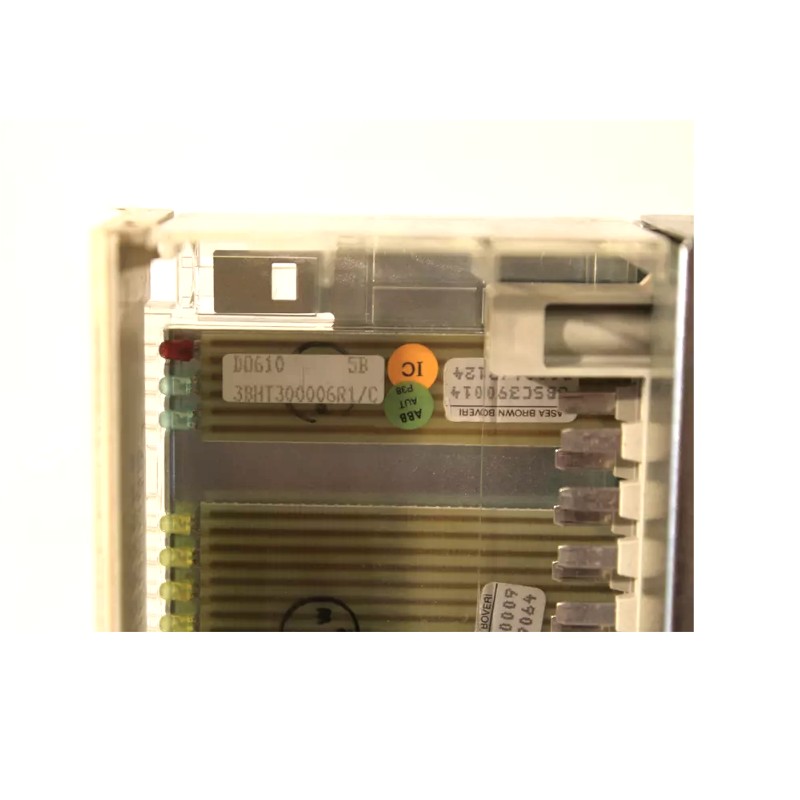

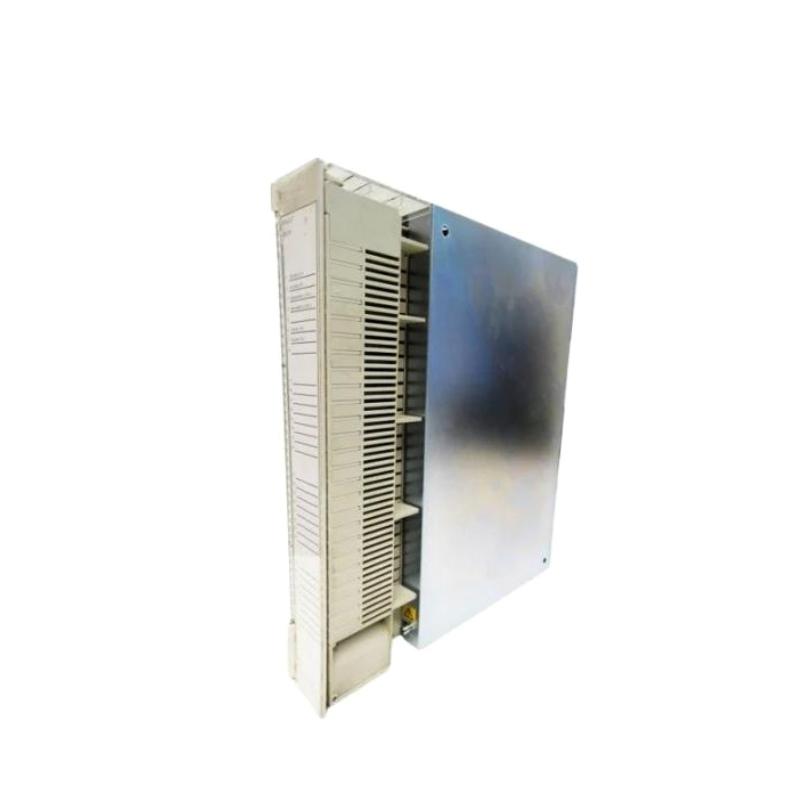

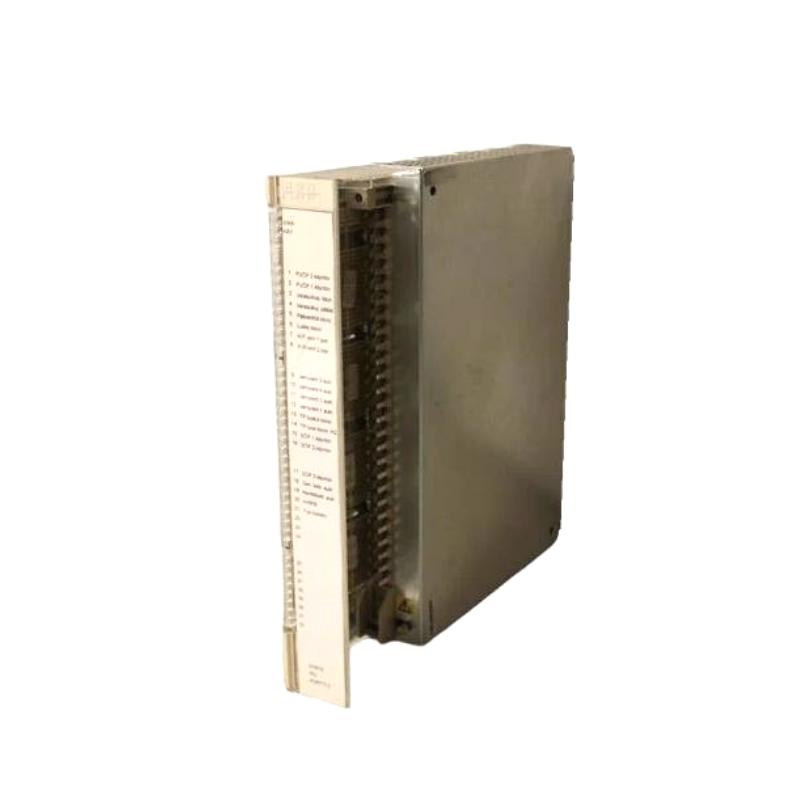

The ABB DO610 is a reliable and high-performance digital output module designed to deliver precise switching control for industrial automation applications. Built for seamless integration with ABB AC500, Freelance, and 800xA platforms, the DO610 allows engineers to manage actuators, relays, solenoids, and indicator devices efficiently. Its combination of fast response, compact design, and robust industrial construction ensures consistent performance in manufacturing, process automation, and building control environments, supporting both high uptime and operational safety.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | ABB DO610 |
| Module Type | Digital Output Module |
| Number of Outputs | 8 Discrete Outputs |
| Output Voltage | 24 V DC |
| Maximum Output Current | 0.5 A per channel |
| Output Type | Transistor / Sourcing |
| Isolation | Galvanic isolation between output groups |
| Status Indicators | LED per channel |
| Mounting Type | DIN Rail / System Carrier |
| Operating Temperature Range | −20 °C to +60 °C |
| Dimensions (W×H×D) | 34 mm × 135 mm × 75 mm |
| Weight | 0.16 kg |
Recommended Related Models
-
ABB DO611 – Similar 8-channel digital output module with enhanced diagnostic features.
-
ABB DI610 – Complementary digital input module for integrated I/O solutions.
-
ABB AO610 – Analog output module for systems requiring both analog and digital signals.
