Brand:Epro PLC Item No.:PR6424/104-100 Product Origin:Germany Product Dimensions:Sensor Head Diameter: 16 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

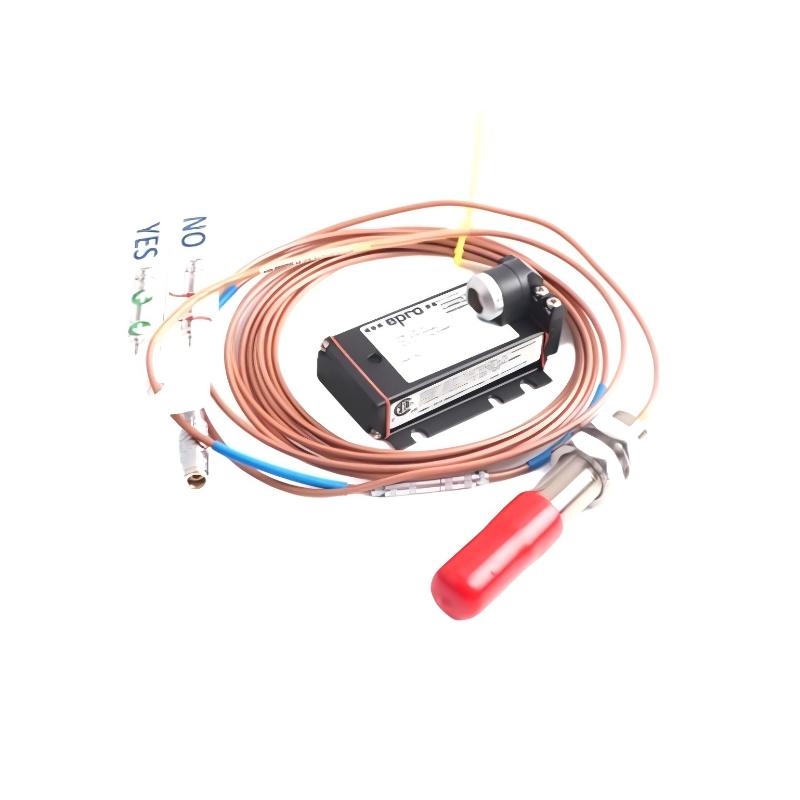

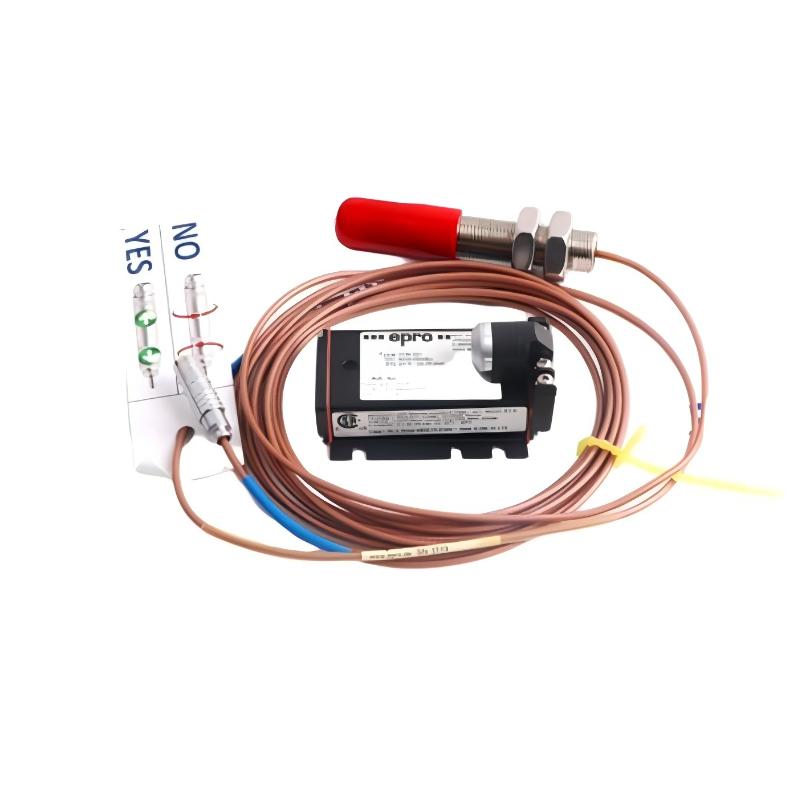

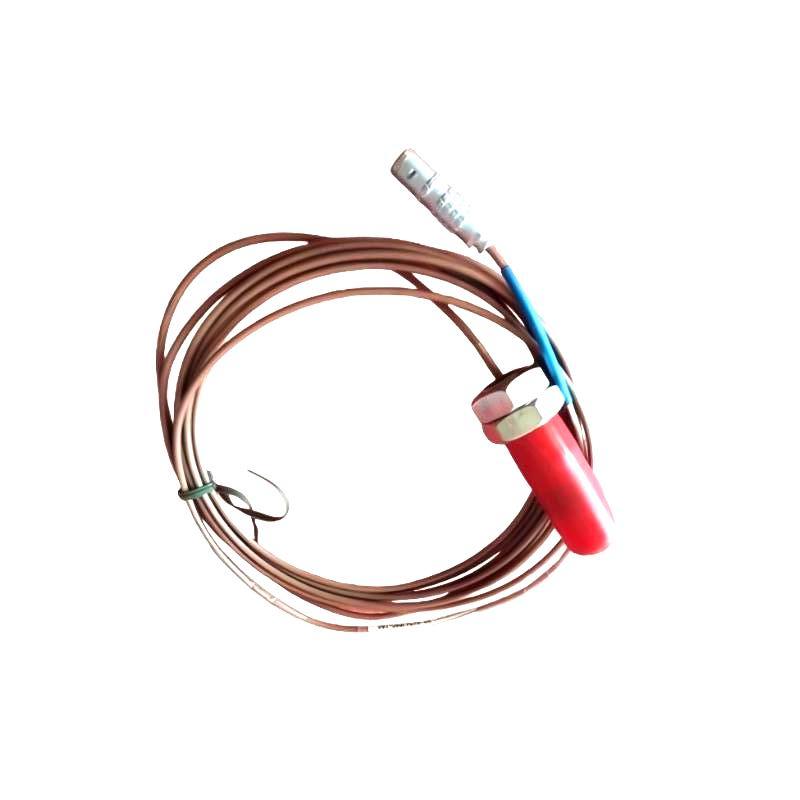

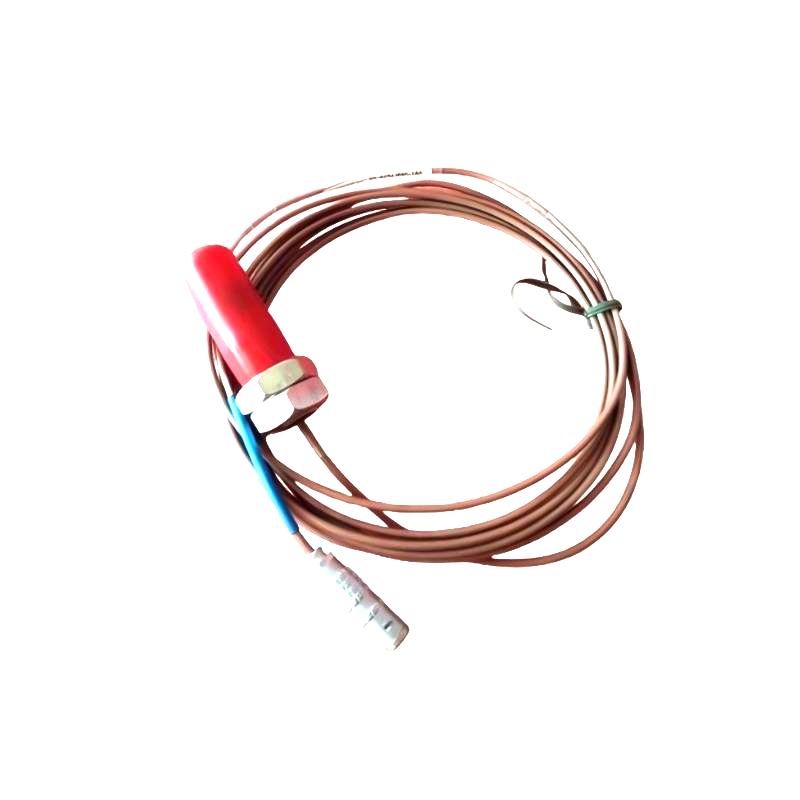

The Epro PR6424/104-100 16 mm Eddy Current Sensor is a precision industrial probe engineered for reliable turbomachinery monitoring. It delivers stable, high-resolution displacement signals that support predictive maintenance strategies and improve operational safety in critical rotating equipment.
Technical Specifications
Parameter
Specification
Product Model
Epro PR6424/104-100
Sensor Type
Eddy Current Proximity Sensor
Sensor Head Diameter
16 mm
Measurement Principle
Non-contact eddy current
Measurement Range
±2.0 mm (typical system dependent)
Sensitivity
4 V/mm (with compatible converter)
Target Material
Conductive ferromagnetic steel
Operating Temperature
-35°C to +180°C
Cable Length
Typically 4–10 m (system dependent)
Protection Rating
IP65 / IP67 (depending on configuration)
Weight
0.2 kg / 0.44 lb
Applications
The Epro PR6424/104-100 16 mm Eddy Current Sensor is designed for high-precision, non-contact monitoring of shaft vibration, axial position, and eccentricity in turbomachinery. It is widely used in condition monitoring systems where stable signal integrity and long-term measurement accuracy are essential for reliable machinery protection and predictive maintenance.
Typical applications include steam turbines, gas turbines, hydro turbines, compressors, pumps, and large rotating equipment across power generation, oil & gas, petrochemical, and heavy industrial environments.
Advantages
High-resolution eddy current sensing for precise dynamic displacement measurement
16 mm probe head optimized for compact and confined installation spaces
Non-contact operation eliminates mechanical wear and improves long-term stability
Strong resistance to high temperature and high vibration operating conditions
Compatible with Epro CON series signal converters (e.g., CON011 / CON021)
Stable linear output ensures reliable integration into protection systems
Designed for API 670-compliant turbomachinery monitoring architectures
Technical FAQs
Q1: What is the working principle of this sensor?
A: It uses eddy current technology to measure the distance between the probe tip and a conductive target without physical contact.
Q2: What is the main function of this sensor?
A: It measures shaft vibration, axial position, eccentricity, and dynamic displacement.
Q3: What systems is it compatible with?
A: It works with Epro/Emerson signal converters such as CON011, CON021, and similar modules.
Q4: Is this sensor suitable for turbines?
A: Yes, it is widely used in steam, gas, and hydro turbine monitoring systems.
Q5: Does it require physical contact with the shaft?
A: No, it is a non-contact measurement sensor.
Q6: What parameters can it measure?
A: Radial vibration, axial position, eccentricity, and displacement.
Q7: Can it operate in harsh environments?
A: Yes, it is designed for high temperature and high vibration industrial conditions.
Q8: Is calibration required?
A: Yes, system-level calibration with the signal converter is required.
Q9: What industries commonly use it?
A: Power generation, oil & gas, petrochemical, and heavy industry sectors.
Q10: Is it part of a complete monitoring system?
A: Yes, it is part of a full eddy current measurement chain including probe, cable, and converter.
