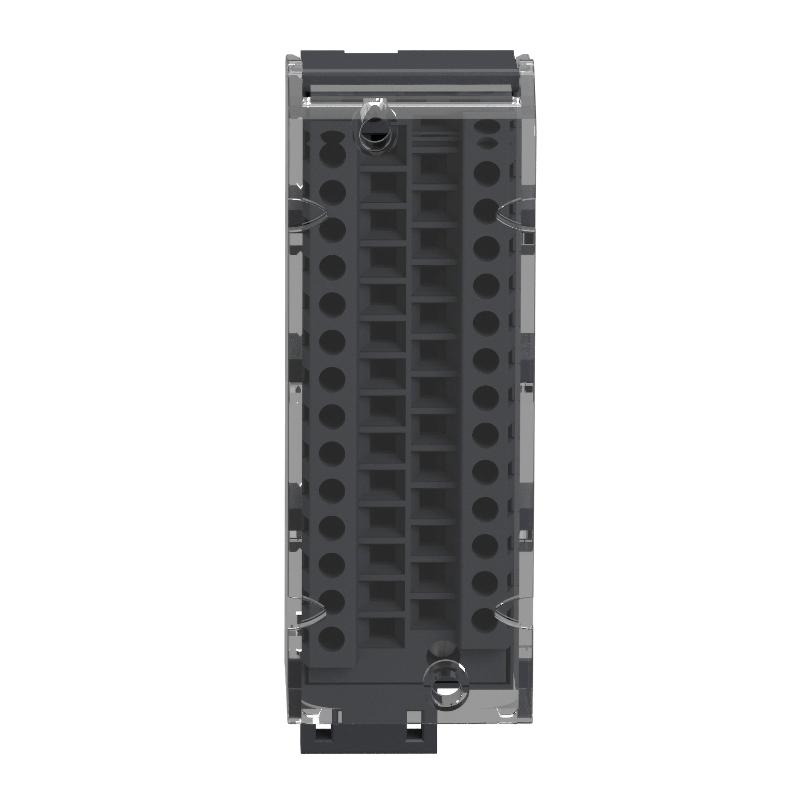

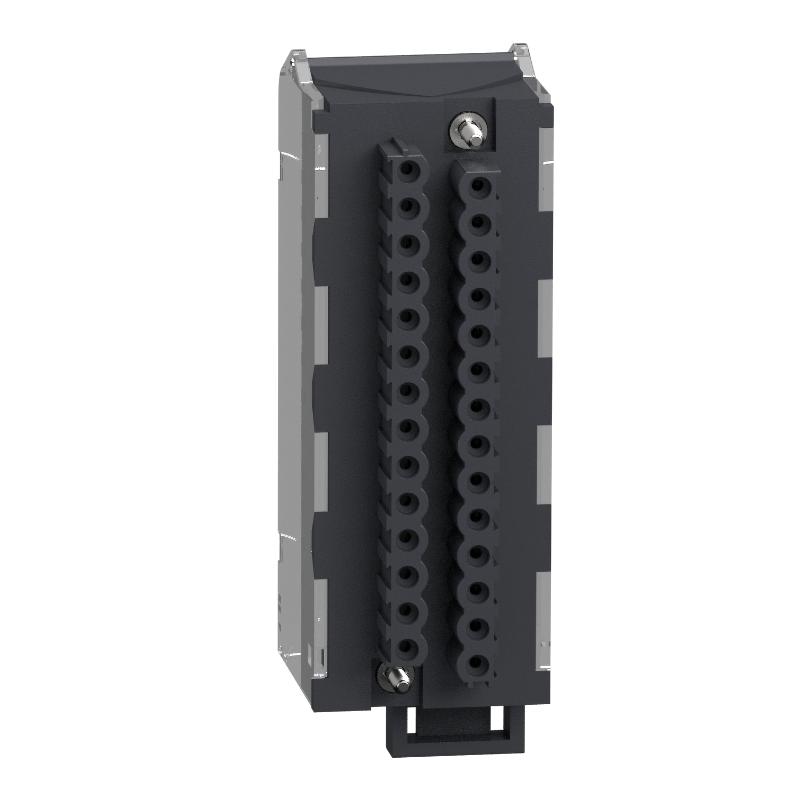

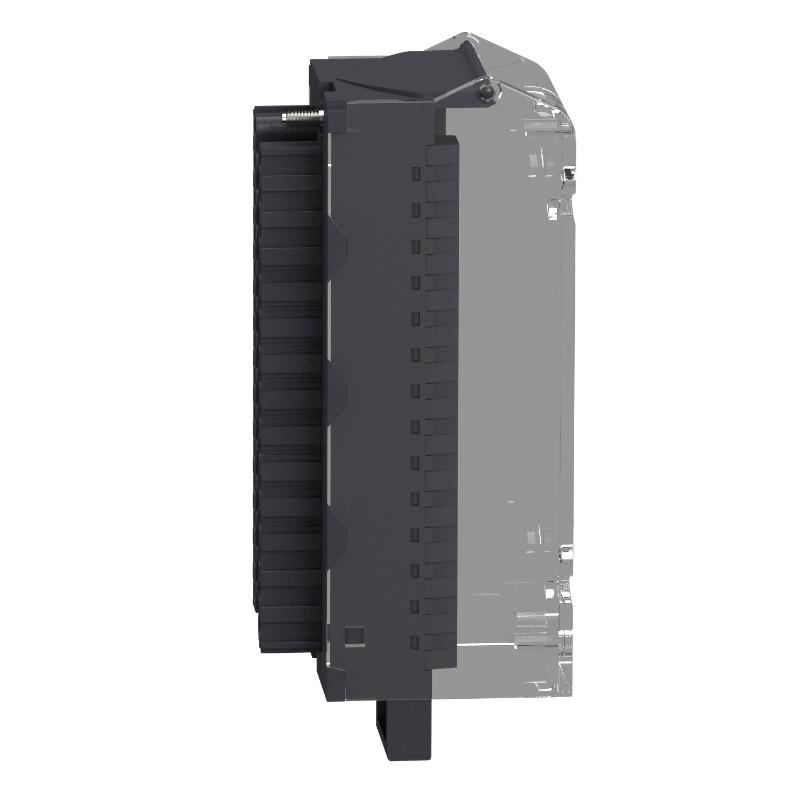

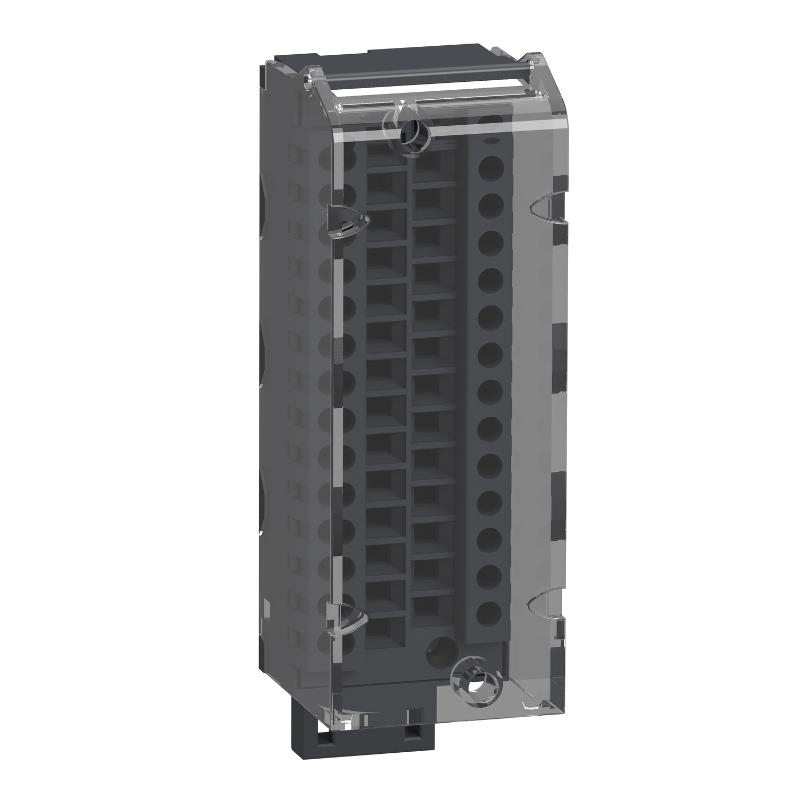

Schneider BMXFTB2800 28-pin Detachable Cage Terminal Block

Applications

• Modicon X80 I/O module field wiring termination in PLC systems
 Provides secure and organized termination of signal and power wiring for distributed automation modules in industrial control panels.

• Modicon M340 / M580 automation platform signal interface connection
 Used as a removable interface point between field wiring and PLC I/O modules, enabling fast maintenance and replacement.

• Industrial control cabinet wiring standardization
 Helps simplify wiring layout and improve clarity in complex control panels with multiple signal channels.

• Process automation system maintenance and module replacement
 Allows quick disconnection of field wiring without disturbing module installation during servicing or upgrades.

• Factory automation and machine control integration
 Supports stable electrical connections for sensors, actuators, and control signals in automated production systems.

• Distributed I/O system expansion in industrial plants
 Enables scalable wiring architecture in large automation networks with consistent terminal structure.

Key Advantages

• Removable cage clamp design for fast maintenance
 Allows entire terminal block removal without rewiring, reducing downtime during servicing.

• High wiring density with 28 connection points
 Supports compact and organized signal distribution for multi-channel I/O systems.

• Reliable cage clamp contact technology
 Ensures stable electrical connection with resistance to vibration and loosening.

• Compatible with Modicon X80 architecture
 Designed specifically for seamless integration with Schneider automation platforms.

• Compact industrial design for control cabinet efficiency
 Helps reduce panel space usage while maintaining structured wiring layout.

• Simplified module replacement workflow
 Enables quick swap of PLC I/O modules without disturbing field wiring integrity.

Technical FAQs

Q1: What is the main function of this terminal block?
A: It provides a removable wiring interface between field signals and PLC I/O modules.

Q2: Which systems is it designed for?
A: It is designed for Schneider Modicon X80 automation platforms, including M340 and M580 systems.

Q3: How many terminals does it have?
A: It has 28 cage clamp terminals.

Q4: What type of connection technology is used?
A: It uses cage clamp (spring pressure) technology for secure wiring.

Q5: Can it be removed without rewiring the system?
A: Yes, the block is designed to be detachable for maintenance and replacement.

Q6: What wire sizes are supported?
A: It typically supports industrial signal wiring in the 0.34 to 1 mm² range.

Q7: Is it suitable for vibration environments?
A: Yes, the cage clamp design maintains stable contact under industrial vibration.

Q8: Is it used in PLC systems?
A: Yes, it is commonly used in PLC I/O module wiring interfaces.

Q9: Does it reduce maintenance time?
A: Yes, it significantly reduces downtime during module replacement or servicing.

Q10: Is it suitable for large automation systems?
A: Yes, it is widely used in medium to large-scale industrial control systems.
