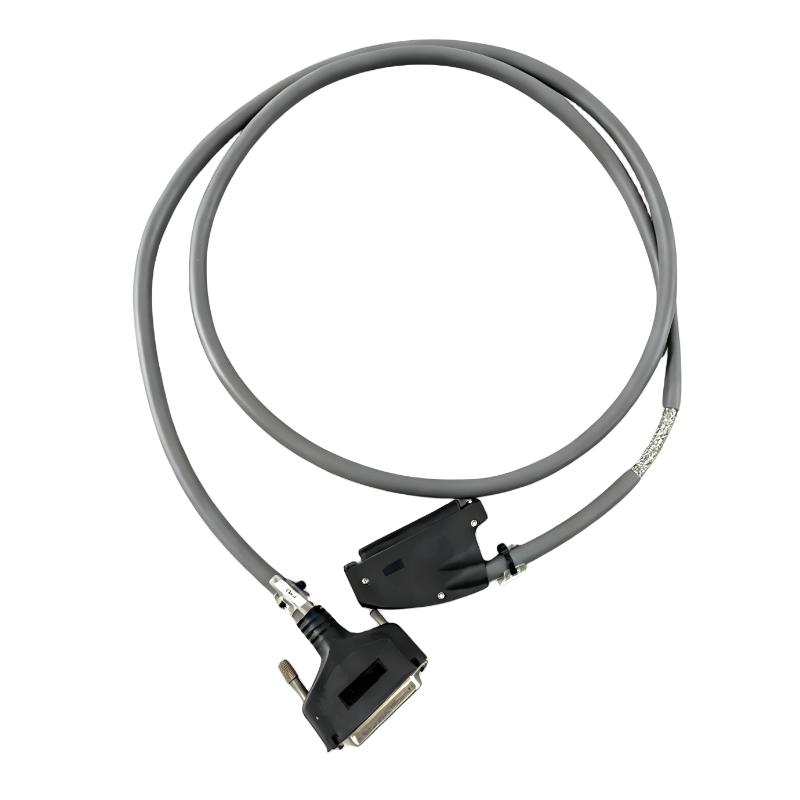

Schneider BMXFCA152 Cable Assembly

Applications

• Modicon X80 I/O module signal connection in PLC systems
 Provides a pre-assembled wiring interface between field I/O modules and terminal or interface sub-bases in industrial automation cabinets.

• Modicon M340 and M580 distributed automation architectures
 Used to connect analog input modules to external connection bases for stable signal transmission and simplified wiring layout.

• Industrial control cabinet wiring standardization
 Helps reduce wiring errors by providing a factory-assembled, ready-to-install cable solution for multi-channel signal routing.

• Process automation system maintenance and module replacement
 Enables quick disconnection and reconnection of I/O modules without rewiring field instruments.

• Factory automation and machine control systems
 Supports reliable signal transfer between sensors, controllers, and interface terminals in production environments.

• Large-scale distributed I/O expansion systems
 Facilitates structured cabling in complex automation networks with multiple analog signal channels.

Key Advantages

• Pre-assembled industrial-grade cordset design
 Reduces installation time and minimizes wiring errors during system commissioning.

• Stable multi-pin signal transmission for PLC I/O systems
 Ensures reliable analog and digital signal integrity across industrial environments.

• Compatible with Modicon X80 architecture
 Designed specifically for Schneider Electric PLC platforms including M340 and M580 systems.

• Robust shielding for industrial electrical noise resistance
 Maintains stable signal performance in high-interference environments.

• Simplifies maintenance and module replacement
 Allows fast disconnection of I/O modules without disturbing field wiring.

• Factory-controlled quality for consistent connection reliability
 Improves long-term stability compared to manually wired solutions.

Technical FAQs

Q1: What is the main function of this cable assembly?
A: It connects Modicon X80 I/O modules to interface sub-bases for signal transmission.

Q2: What systems is it compatible with?
A: It is used with Schneider Modicon M340 and M580 automation platforms.

Q3: What type of signals does it support?
A: It supports analog and digital I/O module signal transmission depending on configuration.

Q4: What is the cable length?
A: The cable length is 1.5 meters.

Q5: What connectors are used?
A: It typically uses a SUB-D 25 connector on one side and a 40-pin module connector on the other.

Q6: Is it pre-wired from factory?
A: Yes, it is a pre-assembled cordset designed for plug-and-play installation.

Q7: Can it reduce installation time?
A: Yes, it significantly reduces wiring and commissioning time.

Q8: Is it suitable for industrial environments?
A: Yes, it is designed for industrial automation applications with electrical noise resistance.

Q9: Can it be replaced easily during maintenance?
A: Yes, it supports quick disconnection and reconnection of I/O modules.

Q10: Is it used in OEM machinery?
A: Yes, it is widely used in OEM automation systems and control cabinets.
